Com-Power LI-3P-232 – 3 Phase LISN, 32 Amps, 9 kHz to 30 MHz

• Frequency Range: 9 kHz to 30 MHz
• Current Ratings of 16, 32, 63, and 100 Amps
• Fully Compliant with CISPR 16-1-2(CE)and ANSI C63.4(FCC)
• Remote Switching of Line Under Test
• Three-Year Warranty

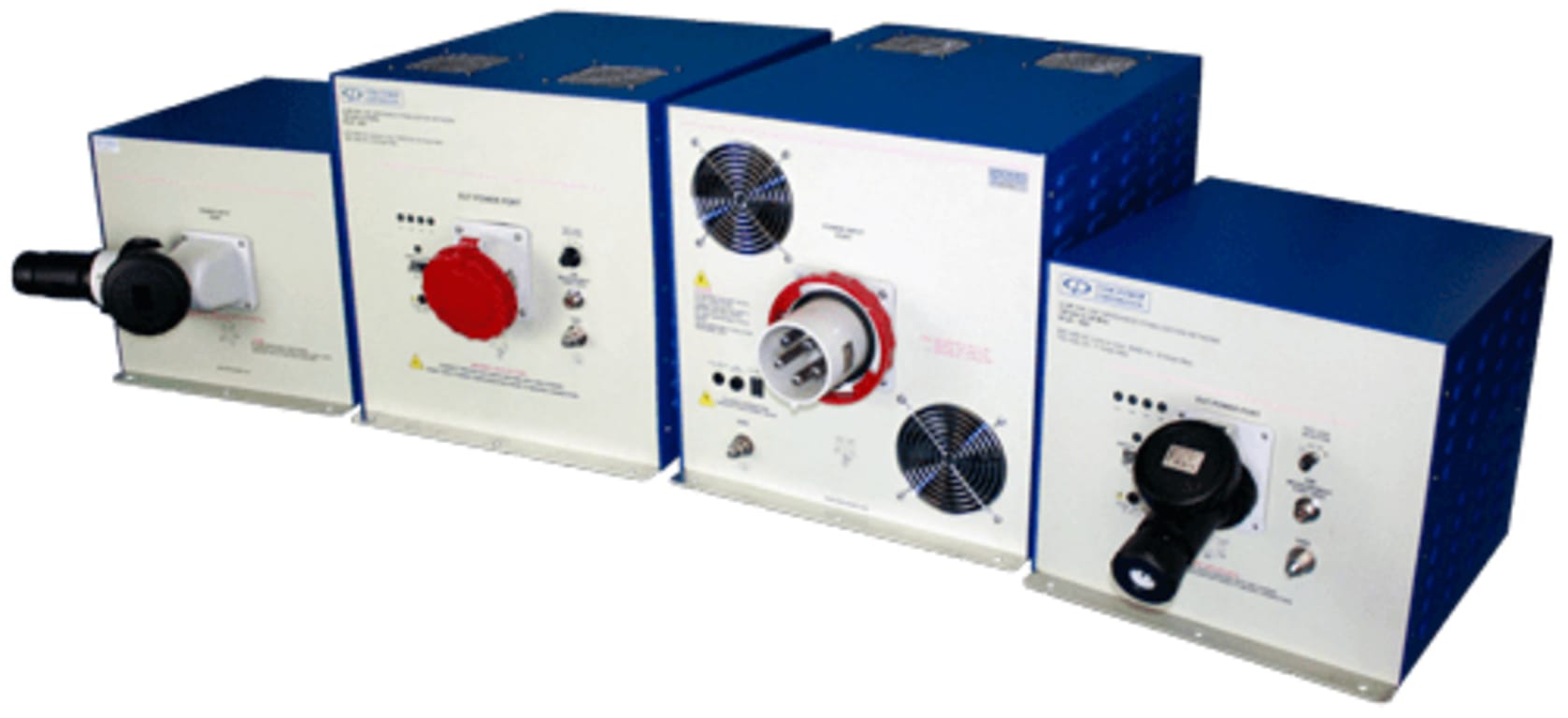

The LI-3P-2x Series consists of four separate models of four-conductor, 50Ω, 50/250 μH +5Ω Line Impedance Stabilization Networks (LISNs); also known as Artificial Mains V-Networks (V-AMNs). The primary differences between the four models are their respective current ratings:

• LI-3P-216 16 Amps (per line, continuous)
• LI-3P-232 32 Amps (per line, continuous)
• LI-3P-263 63 Amps (per line, continuous)
• LI-3P-2100 100 Amps (per line, continuous)

These LISNs provide the necessary measurement platform for performing power line conducted emissions compliance testing per most worldwide commercial EMI/EMC requirements, such as FCC (U.S.), CE (Europe), AS/NZS (Australia/New Zealand), VCCI (Japan), Industry Canada, etc.

Each LISN is individually calibrated in compliance with the relevant requirements of CISPR 16-1-2 and ANSI C63.4. Impedance, Phase, Isolation, and Insertion Loss data are supplied with each unit, along with the certificate of calibration.

Recognized ISO 17025 accredited calibration is also available upon request.
