Com-Power LI-550C – Line Impedance Stabilization Network, LISN pair, 5 uH, 100 kHz to 108 MHz, 50 Amps, CISPR 25

• Fully compliant with CISPR 25 / CISPR 16-1-2
• Frequency range of 100 kHz to 108 MHz
• Individual Calibration Included
• “Air-core” inductors to prevent saturation
• Three-Year Warranty

The LI-550A Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-550A is compliant with both CISPR 25 and CISPR 16-1-2.

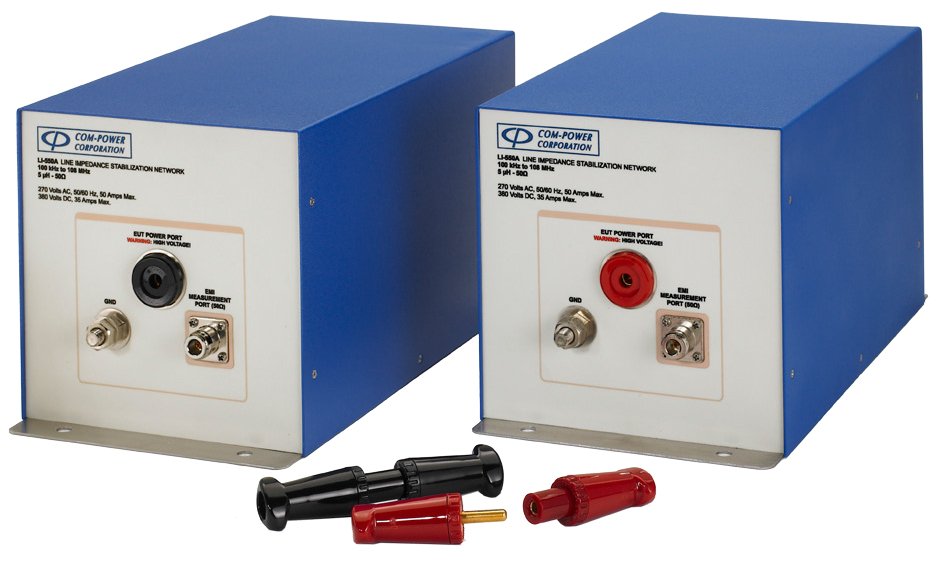

The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results. The LI-550A includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single-phase, dual-phase or DC power system. A second LI-550A pair can be used to accommodate 3-phase power systems (Wye or Delta configurations).

The LI-550A is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included. This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-550A is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current.

Transient Protection

Use of a Transient Limiter for impedance matching, reduction of out-of-band emissions and transient protection for your measurement instrument is highly recommended and available from Com-Power.

Calibration

All LI-550A LISNs are individually calibrated in compliance with the relevant requirements of CISPR 25 and CISPR 16-1-2. Impedance, Phase, Isolation, and Insertion Loss data is supplied with each unit, along with the calibration certificate.
