Com-Power TT-600A – Turntable for EMC Testing, 6-ft (1.8m) Diameter, 1,100 lb. Capacity, Automated
19 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Turn-table, 6 ft. (1.8 m) Diameter, 1100 lb, Automated
- EMC testing fully automated turntable
- Can be controlled through the Com-Power AMTTC-300 controller
- Manual control capability via toggle switch on the motor box
- Table diameter: 6-feet (1.8 meters); Table height: 9-inches (23 cm)
- Load rating: 1100 lbs. (455 kg)
- Turntable RPM: 2.1
- Remote switch: reversing drum
- Power: 115VAC, 60 Hz
- 9.8-Ft (3 meters) extension cable
- Table weight: 172 lbs. (78 kg)
Guarantee Safe and Secure Payment Checkout
Description
Com-Power TT-600A
- EMC testing fully automated turntable
- Can be controlled through the Com-Power AMTTC-300 controller
- Manual control capability via toggle switch on the motor box
- Table diameter: 6-feet (1.8 meters); Table height: 9-inches (23 cm)
- Load rating: 1100 lbs. (455 kg)
Turntable for EMC Testing, 6-ft (1.8m) Diameter, 1,100 lb. Capacity, Automated

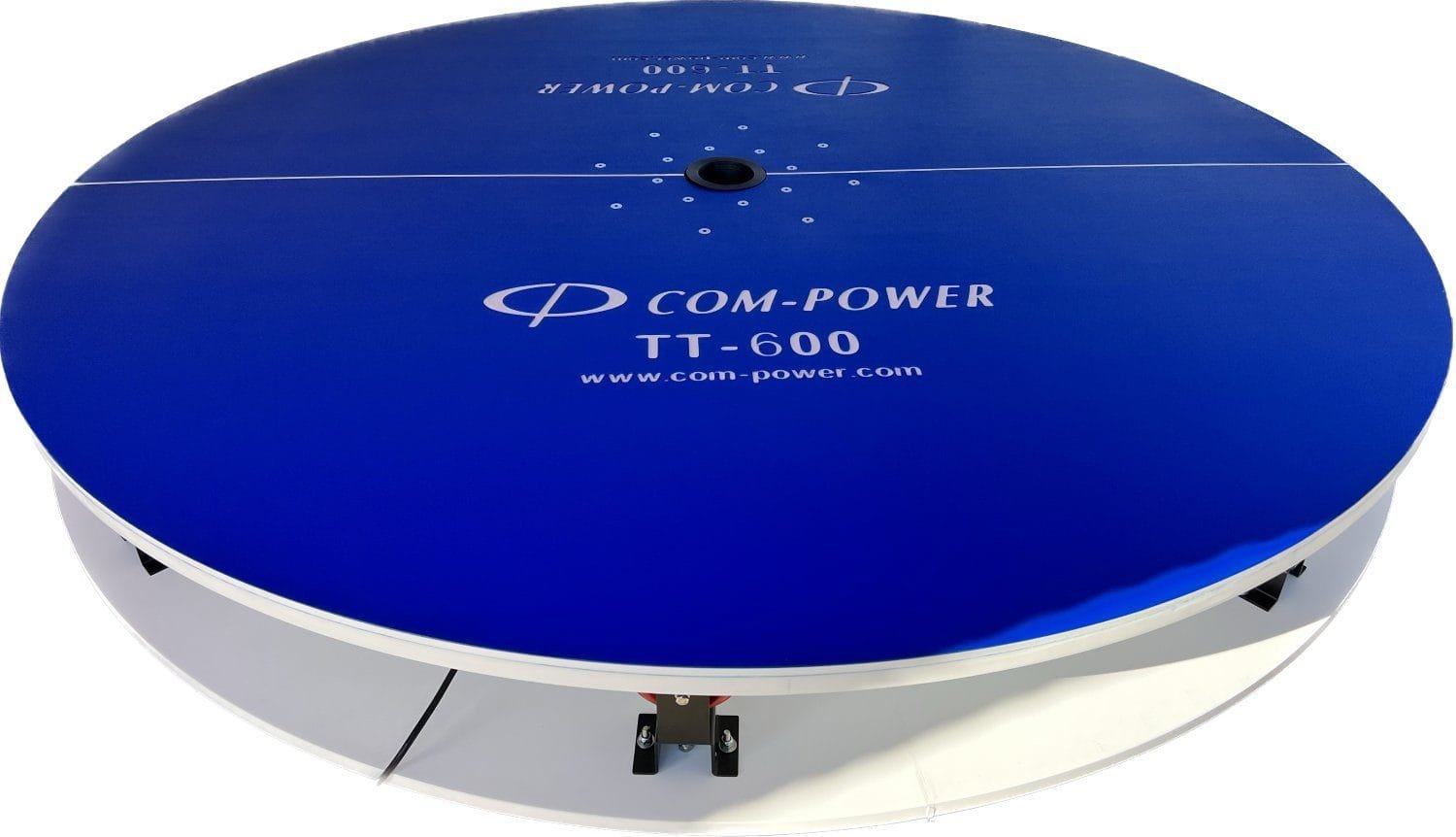

The TT-600A is a fully automated turntable that is used for rotating equipment under test (EUT) during EMC testing. The TT-600A can be controlled through the Com-Power AMTTC-300 controller. Manual control is possible via the toggle switch on the table’s motor box. The turntable is constructed of non-reflective wood material.
The TT-400 and TT-600 motorized wooden turntables are low profile, above ground circular testing platforms used for rotating equipment under test (EUT) during commercial EMC testing. The equipment is rotated to identify the position or angle at which the EUT radiates the maximum electromagnetic interference.
The turntable can support and rotate desktop or floor standing equipment. It can be rotated clockwise or counterclockwise using the remote switch. The rotation drive consists of a motor and gear reduction drive.
Turntable Comparison Guide
| TT-400 | TT-400A | TT-600 | TT-600A | |
| Table Diameter | 4 feet (1.2 m) | 4 feet (1.2 m) | 6 feet (1.8 m) | 6 feet (1.8 m) |
| Table Height | 9 inches (23cm) | 9 inches (23cm) | 9 inches (23cm) | 9 inches (23cm) |
| Load Rating | 1000 lbs. | 1100 lbs. | 1000 lbs. | 1100 lbs. |
| Turntable RPM | 2.1 | Variable | 1.4 | Variable |
| Control | Manual | Automated | Manual | Automated |
Product General Attributes | |
|---|---|
| Shipping Weight | 172 LBS |
You must be logged in to post a review.
| Weight | 172 lbs |
|---|
