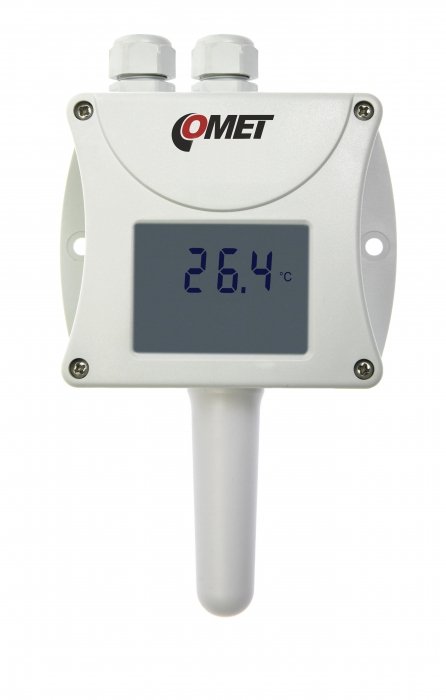

Comet T0410 – Temperature Transmitter with RS485 Output

• Ambient temperature transmitter
• Outdoor and indoor use
• Temperature transmitter is built in a durable watertight case
• Degrees Celsius and Fahrenheit are user selectable
• Large dual line LCD is an advantage
• Display is possible to switch off
• Computerized design ensures maximum long term stability and fails indication

Programmable transmitters and transducers with RS485 galvanic isolated serial interface are designed to measure temperature, relative humidity, and barometric pressure of air in a non-aggressive environment. Transmitters and transducers are available in wall mount, duct-mount, and bar versions or with a probe on a cable. For measuring temperature and relative humidity of compressed air is used type TxxxxP.

Digital conception with microprocessor allows determining the other computed humidity values, like dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy. Measured and calculated values are displayed on a two-line LCD display. Devices support Modbus RTU protocol, protocol compatible with standard Advantech-ADAM, ARION protocol, and communication with HWg-Poseidon devices. For a set of all parameters, you can use TSensor software.

Durable plastic case from ABS contains electronic and connection terminals. For easy connection/disconnection of the output, the cable is used TxxxxL version with Lumberg connector (IP67) instead of a cable gland.

Applications

• Server Rooms Monitoring
• Museums, archives, galleries
• Building HVAC Management
• Factories and Manufacturing
• Warehouses
• Air-Conditioned Room
• Home Automation

• Comet Database
• Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Transmitters and Regulators.
• Sensor RS485/232 Utility
• allows communication of sensors with RS485/RS232 output and sending data to Comet Database.
• T-Sensor Software
• Free configuration utility for Comet Transmitters and Regulators.
• Sensor Reader Software
• Basic data acquisition utility for Comet Transmitters and Regulators. Software is free for download.
