Compliance HT-2000P V2 – Hipot Tester, 0-2000 VAC @ 20 mA
27 people are viewing this product right now
Original price was: $1,639.00.$1,596.42Current price is: $1,596.42.
Shipping calculated at checkout.
Estimated delivery:3 days
Hipot Tester, 0-2000Vac @ 20mA
- AC Output: 0-2000V Leakage current up to 20 mA
- DC Output: 0-2800V Leakage Current up to 5 mA
- Logic controlled, one button test, easy to setup, LED’s indicate test progress. Upon failure, buzzer sounds, and testing is terminated
- Output voltage, leakage current limit, voltage ramp-up time, and test duration are controlled from the rear panel
- Ground continuity test is defeatable for testing of two wire products
- NEMA 5-15R receptacle provided on front panel for high voltage output
- Long life TEST and RESET button
- Supports PLC interface for complete automated testing with the RI option
- Calibration certificate included
- One year warranty
Guarantee Safe and Secure Payment Checkout
Description
Compliance HT-2000P V2
- AC Output: 0-2000V Leakage current up to 20 mA
- DC Output: 0-2800V Leakage Current up to 5 mA
- Logic controlled, one button test, easy to setup, LED’s indicate test progress. Upon failure, buzzer sounds, and testing is terminated

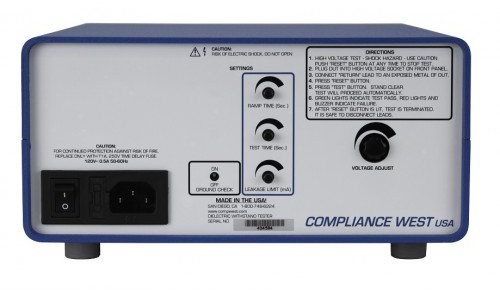

- Output voltage, leakage current limit, voltage ramp-up time, and test duration are controlled from the rear panel
- Ground continuity test is defeatable for testing of two wire products
Hipot Tester, 0-2000 VAC @ 20 mA
The HT-P V2 series Hipot Testers emerges from the redesigned HT-P series, offering new long life buttons, robust design, lighter, and cleaner appearance. Performs the Ground Continuity Test with a fix Pass/Fail point of 2.93Ω, 0-2000V AC Hipot Test, Neutral/Hot to Ground Leakage current test up to 20mA DC. Easy to use and connect. Ships complete with cables, manual, Calibration Certificate, and Calibration Data Log Copy.
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | AC |
| Max AC Test Voltage | 2000 V (2 kV) |
| Programmable (hipot) | No |
| Insulation Resistance Test | No |
| Connection Type | Nema Socket |
Product General Attributes | |
| Unique Features | Maximum Leakage Current: 20mA AC |
| Warranty | 1 YEARS |
| Interfaces I/O | Other |
| Product Weight | 11 LBS |
| Product Height | 4.75 IN |
| Product Length | 10 IN |
| Product Width | 9.25 IN |
| Shipping Weight | 12.65 LBS |
| Data Logging | No |
| Calibration Included | NIST Calibration |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 11 lbs |
|---|---|
| Dimensions | 10 × 9.25 × 4.75 in |
