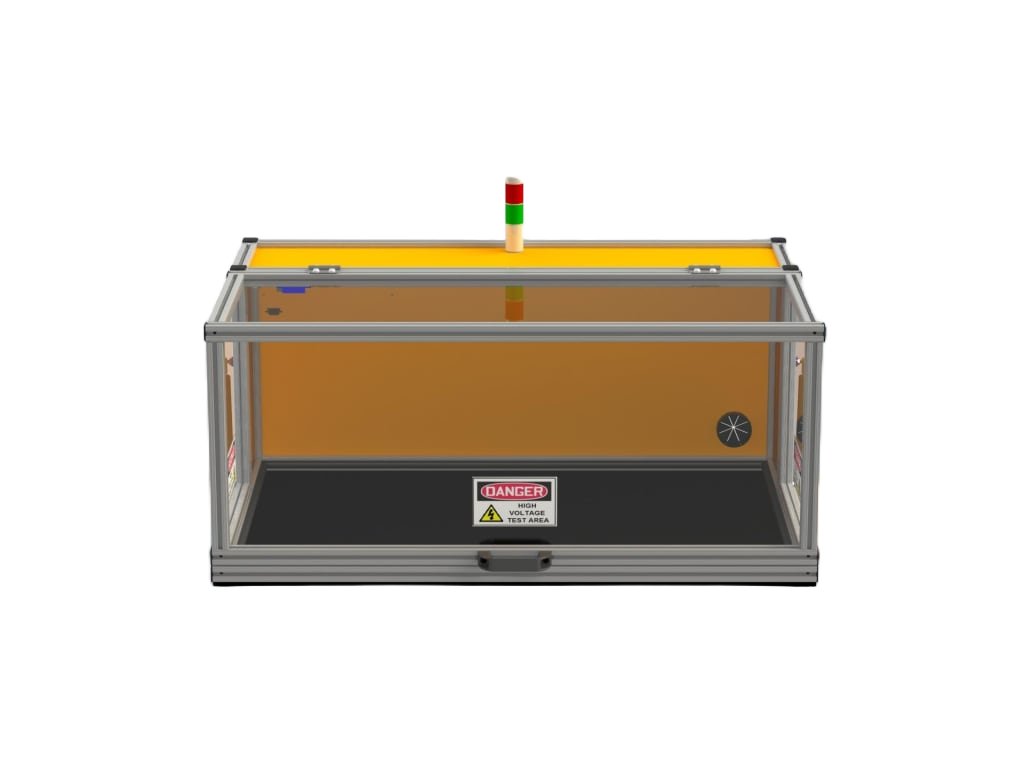

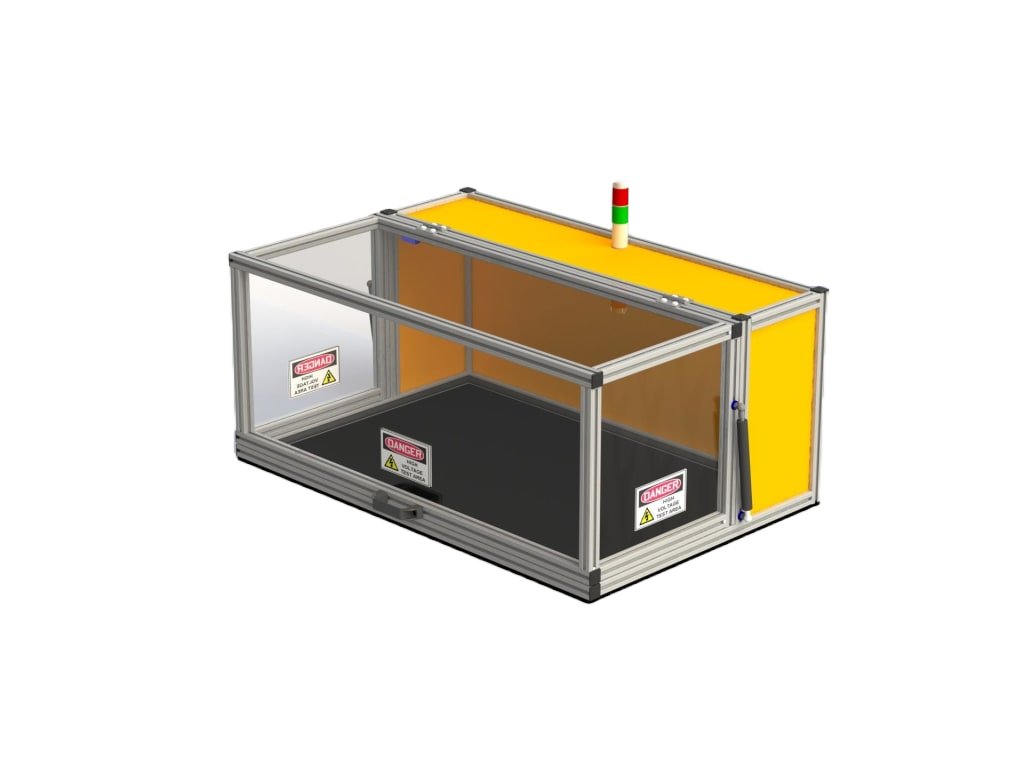

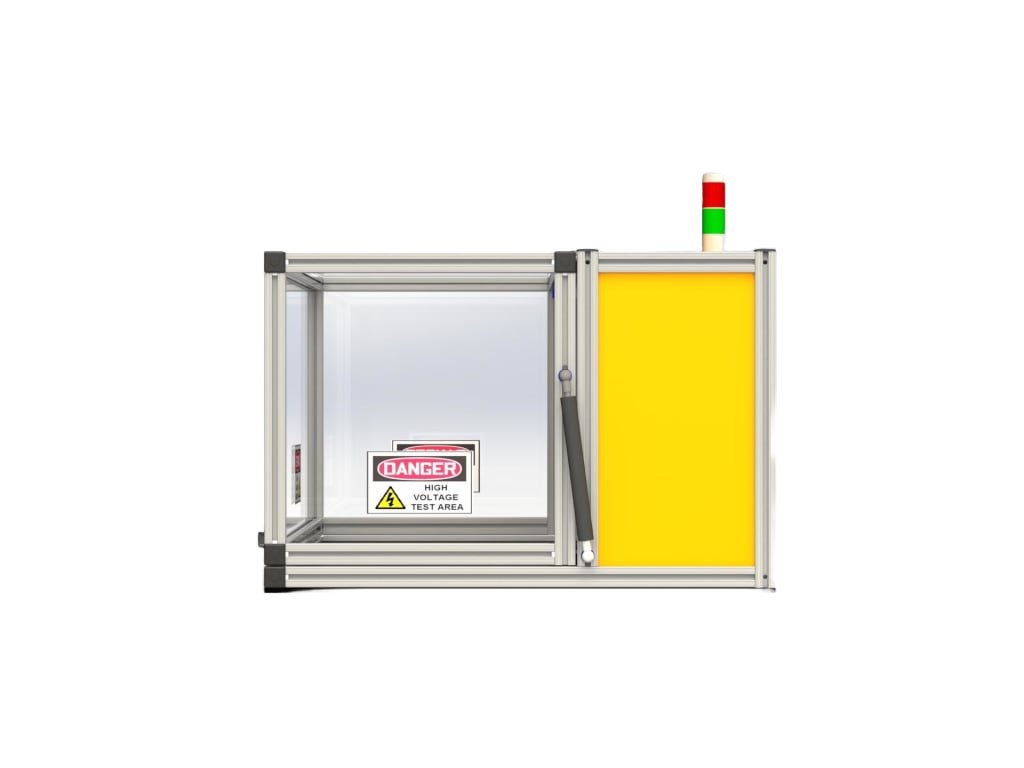

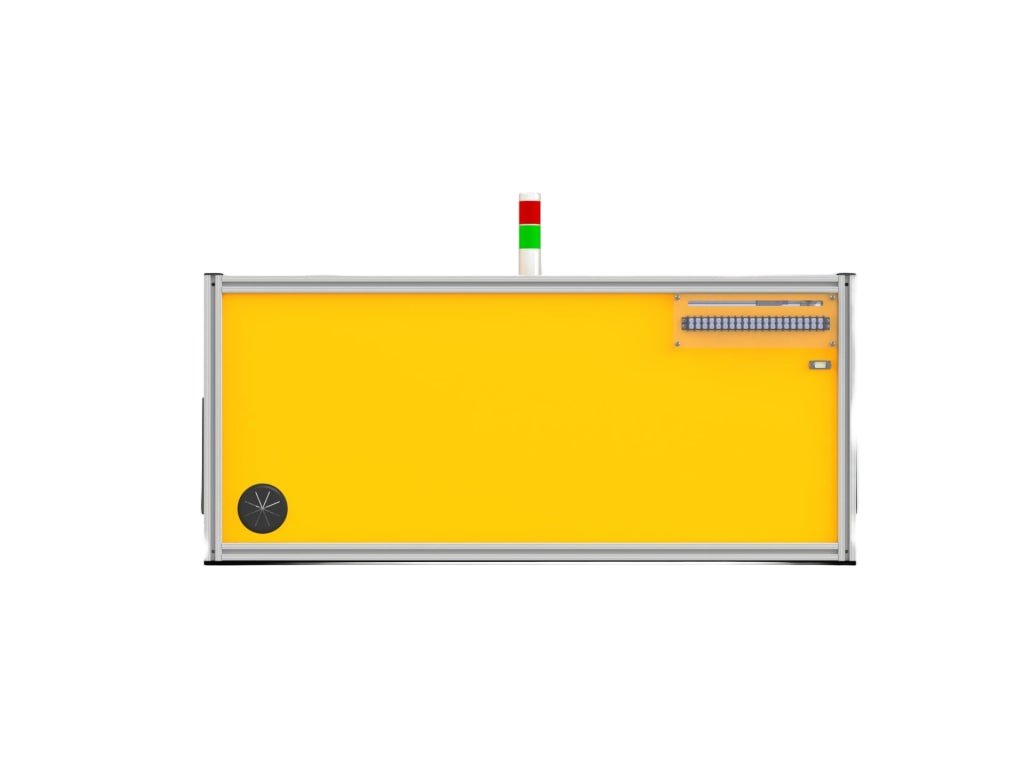

Cortek SE-3624 – Hipot Electrical Safety Enclosure, OD: 36″ W x 24″ D x 16″ H

• Outside Dimensions: 36″ wide x 24″ deep x 16″ high
• Inside Dimensions: 33″ wide x 21″ deep x 14.625″ high
• Weight: 55 lbs.
• Tester compatibility: Most HiPot Testers are able to hook up to enclosure

The SE 3624 is our mid-size high-voltage enclosure and comes standard with a magnetic interlock switch to help ensure the safety of the operator. The Cortek Test Solutions unit has been used to test cable assemblies, LED lights, and larger medical devices along with HiPot testers and electrical safety test systems.

Key Features:

• Aluminum frame construction
• Acrylic Cover
• Magnetic Interlock Safety Switch
• Chassis Ground Wire Connection to be hooked up by customer
• Yellow Safety Panels
• 20 Position Terminal Block with Removeable Cover
• 9 pin D-Sub Connector
• 2″ Flexible Grommet for pass through cables
• Large-Wide opening for ease of loading and unloading UUT
• [3] High voltage Test Area Stickers
• Custom Sizes Available. Easily Adaptable to smaller or larger non-standard applications

Options:

• Safety Light Tower – Red/Green, Red/Yellow/Green
• Start Stop Switch Buttons
• E-Stop
• Extra Grommets – 1, 2, 3, 4
• Insulation Mat
• Instrument Shelf – 1,2
