Desco 19240 – Portable Wrist Strap Tester (Battery-Powered)

• Tests path to ground and presence of an inline 1 megaohm resistor in the wrist strap
• Determines that the operator’s personal grounding device is functioning correctly
• Powered by 9V battery
• NIST calibrated with certificate included
• Made in the USA

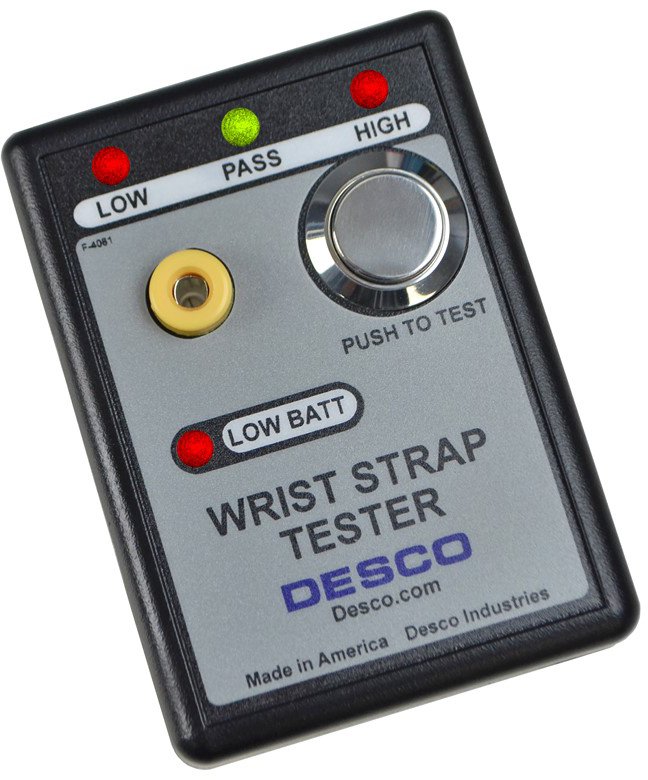

The Desco 19240 Portable Wrist Strap Tester is a battery-operated “on demand” wrist strap tester. When the wearer of a wrist strap plugs in their coil cord and touches the metallic surface of the Wrist Strap Tester, a path for current flow is completed from the wearer’s skin, through the wrist strap. This action will cause the green “test good” LED to illuminate as long as the resistance of the circuit path is between 750 kilohms and 10 megohms.

Per ANSI/ESD S20.20, test equipment is required to enact the Compliance Verification Plan Requirement. Test equipment shall be selected to make measurements of appropriate properties of the technical requirements that are incorporated into the ESD program plan. The Wrist Strap Tester can be used to fulfill ANSI/ESD S1.1, “The wrist strap system should be tested daily to ensure proper electrical value” (Annex A3). Being a portable battery-powered tool, it is perfect for small labs or for a supervisor to spot check workers and/or ensure compliance.

Installation

Open the tester’s battery compartment and install the included 9V battery. Use the included hook and loop fastener strip to mount the tester to a wall or worksurface.

NOTE: The low battery indicator flashes briefly every time the unit is used. Replace the battery once the indicator becomes constant during testing.
