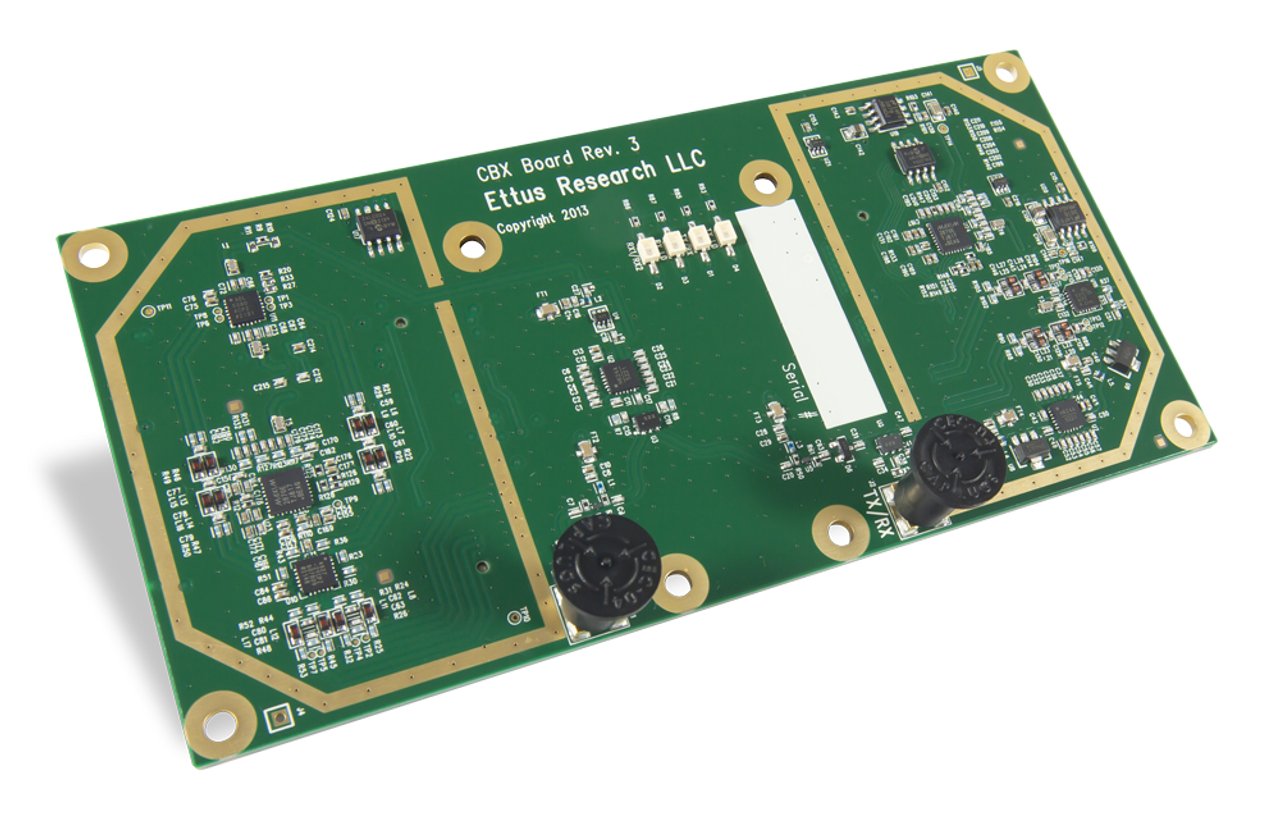

Digilent Ettus CBX – Daughterboard for Ettus USRP N210, 1200-6000 MHz Rx/Tx, 40 MHz

Name: Digilent Ettus CBX - Daughterboard for Ettus USRP N210, 1200-6000 MHz Rx/Tx, 40 MHz - NESTES Instruments
SKU: Digilent Ettus CBX
Price: 1085.70 USD
Availability: InStock

Brand:

Digilent

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

31 people are viewing this product right now

Shipping calculated at checkout.

Add to quote

Estimated delivery:3 days

CBX 1200 USRP Daughterboard

Two quadrature frontends (1 transmit, 1 receive)
Independent receive and transmit LO’s and synthesizers
Frequency range: 1.2 GHz to 6 GHz
Bandwidth: 40 MHz
Transmit antennas: TX/RX, Receive antennas: TX/RX or RX2
Full-duplex operation on different transmit and receive frequencies
Can be set to use Integer-N tuning for better spur performance
Can be used in low IF mode

SKU: Digilent Ettus CBX Tags: FPGA, Prototyping Categories: FPGA

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

Digilent Ettus CBX

Two quadrature frontends (1 transmit, 1 receive)
Independent receive and transmit LO’s and synthesizers
Frequency range: 1.2 GHz to 6 GHz
Bandwidth: 40 MHz
Transmit antennas: TX/RX, Receive antennas: TX/RX or RX2

Daughterboard for Ettus USRP N210, 1200-6000 MHz Rx/Tx, 40 MHz

The Digilent Ettus CBX is a full-duplex, wideband transceiver that covers a frequency band from 1.2 GHz to 6 GHz with an instantaneous bandwidth of 40 MHz. The CBX can serve a wide variety of application areas, including Wi-Fi research, cellular base stations, cognitive radio research, and RADAR.

The local oscillators for the receive and transmit chains operate independently, allowing multi-frequency operation. The references for the local-oscillators are derived from the USRP master-clock, which permits coherent operation when combined with MIMO-capable USRP models such as the USRP N200 or USRP N210.
