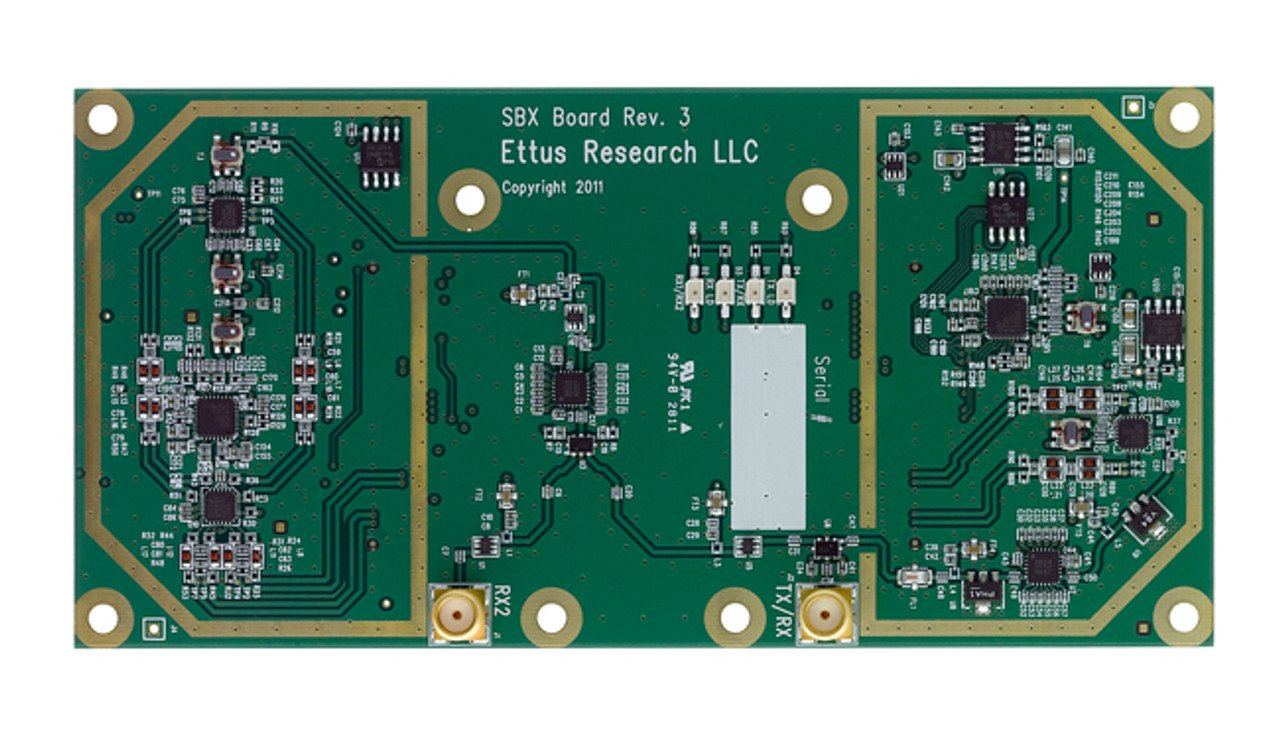

Digilent Ettus SBX – Daughterboard for Ettus USRP N210, 400-4400 MHz Rx/Tx, 40 MHz

• Two quadrature frontends (1 transmit, 1 receive)
• Independent receive and transmit LO’s and synthesizers
• Frequency range: 400 MHz – 4.4 GHz
• Bandwidth: 40 MHz
• Transmit antennas: TX/RX, Receive antennas: TX/RX or RX2

The Digilent Ettus SBX is a wide bandwidth transceiver that provides up to 100 mW of output power, and a typical noise figure of 5 dB. The local oscillators for the receive and transmit chains operate independently, which allows dual-band operation. The SBX is MIMO capable and provides 40 MHz of bandwidth. The SBX is ideal for applications requiring access to a variety of bands in the 400 MHz-4400 MHz range. Example application areas include Wi-Fi, WiMAX, S-band transceivers, and 2.4 GHz ISM band transceivers.
