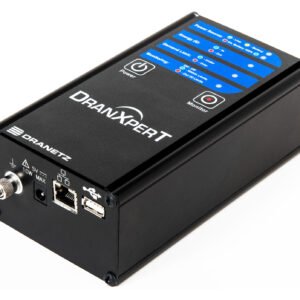

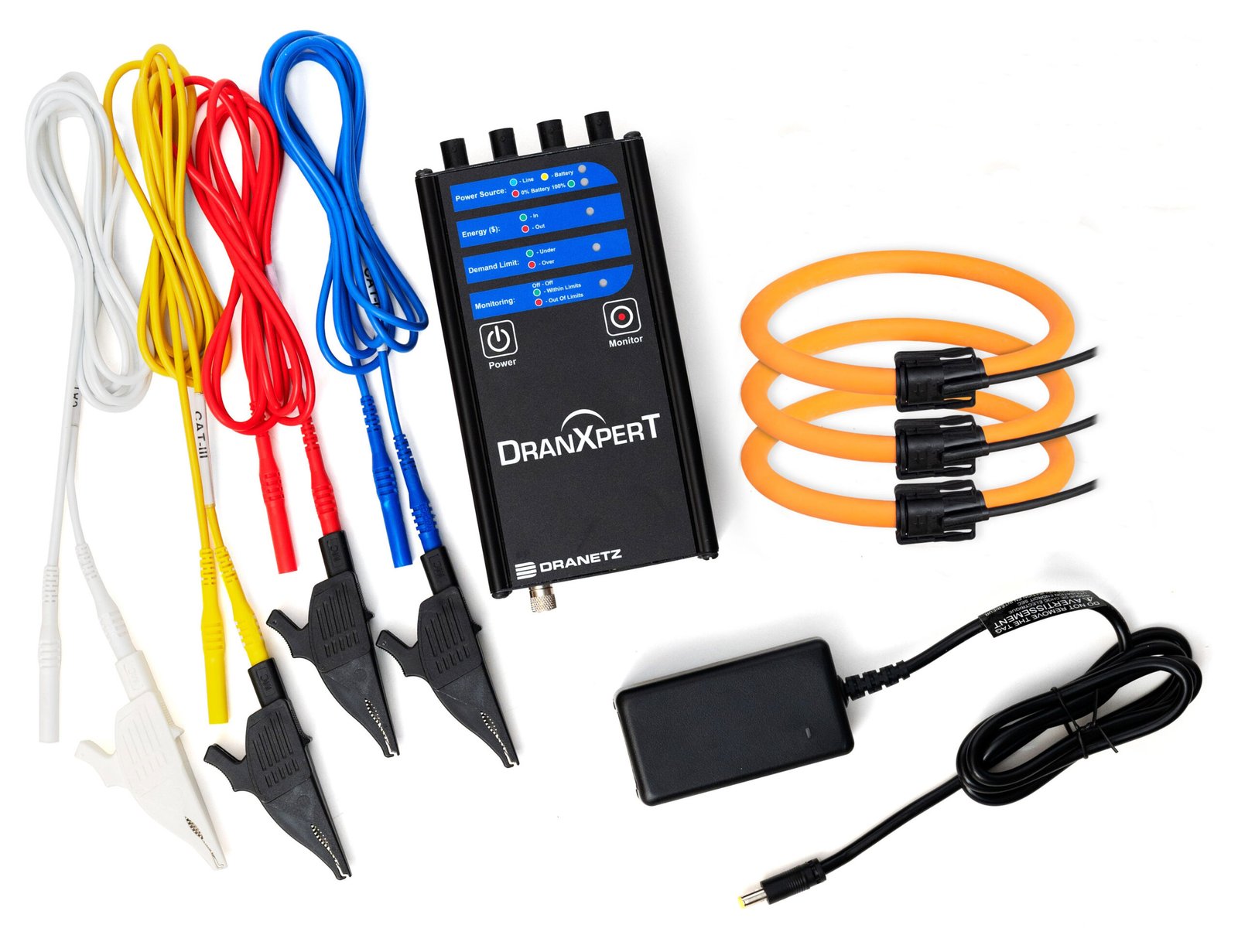

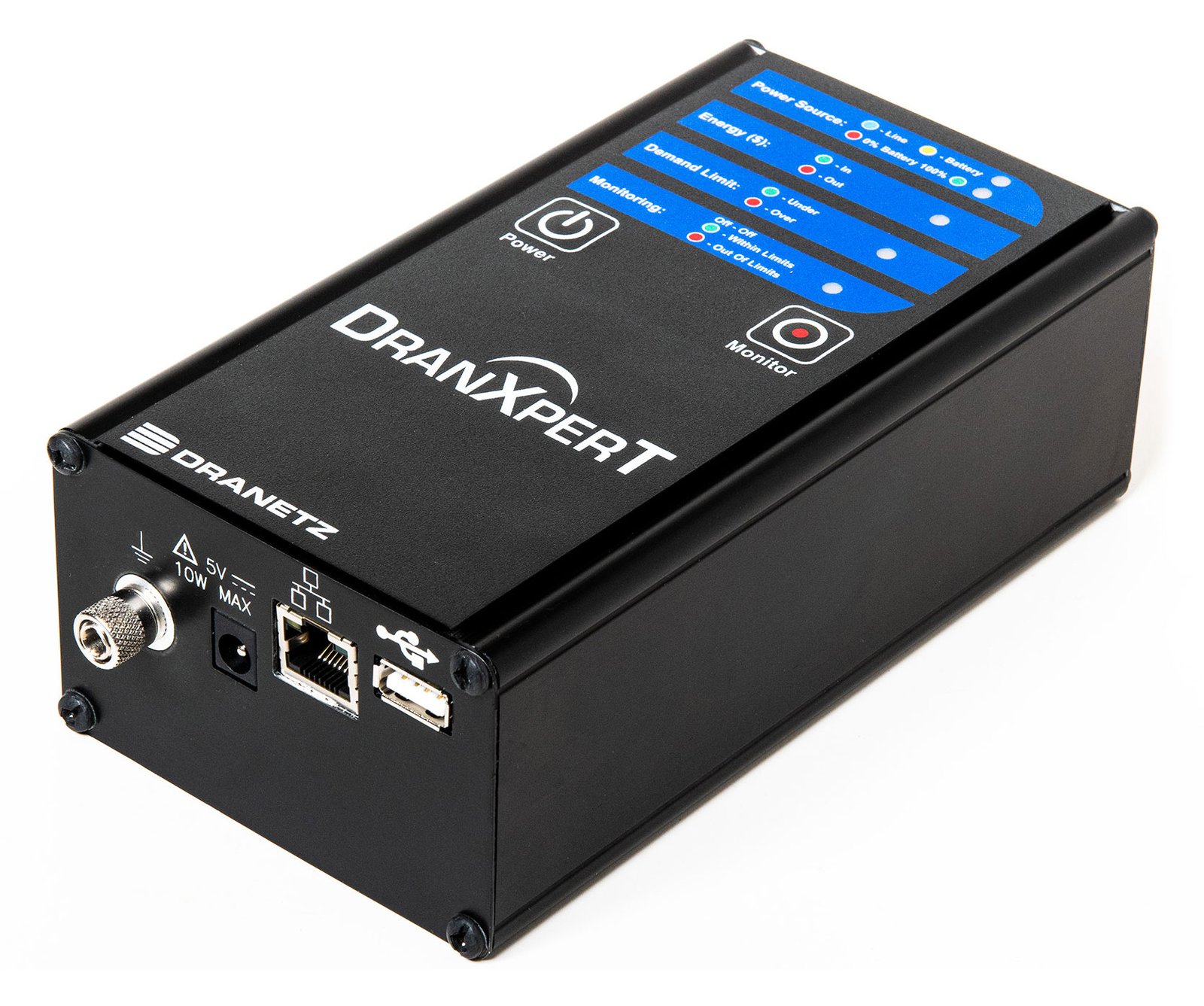

Dranetz DranXpert – DranXpert Portable Meter with or without Sensors, Flex or Hinged CT, Voltage Leads/Clips

The Dranetz DranXperT is three products in one – a portable, low cost, power logger, sensor logger and PQ detector. It is an accurate, 3 phase, bi-directional power/energy logger – direction of power flow is also measured for use in DER/alternative energy applications. The Dranetz DranXperT measures all of the power parameters that you expect, such as W, VA, VAR, PF, Demand and Energy. DranXperT measurements include PQ monitoring capabilities. PQ problems, such as sags/dips, swells, and interruptions can be detected with IEC 61000-4-30 1/2 cycle resolution and harmonics are computed using the techniques of IEEE 519-2014/IEC 61000-4-7. With the available sensor option, DranXperT can log any 0-10V or 4-20ma environmental or other sensors, and alarms with digital/analog inputs in parallel with the power measurements.

DranXperT includes free, unlicensed Dran-View XP software, a web browser user interface, and strong remote communications for use in virtually any portable, or temporary power monitoring application. Connect your computer directly to DranXperT using the supplied ethernet cable or to any local/private/corporate network, and even the internet for remote communications. All that you need is a web browser on any PC, tablet, or smartphone to configure the meter for recording and for real time data review. Data is easily transferred for analysis to your PC via a USB drive or by downloading using your web browser.

• Power/energy logger, sensor logger, and PQ disturbance/event detector
• 3 voltage channels – Direct measurements up to 600 Vrms, CAT III
• 4 current channels – 0.333 Vrms current inputs. Compatible with Dranetz Flex or Hinged CT
• 4 Analog, 2 Digital, 1 Extended Serial Bus, 1 accelerometer & GPS (with sensor module models)

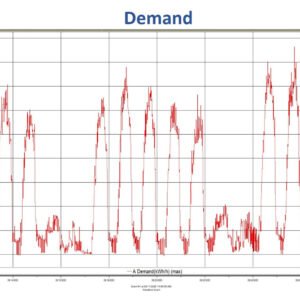

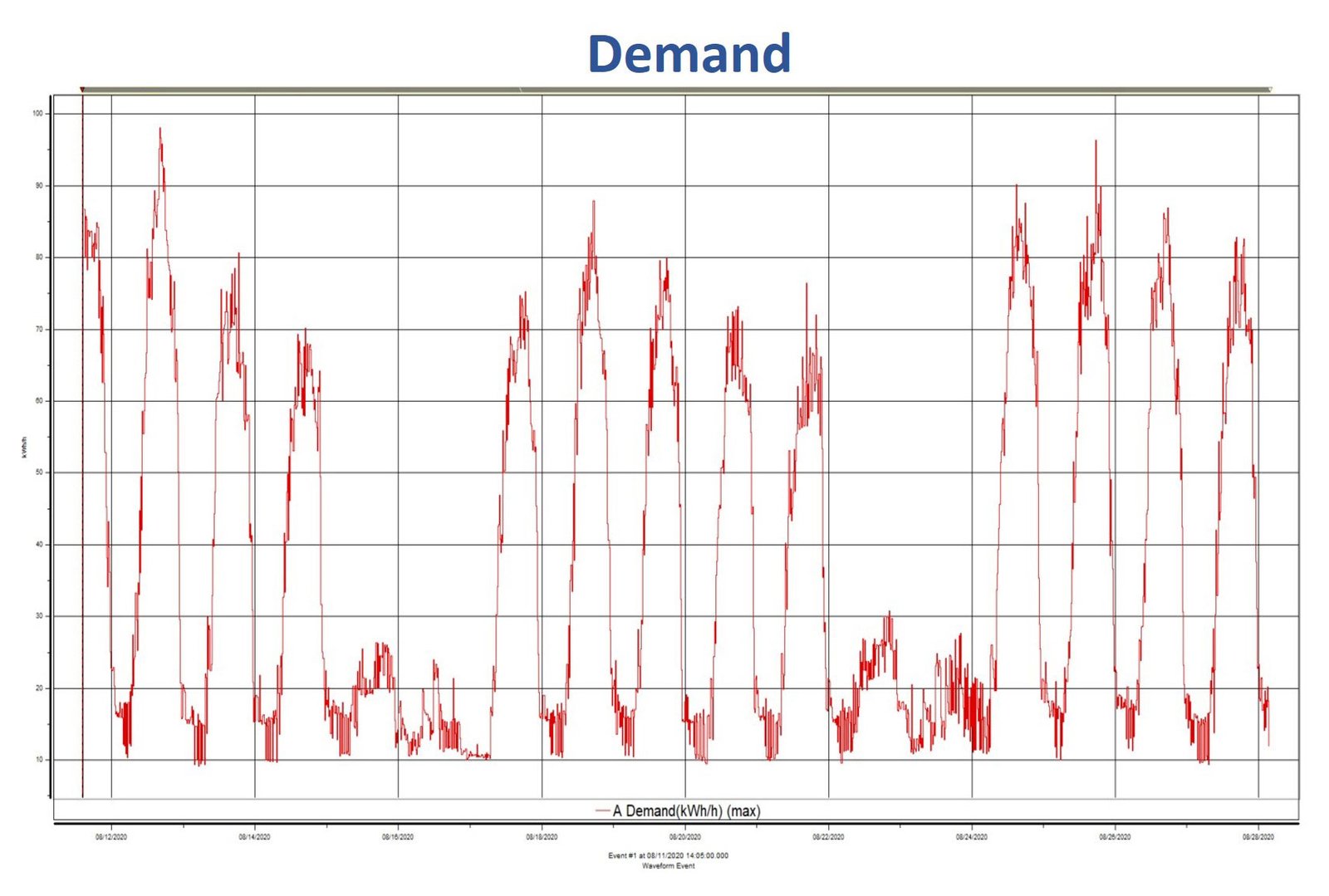

• Measures: V, I, W (P), VA (S), VAR (Q), PF, Demand, Energy, and more…

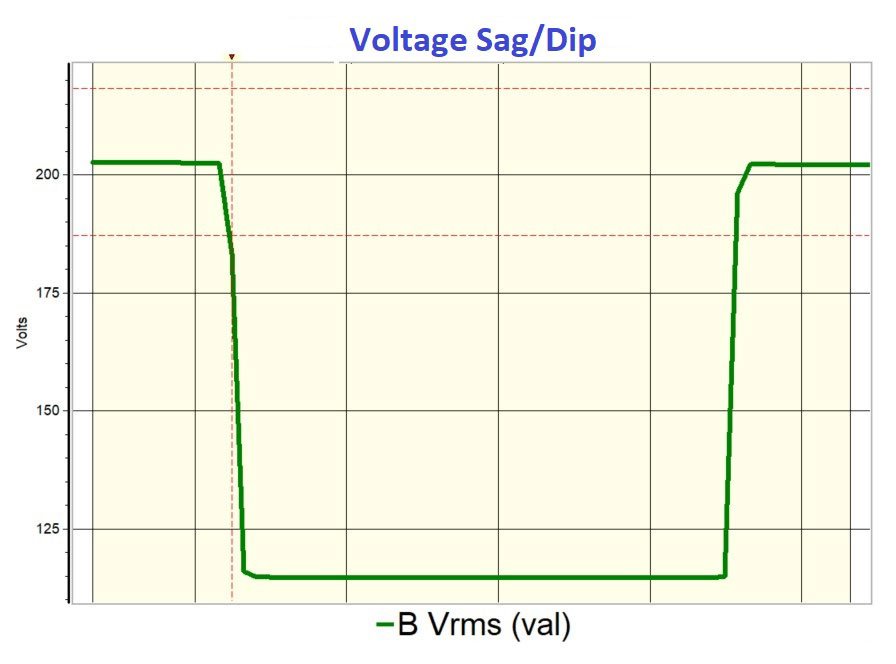

• PQ disturbance detector – Detects and records trends of RMS sags/dips, swells, and current changes – IEC 61000-4-30 1/2 cycle methods
• Harmonic measurements & recording – Vthd, Ithd. Measurements using the methods of IEEE 519-2014/IEC 61000-4-7

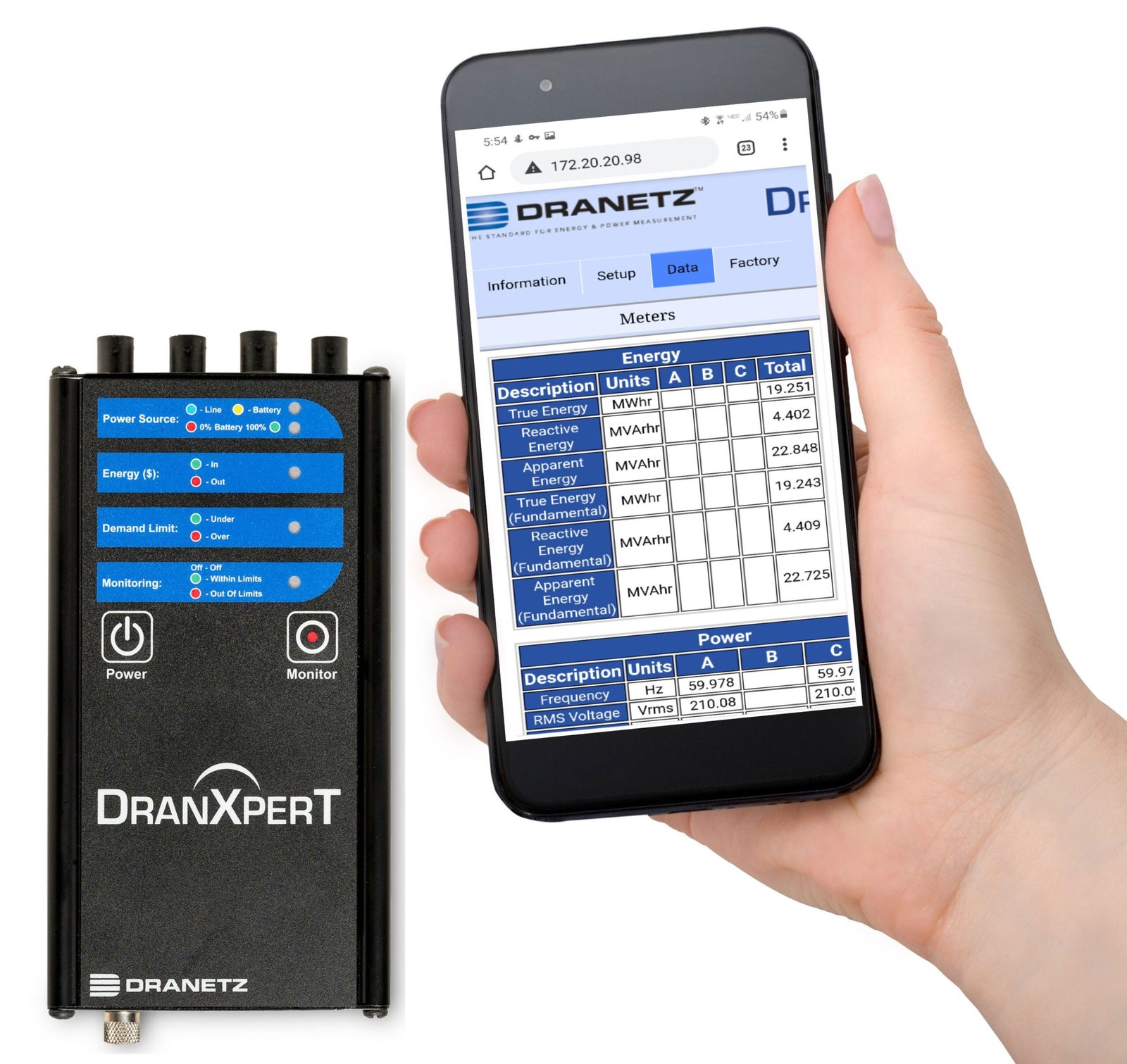

• Web browser interface for real time meters, setup and data transfer
• Perfect for NEC 220.87 load studies (See Application Note in Documents section)
• Used in cellular applications (See Application Note in Documents section)
• Free, unlicensed Dran-View XP software for analysis & reporting
• 7hr battery runtime
• Automatic wiring verification – LED indicated wiring errors
• Ethernet, USB communications
• Modbus, BACnet
• UL and CE Compliant
