Dwyer 115T-AV – Series 100 AV Durablock Air Velocity Gage Kit
41 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
115 MANO .05-0-.25/116T AV KIT
- 115T-AV Durablock Air Velocity Gage Kit 100 AV Series

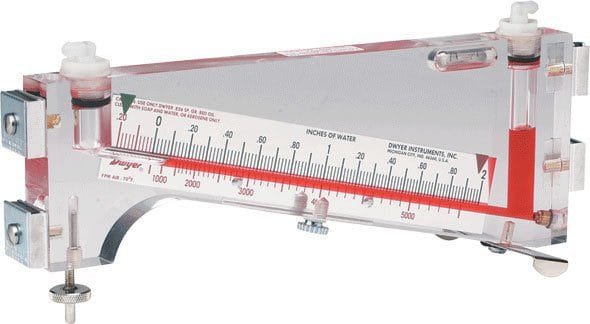

- Plastic Body – A 1″ thick solid acrylic block, virtually unbreakable. It is stable and free of the danger of distortion
- Drilled Bore – Permanently free of bends – never requires recalibration due to distortion
- Reflective Chrome Finish Scales – Easily eliminates parallax errors in reading. Adjustable, with thumbscrew locking for easy zeroing. (Model 125 AV uses screw plunger to adjust zero setting)
- Red Gage Fluid – .826 specific gravity. Forms a well-shaped, easy-to-read meniscus – the result of high wetability
- Leveling Adjustment – Screw allows quick, accurate leveling. Integral ground glass bubble level provides ready reference
Guarantee Safe and Secure Payment Checkout
Description
Dwyer 115T-AV
- Reflective chrome finish scales
- Easily eliminates parallax errors in reading
- Permanently free of bends
- Stable and free of the danger of distortion

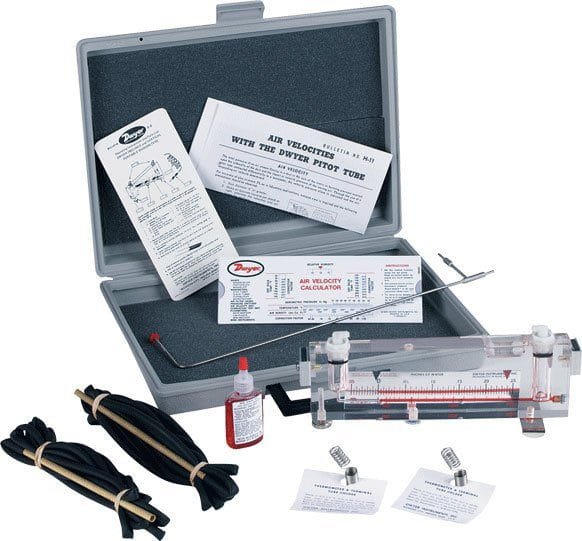

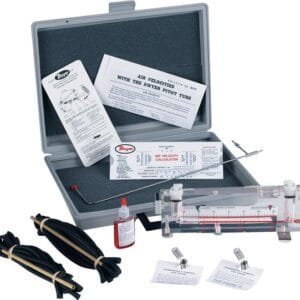

Series 100 AV Durablock Air Velocity Gage Kit
Designed to measure air velocity, static pressure, vacuum or differential pressure, where the additional range of the 400 Series gages is not required. Series 100 Gages offer superb accuracy combined with portability. The Dwyer® Durablock® precision-machined solid acrylic plastic construction, the wells, and inclined bore are machined to tolerances of ±.0002″.
Environmental Testers / Physical Property/Anemometer / Air Flow Template | |
|---|---|
| Type (anemometer) | Pitot Tube |
| Measurement (anemometer) | Ft/Min |
| Air Velocity Max | 2000 ft/min |
| Air Velocity Min | 400 ft/min |
| Accuracy Air Velocity | ±2% |
Product General Attributes | |
| Unique Features | • 0.05-0-.25″ w.c. • 400-2000 FPM velocity • 6″ scale • 36″ Pitot tube |
| Warranty | 1 YEARS |
| Warranty Details | The Seller warrants all Dwyer Instruments and equipment to be free from defects in workmanship or material under normal use and service for a period of one year from date of shipment. Liability under this warranty is limited to repair or replacement EXW Ex Works Dwyer Instruments, Inc. of any parts which prove to be defective within that time or repayment of the purchase price at the Seller’s option provided the instruments have been returned, transportation prepaid, within one year from date of purchase. All technical advice, recommendations and services are based on technical data and information which the Seller believes to be reliable and are intended for use by persons having skill and knowledge of the business, at their own discretion. In no case is Seller liable beyond replacement of equipment EXW Ex Works Dwyer Instruments, Inc. or the full purchase price. This warranty does not apply if the maximum ratings label is removed or if the instrument or equipment is abused, altered. |
| Calibration Included | |
| Country of Origin | United States |
| Other Information | Dimensions:: 9-1/2 x 3-1/16 in |
