Dwyer 471B-1 – Digital Thermo-Anemometer Test Instrument
37 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Dwyer Thermo-Anemometer Test Instrument, 471B-1, Measures Air Velocity and Temperature
- Measures air velocity or air volume and temperature simultaneously
- High contrast and backlit LCD for visibility in any condition
- Able to store up to 99 readings for later evaluation
- Also compatible with VP1 vane thermo-anemometer probe
- Also compatible with RP1 thermo-hygrometer probe
Guarantee Safe and Secure Payment Checkout
Description
Dwyer 471B-1
- Measures air velocity or air volume and temperature simultaneously
- Also compatible with VP1 vane thermo-anemometer probe
- Also compatible with RP1 thermo-hygrometer probe
Digital Thermo-Anemometer Test Instrument

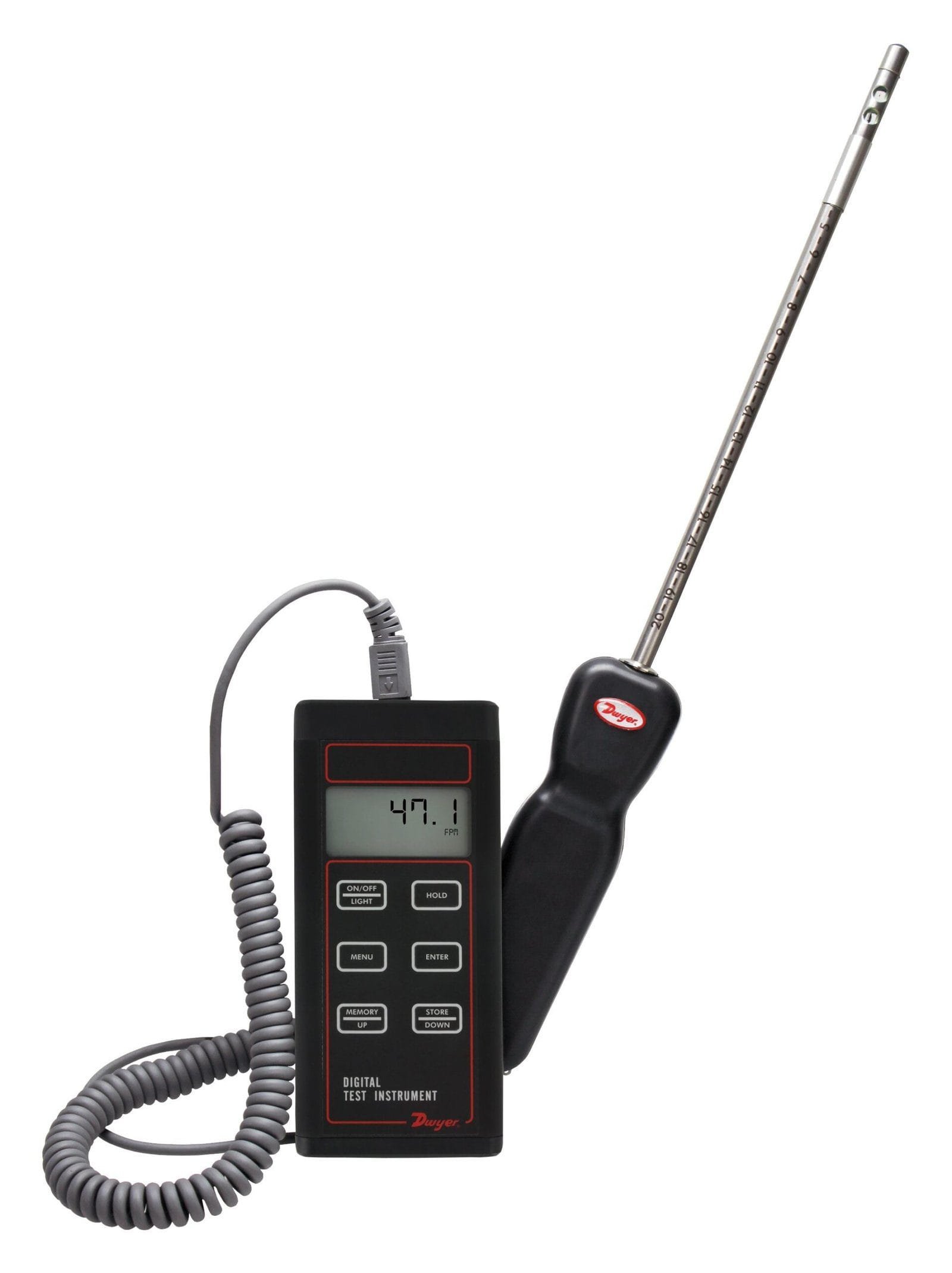

The Dwyer 471B-1 Thermo-Anemometer Test Instrument is a versatile dual function unit that quickly and easily measures air velocity or volumetric flow as well as air temperature in imperial or metric units. A stainless steel probe is included, which has a comfortable hand grip and etched insertion depth marks. The extruded aluminum housing fully protects electronics, yet is lightweight and comfortable to hold.
The 471B-1 is also compatible with two other probes – the VP1 vane thermo-anemometer probe, and RP1 thermo-hygrometer probe. Both are sold separately.
Environmental Testers / Physical Property/Anemometer / Air Flow Template | |
|---|---|
| Measurement (anemometer) | Ft/Min, m/s |
| Air Velocity Max | 6000 ft/min |
| Air Velocity Min | 0 ft/min |
| Accuracy Air Velocity | ±3% FS within temperature range of 40 to 90°F (4 to 32°C) |
| Temperature | Yes |
| Data Hold | Yes |
Product General Attributes | |
| Unique Features | • High contrast and backlit LCD for visibility in any condition • Able to store up to 99 readings • Integral sliding cover protects probe sensors when not in use • Built-in volumetric air flow calculations |
| Warranty | 1 YEARS |
| Warranty Details | The Seller warrants all Dwyer Instruments and equipment to be free from defects in workmanship or material under normal use and service for a period of one year from date of shipment. Liability under this warranty is limited to repair or replacement EXW Ex Works Dwyer Instruments, Inc. of any parts which prove to be defective within that time or repayment of the purchase price at the Seller’s option provided the instruments have been returned, transportation prepaid, within one year from date of purchase. All technical advice, recommendations and services are based on technical data and information which the Seller believes to be reliable and are intended for use by persons having skill and knowledge of the business, at their own discretion. In no case is Seller liable beyond replacement of equipment EXW Ex Works Dwyer Instruments, Inc. or the full purchase price. This warranty does not apply if the maximum ratings label is removed or if the instrument or equipment is abused/altered. |
| Safety Approval | CE |
| Storage | Internal Memory |
| Product Weight | 454 GRAMS (1.00 LBS) |
| Product Height | 3.50 IN |
| Product Length | 18.25 IN |
| Product Width | 7.25 IN |
| Shipping Weight | 2.52 LBS |
| HTS/Schedule B Number | 9026.80.6000 |
| ECCN Number | EAR99 |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.50 IN |
| Shipping Length | 18.25 IN |
| Shipping Width | 7.25 IN |
| Other Information | Probe Length:: 8″ (203 mm) insertion |
