Description

ecom RSM-Ex01-D2
- RSM Compatible with Smart-Ex, Ex-Cover Pro, and Ex-handy tablets and phones
- Intrinsically safe – NEC/CEC Division 2, North America
- Intuitive and easy to use – even when wearing gloves
- Outstanding volume and sound performance – up to 103 dB
- Lone worker ready (red button), additional multifunction buttons and dedicated SOS button
Remote Speaker Microphone for Hazardous Areas, Division 2, North America

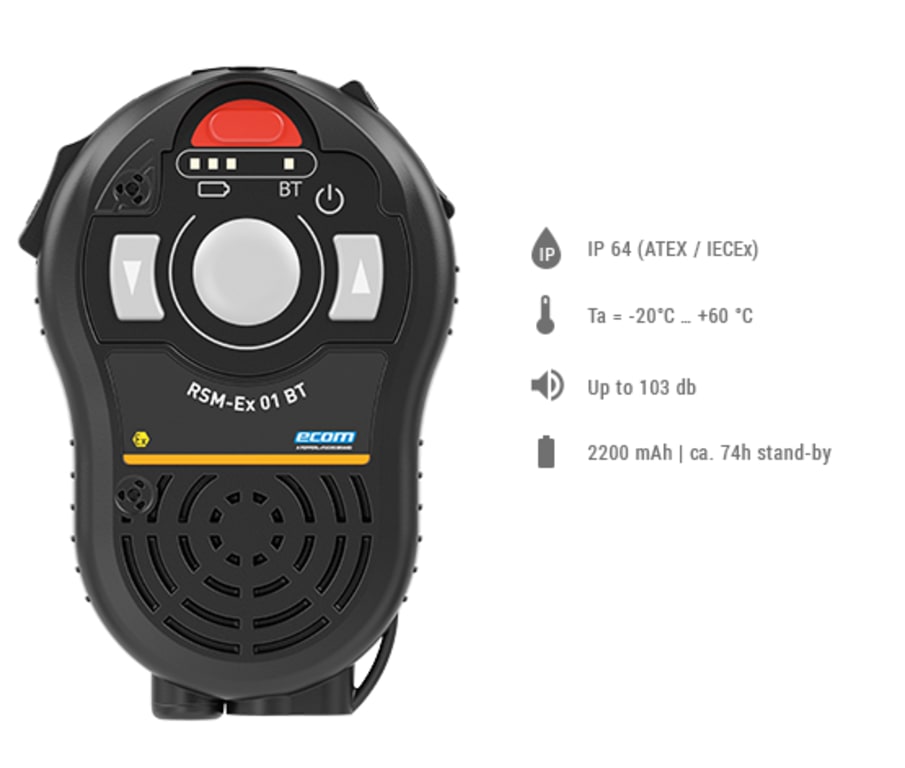

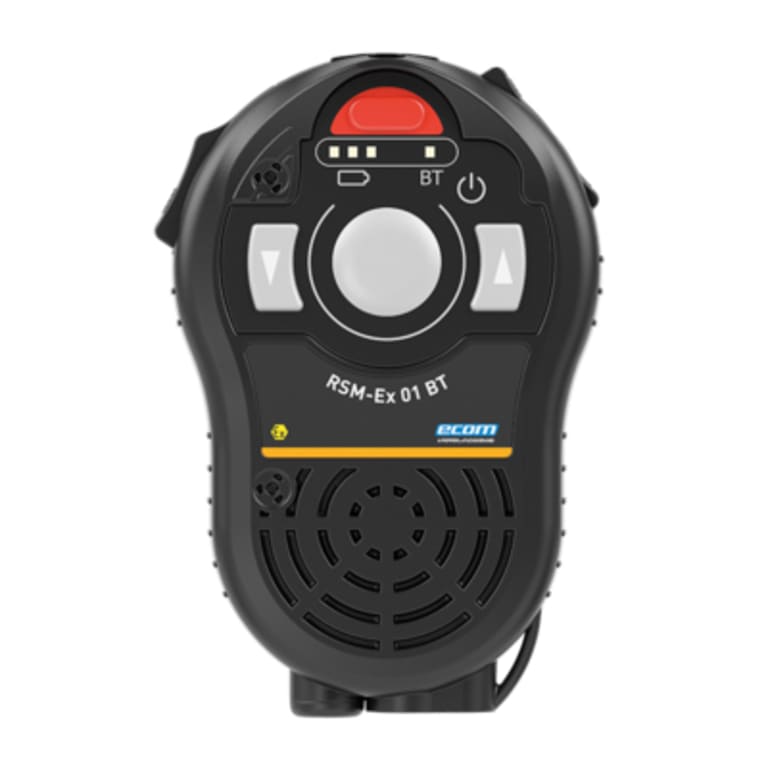

The ecom RSM-Ex01-D2 is an intrinsically safe remote speaker microphone (RSM) for North America NEC/CEC Division 2. The RSM-Ex01-D2 is rated IP64 and is equipped with a built-in noise reduction function. It is able to produce clear, high-volume audio up to 103 dB. The RSM is intuitive and easy to use, even when wearing gloves. It is intended for industrial applications and offers a rugged design.
The RSM-Ex01-D2 is lone worker ready (red button provides emergency call function – only if supported). It also features a PTT (Push-To-Talk) button, additional multifunction button and dedicated SOS button.

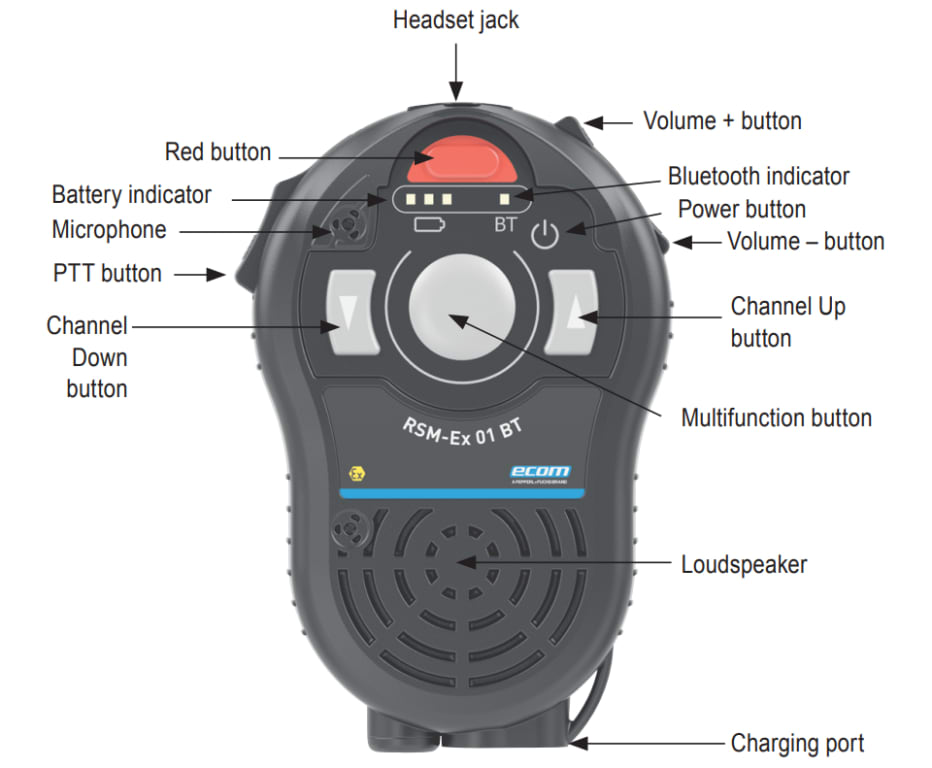

Operating Elements

Function Buttons
| Button | Description |
| PTT | Initiate a Push-To-Talk (PTT) call |
| Red | Emergency call function (only if supported) |
| Volume +/- | Volume adjustment |
| Multifunction button (MFB) | Accept, hang up and reject phone calls |
| Channel +/- | Change PTT group channel (only if supported) |
Red Button – Emergency Call
The emergency call function of the red button can only be used with Smart-Ex 02 and Ex Handy 10, as well as future generations smartphones and mobile phones made by ECOM Instruments GmbH. The Red function must be integrated in the respective application.
