Elite RF AB.502.5G5348AC – Linear Wideband Power Amplifier (500MHz-2.5GHz; 200W Psat) Rack Mount

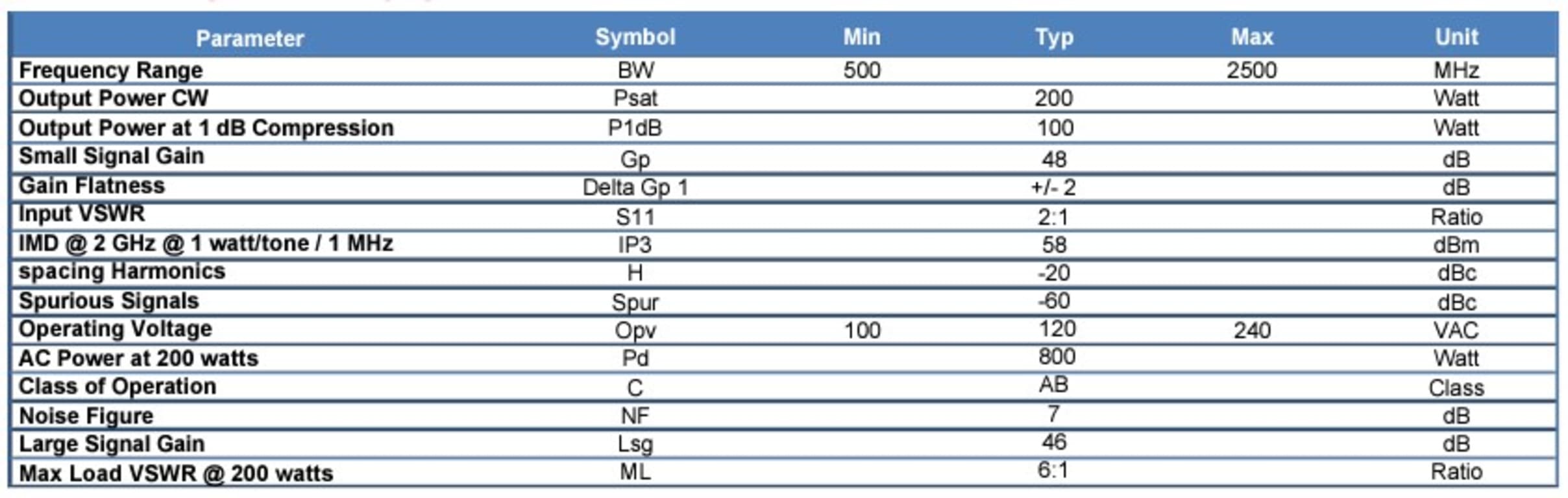

• Wideband power amplifier designed for CW signals fabricated on GaN on SiC process
• Frequency Range: 500MHz – 2.5GHz (BW)
• Output Power CW: 200 Watts (Psat)
• Output Power at 1dB Compression (P1dB): 100 Watts
• Gain: 48dB

The Elite RF 500MHz to 2500MHz RF Power Amplifiers are a popular series, incorporating advanced, state-of-the-art RF GaN transistors. These class AB linear amplifiers have a power gain up to 48dB and operate in CW or pulsed mode. Covering the UHF band and L band, these solid-state RF amplifiers are well-suited for a variety of applications, including defense, commercial and military radar, communications, industrial, scientific, medical, and laboratory use. These amplifiers feature an enable/disable function and have high reverse isolation with additional built-in protection.

• Wide Frequency Range
• High Output Power
• High Gain
• High Reverse Isolation
• Built-in Protection for Thermal Overload and Over Voltage
