Elite RF AB2.0018G4348AC – Linear Wideband Power Amplifier (2GHz-18GHz; 20W Psat) Rack Mount
24 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
2GHz to 18GHz, 20W Psat Linear RF Power Amplifier in 19-inch 2U rack.
- Wideband power amplifier designed for CW signals fabricated on GaN on SiC process
- Frequency Range: 2GHz – 18GHz (BW)
- Output Power CW: 20 Watts (Psat)
- Output Power at 1dB Compression (P1dB): 5 Watts
- Gain: 48dB
- Noise Figure: 5dB
- Supply power: 100 – 240 VAC
- Class of Operation: AB
- Rack mount 19in 2U High
- High Reverse Isolation with Built-in Protection for over voltage and thermal overload
Guarantee Safe and Secure Payment Checkout
Description
Elite RF AB2.0018G4348AC
- Wideband power amplifier designed for CW signals fabricated on GaN on SiC process
- Frequency Range: 2GHz – 18GHz (BW)
- Output Power CW: 20 Watts (Psat)
- Output Power at 1dB Compression (P1dB): 5 Watts
- Gain: 48dB
Linear Wideband Power Amplifier (2GHz-18GHz; 20W Psat) Rack Mount
The Elite RF 2GHz-18GHz RF Power Amplifiers is two wideband power amplifiers in one cabinet designed for CW signals fabricated on GaN on SiC process and can operate up to 18 GHz. These amplifiers offer high power low density, decade thermal resistance, bandwidth performance, and wideband performance. They can be widely used for military and commercial applications
Elite RF 20MHz – 6GHz RF Power Amplifiers Features (AB2.0018G4348AC)
- Wide Frequency Range
- High Output Power
- High Gain
- High Reverse Isolation
- Built-in Protection for Thermal Overload and Over Voltage

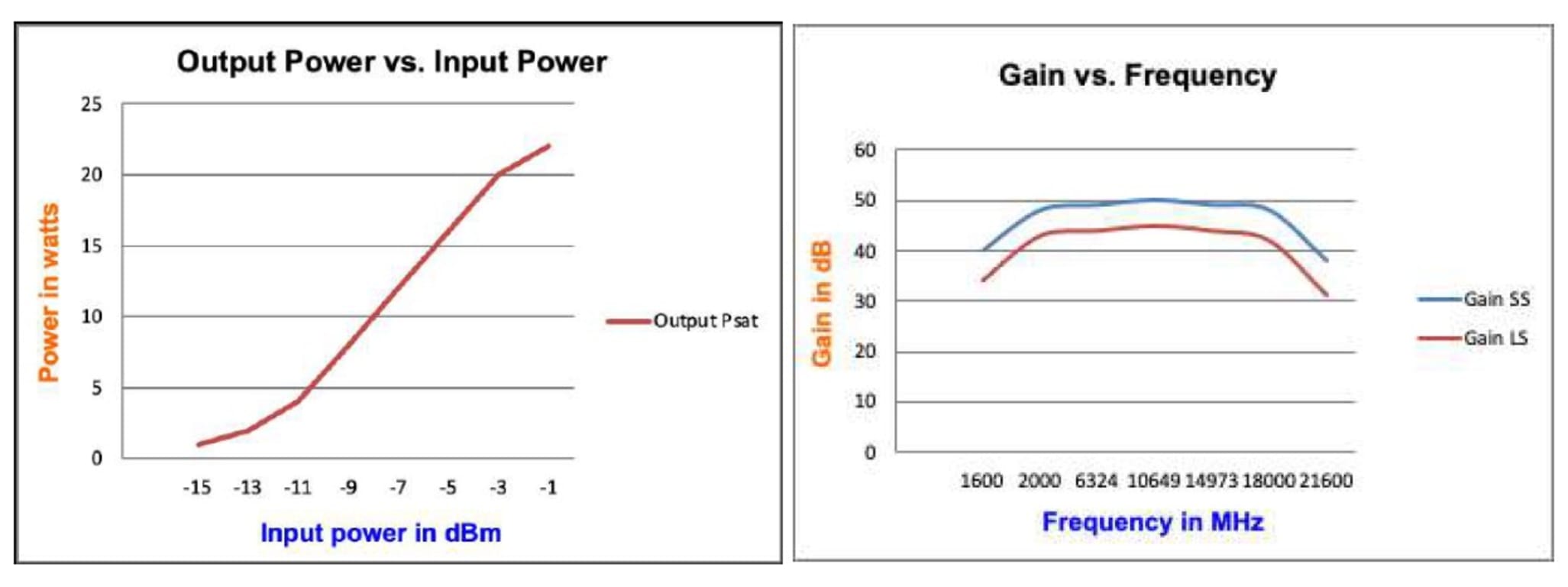

Elite RF AB2.0018G4348AC Specifications
