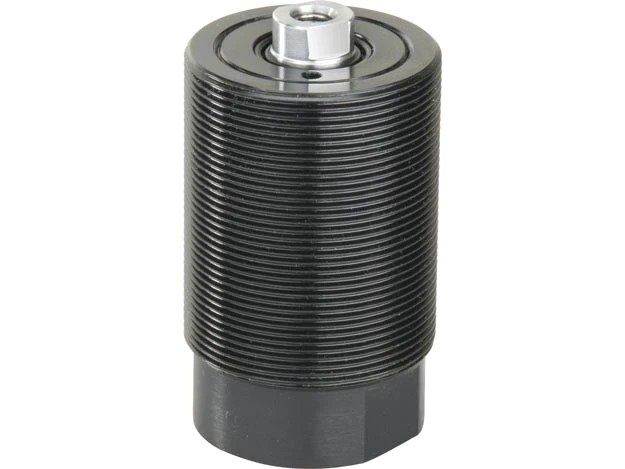

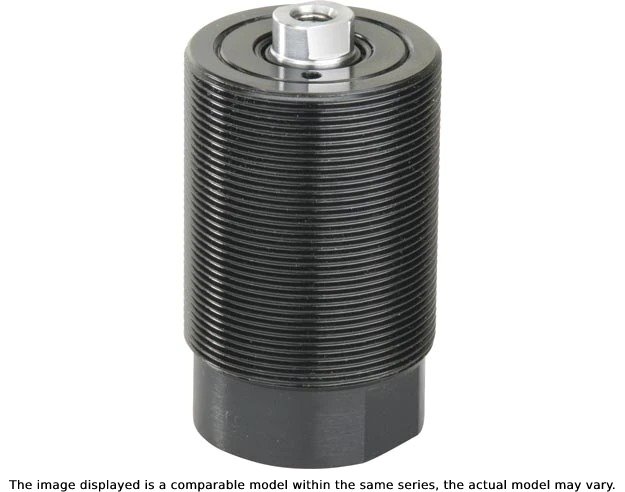

Enerpac CDT27252 – Hydraulic Cylinder, 26.9 kN Capacity, 24.7 mm Stroke, Double-Acting, Threaded Body
21 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Hydraulic cylinder, 26.9 kN capacity, 24.7 mm stroke, double-acting, threaded body
- 24.7 mm stroke
- 26.9 kN capacity
- Double-acting hydraulic return
- Threaded body
- Allows fine positioning and easy installation
- Internal plunger wipers
- Center-tapped plungers
- Recommended for high-cycle applications
Guarantee Safe and Secure Payment Checkout
Description
Enerpac CDT27252
- 24.7 mm stroke
- 26.9 kN capacity
- Double-acting hydraulic return
- Threaded body
- Allows fine positioning and easy installation
Hydraulic Cylinder, 26.9 kN Capacity, 24.7 mm Stroke, Double-Acting, Threaded Body
The Enerpac CDT27252 is a hydraulic cylinder with a threaded body that offers a maximum capacity of 26.9 kN, a stroke of 24.7 mm, and a double-acting hydraulic return. The minimum cylinder diameter is combined with maximized clamping forces. The threaded body allows fine positioning and easy installation, and the internal plunger wipers allow maintenance-free, high-cycle performance. The center-tapped plungers will hold the workpiece contact buttons. This hydraulic cylinder is recommended for high-cycle applications.
CDT series Metric
| Model/Part Number | Stroke (mm) | Max. Cylinder Capacity Advance (kN) | Max. Operating Pressure (bar) | Return Type | Weight (kg) |
| EnerpacCDT27152 | 14.7 | 26.9 | 350 | Double Acting, Hydraulic Return | 1.1 |
| EnerpacCDT27252 | 24.7 | 26.9 | 350 | Double Acting, Hydraulic Return | 1.3 |
| EnerpacCDT27502 | 49.7 | 26.9 | 350 | Double Acting, Hydraulic Return | NA |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first using purchaser. |
| Product Weight | 2.87 LBS |
| Shipping Weight | 3.11 LBS |
| UPC | 662005127757 |
