Enerpac CDT40502 – Hydraulic Cylinder, 39.2 kN Capacity, 50mm Stroketroke, Double-Acting, Threaded Body
14 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Hydraulic cylinder, 39.2 kN capacity, 50mm stroke, double-acting, threaded body
- 50mm stroke
- 39.2 kN capacity
- Double-acting hydraulic return
- Threaded body
- Allows fine positioning and easy installation
- Internal plunger wipers
- Center-tapped plungers
- Recommended for high-cycle applications
Guarantee Safe and Secure Payment Checkout
Description
Enerpac CDT40502
- 50mm stroke
- 39.2 kN capacity
- Double-acting hydraulic return
- Threaded body
- Allows fine positioning and easy installation
Hydraulic Cylinder, 39.2 kN Capacity, 50mm Stroketroke, Double-Acting, Threaded Body

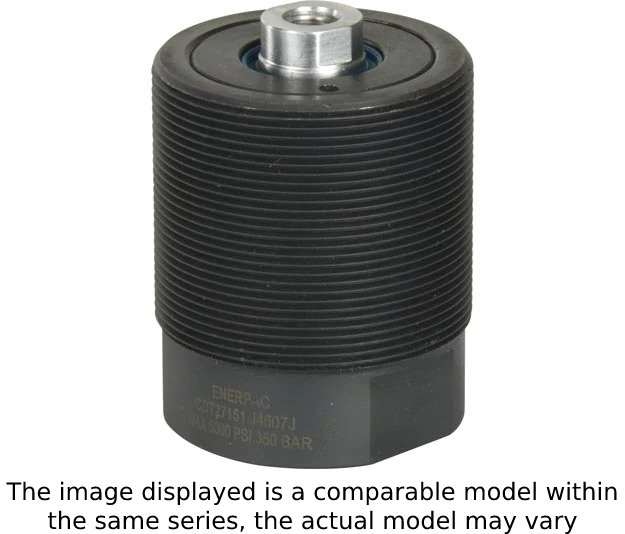

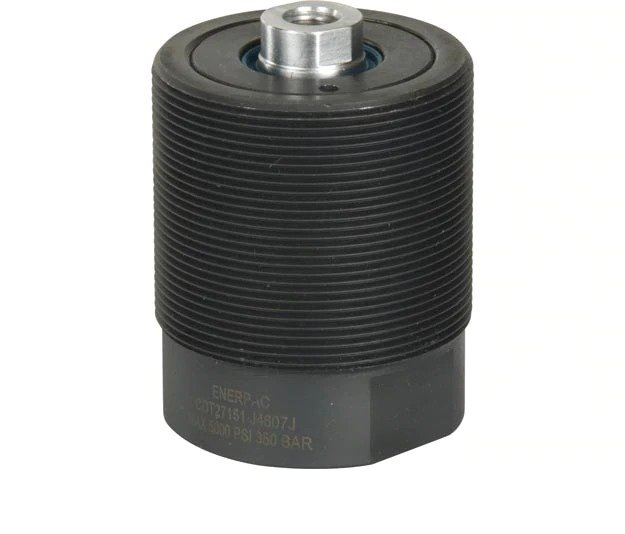

The Enerpac CDT40502 is a hydraulic cylinder with a threaded body that offers a maximum capacity of 39.2 kN, a stroke of 50mm, and a double-acting hydraulic return. The minimum cylinder diameter is combined with maximized clamping forces. The threaded body allows fine positioning and easy installation, and the internal plunger wipers allow maintenance-free, high-cycle performance. The center-tapped plungers will hold the workpiece contact buttons. This hydraulic cylinder is recommended for high-cycle applications.
CDT Series Comparison Table
| Model/Part Number | Stroke (mm) | Maximum Cylinder Capacity Advance (kN) | Maximum Operating Pressure (bar) | Return Type | Weight (kg) |
| EnerpacCDT40132 | 13 | 39.2 | 350 | Double Acting, Hydraulic Return | 1.8 |
| EnerpacCDT40252 | 25 | 39.2 | 350 | Double Acting, Hydraulic Return | 2.0 |
| EnerpacCDT40382 | 38 | 39.2 | 350 | Double Acting, Hydraulic Return | 2.5 |
| EnerpacCDT40502 | 50 | 39.2 | 350 | Double Acting, Hydraulic Return | 3.0 |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first using purchaser. |
| Product Weight | 6.6 LBS |
| Shipping Weight | 7.6 LBS |
| UPC | 662005127788 |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsOther
| Weight | 6.6 lbs |
|---|
