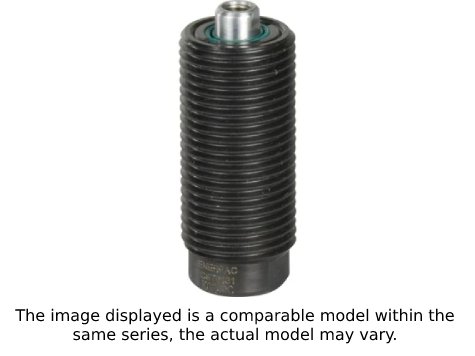

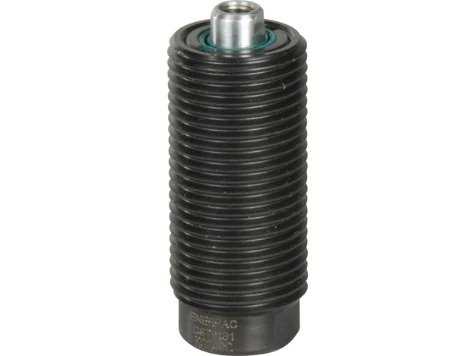

Enerpac CST10132 – Hydraulic Cylinder, 11,3 kN Capacity, 13,0 mm Stroke, Single-Acting, Threaded Body

• 350 bar Maximum Operating Pressure
• 13 mm Stroke
• Single Acting Spring Return
• Minimum cylinder diameter combined with maximized clamping forces
• Threaded body allows fine positioning and easy installation

The Enerpac CST10132 is a hydraulic cylinder with a threaded-body. It features an 11.3 kN capacity, a 13 mm stroke, and a single-acting return type. The minimum cylinder diameter is combined with maximized clamping forces. A threaded body allows fine positioning and easy installation. The internal plunger wipers allow maintenance-free, high-cycle performance. The center-tapped plungers will hold the workpiece contact buttons. This single-acting model with spring return simplifies hydraulic tubing requirements.
