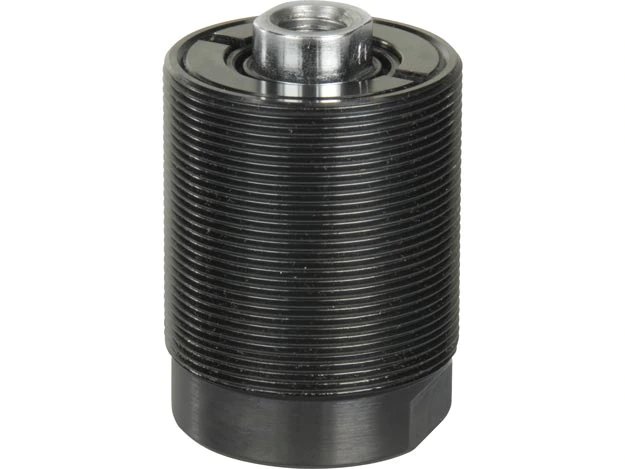

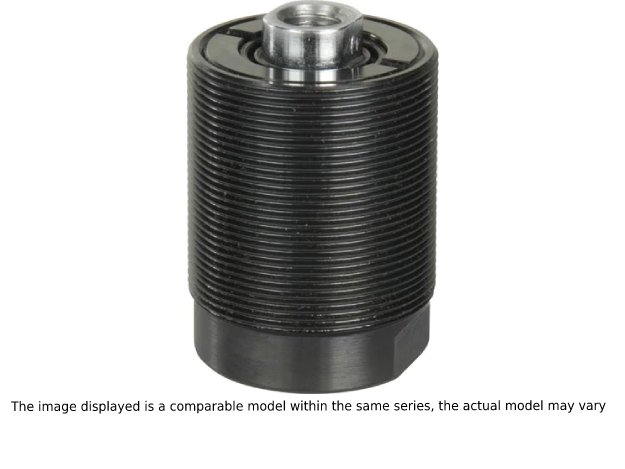

Enerpac CST18382 – Threaded Cylinder, 17.2 kN Capacity, 38mm Stroke, Single-Acting
11 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Threaded cylinder, 17.2 kN capacity, 38mm stroke, single-acting
- Maximum cylinder capacity advance (kN): 17.2
- Stroke (mm): 38
- Minimum cylinder diameter combined with maximized clamping forces
- Threaded body allows fine positioning and easy installation
- Internal plunger wipers allow maintenance-free, high-cycle performance
- Center-tapped plungers will hold workpiece contact buttons
- Single-acting with spring return simplify hydraulic tubing requirements
Guarantee Safe and Secure Payment Checkout
Description
Enerpac CST18382
- Maximum cylinder capacity advance (kN): 17.2
- Stroke (mm): 38
- Minimum cylinder diameter combined with maximized clamping forces
- Threaded body allows fine positioning and easy installationn
Threaded Cylinder, 17.2 kN Capacity, 38mm Stroke, Single-Acting
The Enerpac CST18382 is a threaded cylinder with a 17.2 kN maximum cylinder capacity advance and a 38mm stroke. It is designed for workpiece positioning, holding, and ejecting applications where space is at a premium. This single-acting cylinder with spring return simplifies hydraulic tubing requirements.
CST series comparison table
| Model | Maximum Cylinder Capacity Advance (kN) | Stroke (mm) | Cylinder Effective Area Advance (cm2) | Oil Capacity Advance (cm3) |
| CST18382 | 17.2 | 38 | 5.1 | 19.37 |
| CST18502 | 17.2 | 50 | 5.1 | 25.48 |
| CST27152 | 26.9 | 15 | 7.88 | 11.82 |
| CST27252 | 26.9 | 25 | 7.88 | 19.7 |
| CST27502 | 26.9 | 50 | 7.88 | 39.4 |
| CST40132 | 39.2 | 14.6 | 11.36 | 14.76 |
| CST40382 | 39.2 | 39.6 | 11.36 | 43.15 |
| CST40502 | 39.2 | 51.6 | 11.36 | 56.78 |
General Attributes | |
|---|---|
| Product Weight | 1.3 LBS |
| Shipping Weight | 1.40 LBS |
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser. |
