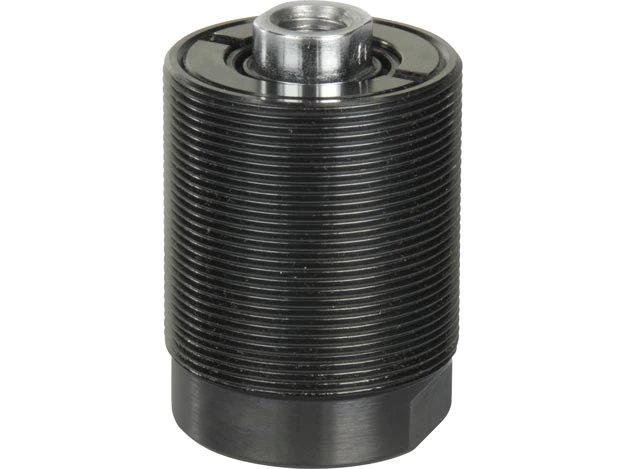

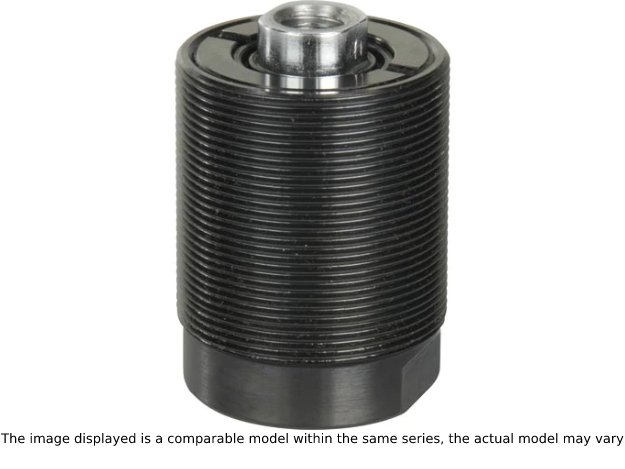

Enerpac CST18501 – Threaded Cylinder, 3,950 lbs Capacity, 1.97″ Stroke, Single-Acting
34 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Threaded cylinder, 3,950 lbs capacity, 1.97″ stroke, single-acting
- Maximum cylinder capacity advance (lbs): 3,950
- Stroke (in): 1.97
- Minimum cylinder diameter combined with maximized clamping forces
- Threaded body allows fine positioning and easy installation
- Internal plunger wipers allow maintenance-free, high-cycle performance
- Center-tapped plungers will hold workpiece contact buttons
- Single-acting with spring return simplify hydraulic tubing requirements
Guarantee Safe and Secure Payment Checkout
Description
Enerpac CST18501
- Maximum cylinder capacity advance (lbs): 3,950
- Stroke (in): 1.97
- Minimum cylinder diameter combined with maximized clamping forces
- A threaded body allows fine positioning and easy installation
Threaded Cylinder, 3,950 lbs Capacity, 1.97″ Stroke, Single-Acting
The Enerpac CST18501 is a threaded cylinder with a 3,950 lbs maximum cylinder capacity advance and a 1.97″ stroke. It is designed for workpiece positioning, holding, and ejecting applications where space is at a premium. This single-acting cylinder with spring return simplifies hydraulic tubing requirements.
CST1 Series Comparison Table
| Model | Maximum Cylinder Capacity Advance (lbs) | Stroke (in) | Cylinder Effective Area Advance (in2) | Oil Capacity Advance (in3) |
| CST18381 | 3950 | 1.49 | 0.79 | 1.18 |
| CST18501 | 3950 | 1.97 | 0.79 | 1.56 |
| CST27151 | 6110 | 0.59 | 1.22 | 0.72 |
| CST27251 | 6110 | 0.98 | 1.22 | 1.2 |
| CST27501 | 6110 | 1.97 | 1.22 | 2.4 |
| CST40131 | 8800 | 0.58 | 1.76 | 0.9 |
| CST40381 | 8800 | 1.56 | 1.76 | 2.63 |
| CST40501 | 8800 | 2.03 | 1.76 | 3.46 |
General Attributes | |
|---|---|
| Product Weight | 1.7 LBS |
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser. |
You must be logged in to post a review.
Manuals/Guides
| Weight | 1.7 lbs |
|---|
