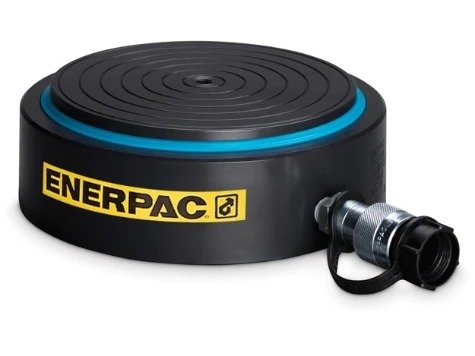

Enerpac CUSP10 – High Tonnage Ultra Flat Hydraulic Cylinder, 10.9 Tons Capacity, 0.26″ Stroke
31 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
Ultra-flat hydraulic cylinder, 10 tons capacity class, 0.26″ stroke
- Maximum Cylinder Capacity Advance (tons): 10.9 | Capacity Class (tonnage): 10 | Stroke: 0.26″
- Up to 4% side load of maximum capacity
- Extremely low collapsed height
- Integrated tilting function up to 4 degrees to evenly distribute the load
- Nitrocarburized surface treatment for harsh conditions
- “Red Line” for visual maximum stroke limitation
- Coupler AR630 including dust cap: Use HB7206 hose including AH630 coupler to connect to your pump
Guarantee Safe and Secure Payment Checkout
Description
Enerpac CUSP10
- Maximum Cylinder Capacity Advance (tons): 10.9 | Capacity Class (tonnage): 10 | Stroke: 0.26″
- Up to 4% side load of maximum capacity
- Extremely low collapsed height
- Integrated tilting function up to 4 degrees to evenly distribute the load
- Nitrocarburized surface treatment for harsh conditions
High Tonnage Ultra Flat Hydraulic Cylinder, 10.9 Tons Capacity, 0.26″ Stroke
Enerpac CUSP-Series High Tonnage Ultra Flat Cylinders are an ideal solution for lifting applications in which short stroke and low collapsed height are required, and where non-parallel loading surfaces are present.
All CUSP-Series cylinders are single-acting with hydraulic advance and load return. The maximum angle of the tilting plunger is between 2 and 4 degrees.
Capacities range from 10 to 1000 tons [97 to 10165.4 kN]. Refer to the product data markings on the cylinder base for the capacity rating of your cylinder model.
All standard production CUSP-Series cylinders are designed for 10,150 psi [700 bar] maximum working pressure.
The CUSP-Series cylinders have no stop ring. A maximum stroke indicator line alerts the user when the plunger has reached its full allowable extension.
CUSP Series Comparison Table
| Model | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type | Material |
| CUSP10 | 10,150 | 10 | 10.9 | 0.26 | 1.40 | 1.66 | Single-Acting, Load Return | Solid | Steel |
| CUSP20 | 10,150 | 20 | 22.2 | 0.28 | 1.59 | 1.87 | Single-Acting, Load Return | Solid | Steel |
| CUSP30 | 10,150 | 30 | 34.8 | 0.29 | 1.67 | 1.96 | Single-Acting, Load Return | Solid | Steel |
| CUSP50 | 10,150 | 50 | 61.8 | 0.52 | 2.24 | 2.77 | Single-Acting, Load Return | Solid | Steel |
| CUSP75 | 10,150 | 75 | 89.0 | 0.55 | 2.38 | 2.93 | Single-Acting, Load Return | Solid | Steel |
| CUSP100 | 10,150 | 100 | 121.1 | 0.58 | 2.50 | 3.08 | Single-Acting, Load Return | Solid | Steel |
| CUSP150 | 10,150 | 150 | 178.6 | 0.56 | 2.56 | 3.12 | Single-Acting, Load Return | Solid | Steel |
| CUSP200 | 10,150 | 200 | 235.0 | 0.59 | 2.72 | 3.30 | Single-Acting, Load Return | Solid | Steel |
| CUSP250 | 10,150 | 250 | 285.6 | 0.61 | 2.85 | 3.46 | Single-Acting, Load Return | Solid | Steel |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 2.6 LBS |
| Product Height | 1.40 IN |
| Product Width | 2.83 IN |
| Shipping Weight | 3 LBS |
| Shipping Height | 1.61 IN |
| Shipping Width | 3.25 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 2.6 lbs |
|---|---|
| Dimensions | 2.83 × 1.4 in |
