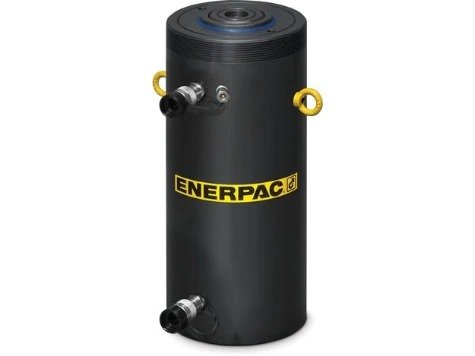

Enerpac HCR20012 – High Tonnage Hydraulic Cylinder, 223 Tons Capacity, 11.81″ Stroke
19 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
High tonnage hydraulic cylinder, 200 tons capacity class, 11.81″ stroke, D/A
- Maximum Cylinder Capacity Advance (tons): 223 | Capacity Class (tonnage): 200 | Stroke: 11.81″
- Double-acting, hydraulic return
- 10% side-load resistance over full stroke
- Hardened surface resists side-loading and cyclic wear
- Weather protected, inside and out
- Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
- Certified lifting eyes, base mounting holes and collar threads
Guarantee Safe and Secure Payment Checkout
Description
Enerpac HCR20012
- Maximum Cylinder Capacity Advance (tons): 223 | Capacity Class (tonnage): 200 | Stroke: 11.81″
- Double-acting, hydraulic return
- 10% side-load resistance over the full stroke
- Hardened surface resists side-loading and cyclic wear
- Weather protected, inside and out
High Tonnage Hydraulic Cylinder, 223 Tons Capacity, 11.81″ Stroke
Enerpac HCR-Series high tonnage hydraulic cylinders are an ideal solution for a wide variety of commercial and industrial lifting applications. HCR-Series models are double-acting with hydraulic advance and return. The hydraulic return feature allows greater control during lowering and provides positive retraction of the plunger. Note that the HCR-Series cylinders are not designed for pulling applications.
Capacities range from 62 to 1196 US tons [550 to 10644 kN]. Refer to the product data markings on the cylinder base for the capacity rating of your cylinder model. All standard production HCR cylinders are designed for 10150 psi [700 bar] maximum working pressure. A hardened grooved saddle is standard equipment on all models. A user-installable tilt saddle is available as an optional accessory. Refer to Section 12 of this manual for cylinder weights, oil volumes, dimensions and additional specifications.
HCR Series comparison table
| Model Number | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type |
| HCR1502 | 10150 | 150 | 168 | 1.97 | 8.66 | 10.63 | Double-Acting, Hydraulic Return | Solid |
| HCR1504 | 10150 | 150 | 168 | 3.94 | 10.63 | 14.57 | Double-Acting, Hydraulic Return | Solid |
| HCR1506 | 10150 | 150 | 168 | 5.91 | 12.6 | 18.5 | Double-Acting, Hydraulic Return | Solid |
| HCR1508 | 10150 | 150 | 168 | 7.87 | 15.63 | 23.5 | Double-Acting, Hydraulic Return | Solid |
| HCR2002 | 10150 | 200 | 223 | 1.97 | 9.09 | 11.06 | Double-Acting, Hydraulic Return | Solid |
| HCR2004 | 10150 | 200 | 223 | 3.94 | 11.06 | 15 | Double-Acting, Hydraulic Return | Solid |
| HCR2006 | 10150 | 200 | 223 | 5.91 | 13.03 | 18.94 | Double-Acting, Hydraulic Return | Solid |
| HCR2008 | 10150 | 200 | 223 | 7.87 | 16.06 | 23.94 | Double-Acting, Hydraulic Return | Solid |
| HCR20010 | 10150 | 200 | 223 | 9.84 | 18.03 | 27.87 | Double-Acting, Hydraulic Return | Solid |
| HCR20012 | 10150 | 200 | 223 | 11.81 | 20 | 31.81 | Double-Acting, Hydraulic Return | Solid |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 371 LBS |
| Product Height | 20 IN |
| Product Length | 9.84 IN |
| Product Width | 9.84 IN |
| Shipping Weight | 426.65 LBS |
| Shipping Height | 23 IN |
| Shipping Length | 11.32 IN |
| Shipping Width | 11.32 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 371 lbs |
|---|---|
| Dimensions | 9.84 × 9.84 × 20 in |
