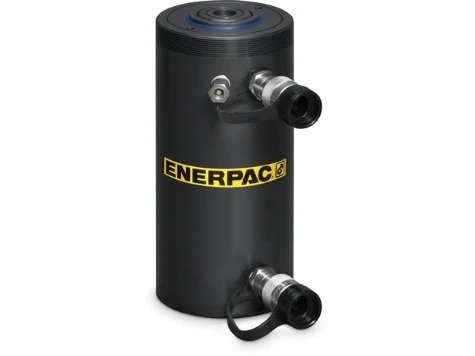

Enerpac HCR502 – High Tonnage Hydraulic Cylinder, 62 Tons Capacity, 1.97″ Stroke
26 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
High tonnage hydraulic cylinder, 50 tons capacity class, 1.97″ stroke, D/A
- Maximum Cylinder Capacity Advance (tons): 62 | Capacity Class (tonnage): 50 | Stroke: 1.97″
- Double-acting, hydraulic return
- 10% side-load resistance over full stroke
- Hardened surface resists side-loading and cyclic wear
- Weather protected, inside and out
- Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
- Certified lifting eyes, base mounting holes and collar threads
Guarantee Safe and Secure Payment Checkout
Description
Enerpac HCR502
- Maximum Cylinder Capacity Advance (tons): 62 | Capacity Class (tonnage): 50 | Stroke: 1.97″
- Double-acting, hydraulic return
- 10% side-load resistance over the full stroke
- Hardened surface resists side-loading and cyclic wear
- Weather protected, inside and out
High Tonnage Hydraulic Cylinder, 62 Tons Capacity, 1.97″ Stroke
Enerpac HCR-Series high tonnage hydraulic cylinders are an ideal solution for a wide variety of commercial and industrial lifting applications. HCR-Series models are double-acting with hydraulic advance and return. The hydraulic return feature allows greater control during lowering and provides positive retraction of the plunger. Note that the HCR-Series cylinders are not designed for pulling applications.
Capacities range from 62 to 1196 US tons [550 to 10644 kN]. Refer to the product data markings on the cylinder base for the capacity rating of your cylinder model. All standard production HCR cylinders are designed for 10150 psi [700 bar] maximum working pressure. A hardened grooved saddle is standard equipment on all models. A user-installable tilt saddle is available as an optional accessory. Refer to Section 12 of this manual for cylinder weights, oil volumes, dimensions and additional
HCR Series comparison table
| Model | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type |
| HCR502 | 10150 | 50 | 62 | 1.97 | 7.2 | 9.17 | Double-Acting, Hydraulic Return | Solid |
| HCR504 | 10150 | 50 | 62 | 3.94 | 9.17 | 13.11 | Double-Acting, Hydraulic Return | Solid |
| HCR506 | 10150 | 50 | 62 | 5.91 | 11.14 | 17.05 | Double-Acting, Hydraulic Return | Solid |
| HCR508 | 10150 | 50 | 62 | 7.87 | 13.62 | 21.5 | Double-Acting, Hydraulic Return | Solid |
| HCR5010 | 10150 | 50 | 62 | 9.84 | 15.59 | 25.43 | Double-Acting, Hydraulic Return | Solid |
| HCR5012 | 10150 | 50 | 62 | 11.81 | 17.56 | 29.37 | Double-Acting, Hydraulic Return | Solid |
| HCR1002 | 10150 | 100 | 113 | 1.97 | 7.95 | 9.92 | Double-Acting, Hydraulic Return | Solid |
| HCR1004 | 10150 | 100 | 113 | 3.94 | 9.92 | 13.86 | Double-Acting, Hydraulic Return | Solid |
| HCR1006 | 10150 | 100 | 113 | 5.91 | 11.89 | 17.8 | Double-Acting, Hydraulic Return | Solid |
| HCR1008 | 10150 | 100 | 113 | 7.87 | 14.92 | 22.8 | Double-Acting, Hydraulic Return | Solid |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 37 LBS |
| Product Height | 8.28 IN |
| Product Length | 5.12 IN |
| Product Width | 5.12 IN |
| Shipping Weight | 42.55 LBS |
| Shipping Height | 8.28 IN |
| Shipping Length | 5.89 IN |
| Shipping Width | 5.89 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresSpec Sheets
| Weight | 37 lbs |
|---|---|
| Dimensions | 5.12 × 5.12 × 8.28 in |
