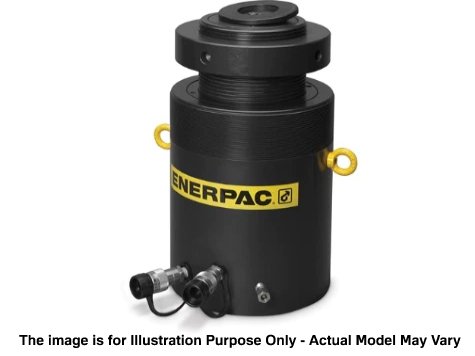

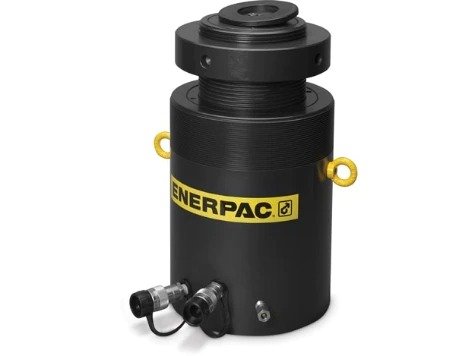

Enerpac HCRL30012 – High Tonnage Lock Nut Hydraulic Cylinder, 333.6 Tons Capacity, 11.81″ Stroke

• Maximum Cylinder Capacity Advance (tons): 333.6| Capacity Class (tonnage): 300 | Stroke: 11.81″
• Double-acting, hydraulic return
• Locknut provides mechanical load holding for a safe work environment
• Designed to withstand up to 10% side-load of maximum capacity
• An integrated tilt saddle allows up to 5 degrees of misalignment
• Hardened surface resists side-loading and cyclic wear
• Replaceable bearings enclose the plunger external and internally for support

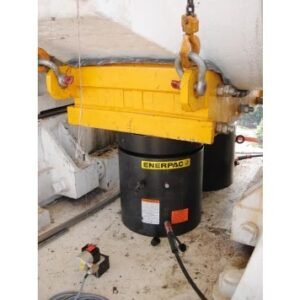

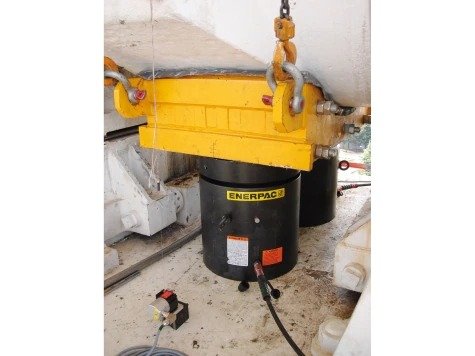

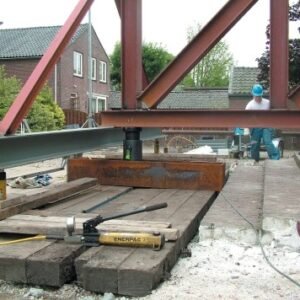

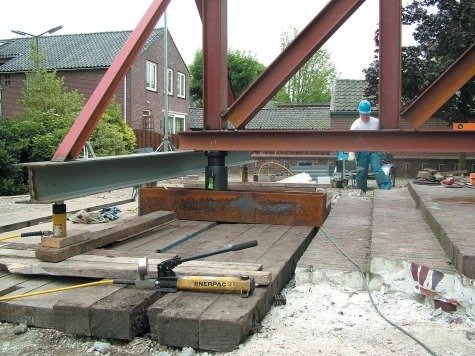

Enerpac HCRL-Series cylinders are an ideal solution for various commercial and industrial lifting applications.

HCRL-Series cylinders are double-acting with hydraulic advance and return. A lock nut provides mechanical load holding capabilities.

The hydraulic return feature allows greater control during lowering and provides positive retraction of the plunger. Note that the HCRL-Series cylinders are not designed for pulling applications.

Capacities range from 62 to 1196 US tons [550 to 10644 kN]. Refer to the product data markings on the cylinder base for the capacity rating of your cylinder model.

All standard HCRL-Series cylinders are designed for 10150 psi [700 bar] maximum working pressure.

An integrated tilt saddle is standard equipment on all models.

Enerpac HCRL Series Comparison
