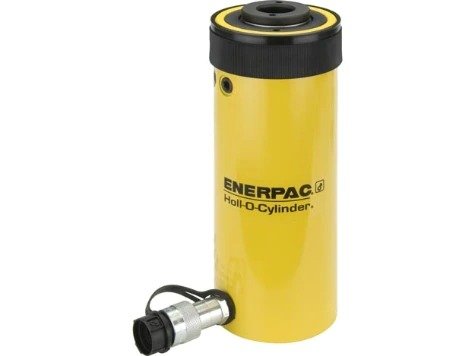

Enerpac RCH306 – Hollow Plunger Hydraulic Cylinder, 36.1 Tons Capacity, 6.13″ Stroke
33 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
Hollow plunger hydraulic cylinder, 30 tons capacity class, 6.13″ stroke, S/A
- Maximum Cylinder Capacity Advance (tons): 36.1 | Capacity Class (tonnage): 30 | Stroke: 6.13″
- Features CR400 coupler
- The hollow plunger design allows for both pull and pushes forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life.
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
Guarantee Safe and Secure Payment Checkout
Description
Enerpac RCH306
- Maximum Cylinder Capacity Advance (tons): 36.1 | Capacity Class (tonnage): 30 | Stroke: 6.13″
- Features CR400 coupler
- The hollow plunger design allows for both pull and pushes forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life.
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
Hollow Plunger Hydraulic Cylinder, 36.1 Tons Capacity, 6.13″ Stroke
Enerpac RCH306 is a hollow plunger hydraulic cylinder with 36.1 tons capacity 6.13″ stroke. It has relief valves that prevent damage in over-pressurization and a baked enamel finish for increased corrosion resistance. Its collar threads enable easy fixturing. This hydraulic cylinder provides a single-acting spring return operation for fast retraction.
The nickel-plated, floating center tube on models over 20 tons increases product life. A hollow plunger allows for both pull and pushes forces. Moreover, its plunger wiper reduces contamination, extending cylinder life. The RCH306 Includes a features CR400 coupler.
Epac RCH Series Comparison
| Model Number | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type |
| RCH120 | 10,000 | 12 | 13.8 | 0.31 | 2.19 | 2.5 | Single-Acting, Spring Return | Hollow |
| RCH121 | 10,000 | 12 | 13.8 | 1.63 | 4.75 | 6.38 | Single-Acting, Spring Return | Hollow |
| RCH1211 | 10,000 | 12 | 13.8 | 1.63 | 4.75 | 6.38 | Single-Acting, Spring Return | Hollow |
| RCH123 | 10,000 | 12 | 13.8 | 3 | 7.25 | 10.25 | Single-Acting, Spring Return | Hollow |
| RCH202 | 10,000 | 20 | 23.6 | 2 | 6.38 | 8.38 | Single-Acting, Spring Return | Hollow |
| RCH206 | 10,000 | 20 | 23.6 | 6.1 | 12.05 | 18.11 | Single-Acting, Spring Return | Hollow |
| RCH302 | 10,000 | 30 | 36.1 | 2.5 | 7.03 | 9.53 | Single-Acting, Spring Return | Hollow |
| RCH306 | 10,000 | 30 | 36.1 | 6.13 | 13 | 19.13 | Single-Acting, Spring Return | Hollow |
| RCH603 | 10,000 | 60 | 63.6 | 3 | 9.75 | 12.75 | Single-Acting, Spring Return | Hollow |
| RCH606 | 10,000 | 60 | 63.6 | 6 | 12.75 | 18.75 | Single-Acting, Spring Return | Hollow |
| RCH1003 | 10,000 | 100 | 103.1 | 3 | 10 | 13 | Single-Acting, Spring Return | Hollow |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 48 LBS |
| Product Height | 13 IN |
| Product Width | 4.5 IN |
| Shipping Weight | 55.2 LBS |
| Shipping Height | 14.95 IN |
| Shipping Width | 5.18 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 48 lbs |
|---|---|
| Dimensions | 4.5 × 13 in |
