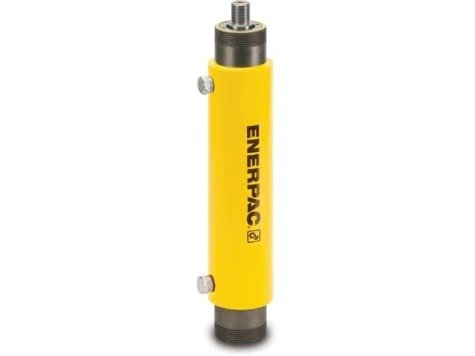

Enerpac RD93 – General Purpose Hydraulic Cylinder, 9 Tons Capacity, 3.13″ Stroke
16 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
General purpose hydraulic cylinder, 9 tons capacity class, 3.13″ stroke, D/A
- Maximum Cylinder Capacity Advance (tons): 9| Capacity Class (tonnage): 9 | Stroke: 3.13″
- Double-acting operation develops force in both directions, providing maximum versatility
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
Guarantee Safe and Secure Payment Checkout
Description
Enerpac RD93
- Maximum Cylinder Capacity Advance (tons): 9| Capacity Class (tonnage): 9 | Stroke: 3.13″
- Double-acting operation develops force in both directions, providing maximum versatility
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
General Purpose Hydraulic Cylinder, 9 Tons Capacity, 3.13″ Stroke
The Enerpac RD93 is a general-purpose hydraulic cylinder with 9 tons of capacity and a 3.13″ stroke. Designed for long life, this hydraulic cylinder is the best choice for production applications. Its double-acting operation provides force in both directions, providing maximum versatility. The unique mounting configurations simplify fixturing. The plunger wiper reduces contamination, extending cylinder life. Moreover, the baked enamel finish for increased corrosion resistance.
RD Series comparison table
| Model Number | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Maximum Cylinder Capacity Retract (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type |
10000 | 4 | 4 | 2 | 1.13 | 7.31 | 8.44 | Double-Acting, Hydraulic Return | Solid | |
10000 | 4 | 4 | 2 | 3.13 | 9.31 | 12.44 | Double-Acting, Hydraulic Return | Solid | |
10000 | 4 | 4 | 2 | 6.13 | 12.31 | 18.44 | Double-Acting, Hydraulic Return | Solid | |
10000 | 9 | 9 | 5 | 1.13 | 8.75 | 9.88 | Double-Acting, Hydraulic Return | Solid | |
10000 | 9 | 9 | 5 | 3.13 | 10.78 | 13.91 | Double-Acting, Hydraulic Return | Solid | |
10000 | 9 | 9 | 5 | 6.13 | 13.78 | 19.91 | Double-Acting, Hydraulic Return | Solid | |
10000 | 9 | 9 | 5 | 10.13 | 17.78 | 27.91 | Double-Acting, Hydraulic Return | Solid | |
10000 | 16 | 16 | 8 | 6.25 | 15.31 | 21.56 | Double-Acting, Hydraulic Return | Solid | |
10000 | 25 | 25 | 11 | 10.25 | 20.69 | 30.94 | Double-Acting, Hydraulic Return | Solid |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 11 LBS |
| Product Height | 10.78 IN |
| Product Length | 2.5 IN |
| Product Width | 2.5 IN |
| Shipping Weight | 12.65 LBS |
| Shipping Height | 12.40 IN |
| Shipping Length | 2.88 IN |
| Shipping Width | 2.88 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 11 lbs |
|---|---|
| Dimensions | 2.5 × 2.5 × 10.78 in |
