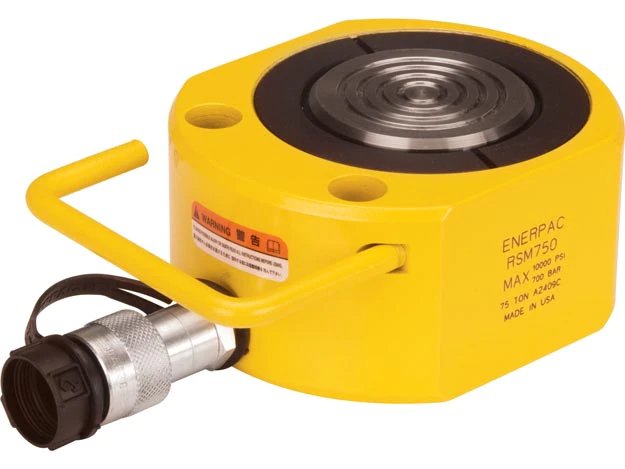

Enerpac RSM750 – Low Height Hydraulic Cylinder, 79.5 Tons Capacity, 0.63″ Stroke
31 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
Low height hydraulic cylinder, 75 tons capacity class, 0.63″ stroke
- Maximum Cylinder Capacity Advance (tons): 79.5 | Capacity Class (tonnage): 75 | Stroke: 0.63″
- Single-acting spring return
- Compact, flat design for use where other cylinders will not fit
- Mounting holes permit easy fixturing
- Baked enamel finish for increased corrosion resistance
- Hard chrome plated high-quality steel plungers
- Grooved plunger ends require no saddle-using purchaser
- Includes handles for easy carrying
Guarantee Safe and Secure Payment Checkout
Description
Enerpac RSM750
- Maximum Cylinder Capacity Advance (tons): 79.5 | Capacity Class (tonnage): 75 | Stroke: 0.63″
- Single-acting spring return
- Compact, flat design for use where other cylinders will not fit
- Mounting holes permit easy fixturing
Low Height Hydraulic Cylinder, 79.5 Tons Capacity, 0.63″ Stroke
Product Lines: Industrial Tools
The Enerpac RSM750 is a compact, flat design for use where other cylinders will not fit. The handles are for easy carrying. It has mounting holes that permit easy fixturing. It’s baked an enamel finish for increased corrosion resistance. It has a CR400 coupler and dust cap included. It’s a hard chrome-plated high-quality steel plunger. The grooved plunger ends require no saddle. It Single-acting spring return.
RSM Series Comparison Table
| Model Number | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Cylinder Effective Area Advance (in2) | Oil Capacity Advance (in3) | Coupler | Weight (lbs) |
| RSM50 | 5 | 4.9 | 0.25 | 1.28 | 1.53 | 0.99 | 0.25 | AR400 Coupler | 2.3 |
| RSM100 | 10 | 11.2 | 0.44 | 1.69 | 2.13 | 2.24 | 0.98 | CR400 Coupler | 3.1 |
| RSM200 | 20 | 22.1 | 0.44 | 2.03 | 2.47 | 4.43 | 1.94 | CR400 Coupler | 6.8 |
| RSM300 | 30 | 32.4 | 0.5 | 2.31 | 2.81 | 6.49 | 3.25 | CR400 Coupler | 10 |
| RSM500 | 50 | 48.1 | 0.63 | 2.63 | 3.25 | 9.62 | 6.01 | CR400 Coupler | 15 |
| RSM750 | 75 | 79.5 | 0.63 | 3.13 | 3.75 | 15.9 | 9.94 | CR400 Coupler | 25 |
| RSM1000 | 100 | 98.1 | 0.63 | 3.38 | 4 | 19.63 | 12.27 | CR400 Coupler | 32 |
| RSM1500 | 150 | 153.4 | 0.63 | 3.94 | 4.56 | 30.68 | 19.17 | CR400 Coupler | 58 |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 25 LBS |
| Product Height | 3.13 IN |
| Shipping Weight | 28.75 LBS |
| Shipping Height | 3.6 IN |
You must be logged in to post a review.
| Weight | 25 lbs |
|---|---|
| Dimensions | 3.13 in |
