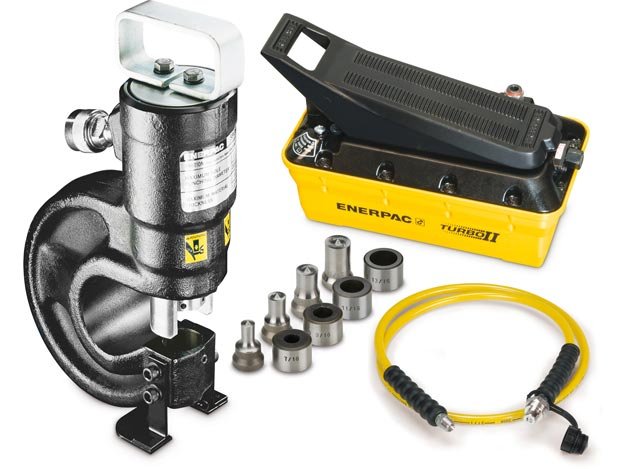

Enerpac STP35A – Hydraulic Punch & Standard Die Set w/ Air Pump, 35 Ton

• Includes punch and standard die set w/ air pump

• .50″ thick mild steel maximum capacity
• Round, oblong and square punches and dies are available to solve your punching applications
• Long life Enerpac single-acting, spring return design

The Enerpac STP35A is a 35-ton hydraulic punch & standard die set with an air pump. The Hydraulic Punch has a .50″ thick mild steel maximum capacity. It features a long-life Enerpac single-acting, spring return design and comes with a durable steel case that keeps hydraulic punch tools and dies together and provides for easy carrying and storage.

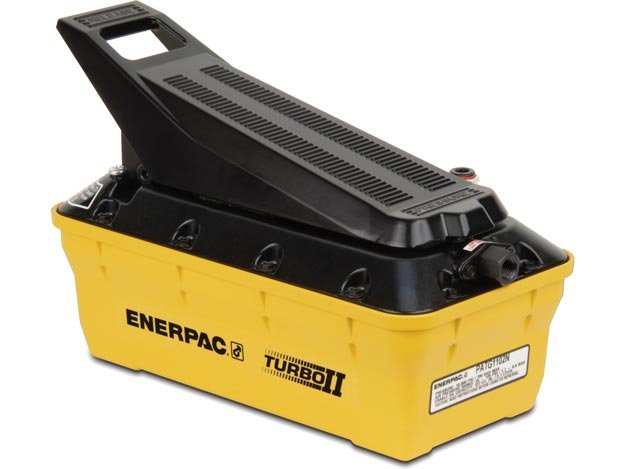

PATG1102N Air Pump

• High efficiency cast aluminum air motor for increased life and reduced air consumption
• Reinforced heavy-duty reservoir for applications in tough environments
• New generation air saver piston with a rugged one-piece design reduces air consumption and operating costs
• Return-to-tank port for use in remote valve applications
• Quiet – only 76dBA with low air consumption of 12 scfm
• Operating air pressure: 40-125 psi, enables the pump to start at extremely low pressure
• Internal pressure relief valve provides overload protection
