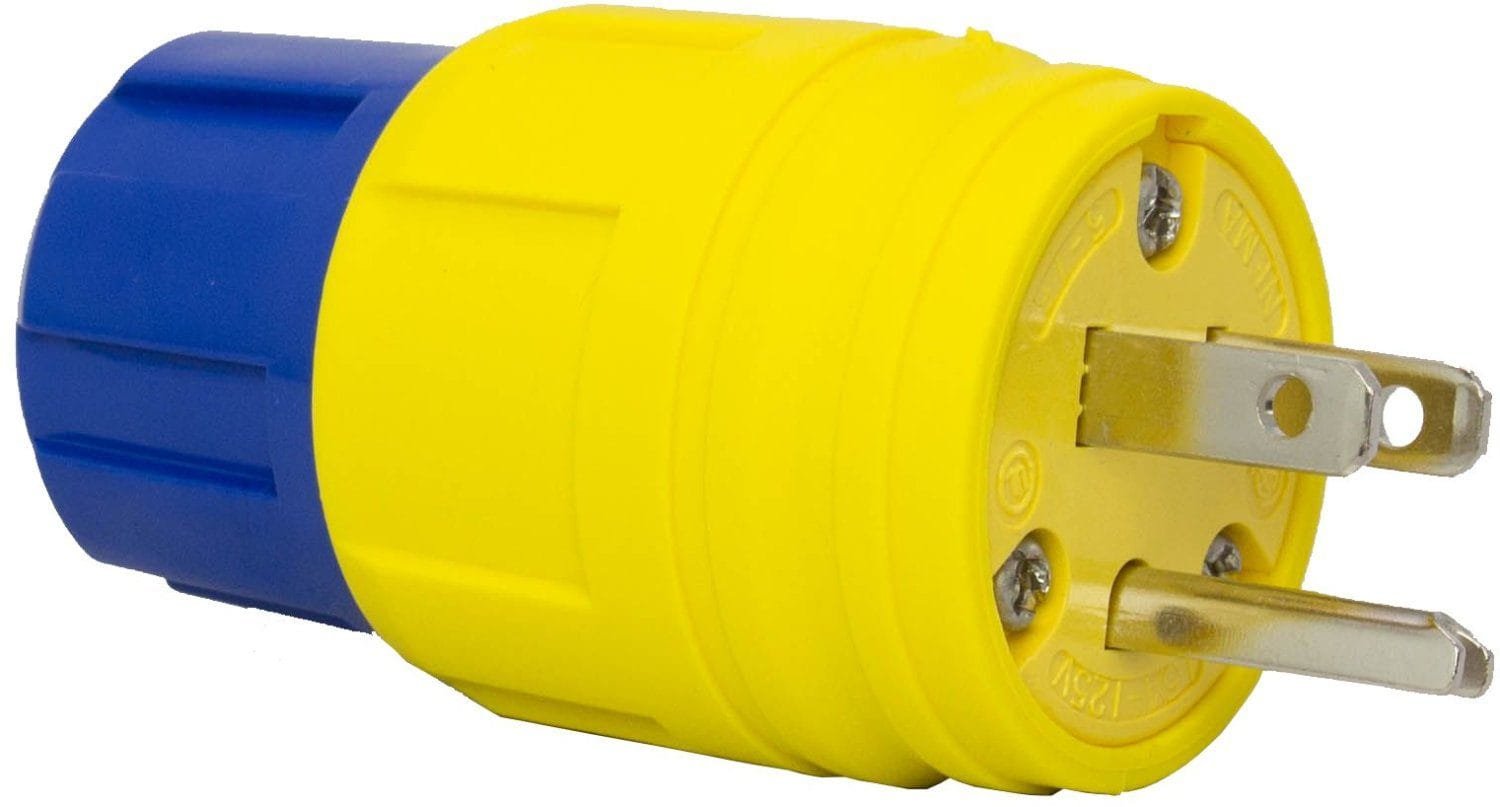

Ericson 1510-PW6P – Straight Blade Plug, NEMA 5-15, Perma-Tite, 15A/125V
31 people are viewing this product right now
Original price was: $267.08.$240.35Current price is: $240.35.
Shipping calculated at checkout.
Estimated delivery:4 days
Plug, Straight Blade Perma-Tite-Note:Price is for 10 Units
- UL Listed & CSA Certified
- Tongue & groove sealing system provides environmental protection of: NEMA Type 4, 4X, 6, 6P & IP67
- Devices resist high-pressure hose down of 1,000psi
- Plug bodies made with PBT chosen for its high resistance to moisture absorption, high voltage arcing and carbon tracking
- Keyed body and cover for easy alignment/assembly
- Color-coded sealing bushings are provided to fit a variety of cord diameters
- Removable/replaceable self-retained sealing cap provided with connector to keep out contaminants when not in use
- Optional plug cover available for 15A straight blade & locking and 20A straight blade devices
- Transparent back-plate makes for quick visual wiring checks
- Ericson’s new brilliant Blue and Radiant Yellow High Visibility Dual-Color Safety System symbolizes that legendary Ericson Quality
Guarantee Safe and Secure Payment Checkout
Description
Ericson 1510-PW6P
- UL Listed & CSA Certified
- Tongue & groove sealing system
- Devices resist high-pressure hose down of 1,000psi
- Plug bodies made with PBT chosen for its high resistance
- Keyed body and cover
Straight Blade Plug, NEMA 5-15, Perma-Tite, 15A/125V
Perma-Tite 2 plugs connectors are engineered and manufactured to the highest quality standards to provide the ultimate electrical service and protection. They are designed and proven to do their best under the worst conditions in a broad array of the most severe food processing, industrial, marine, construction, and petrochemical work environments.
Applications:
- Food processing
- Pulp and paper mills
- Refineries and Petro Chem Facilities
- Shipyards
- Utilities
- Marine
Perma-Tite Single Outlet FS Cover Plates – FS Series
- Weather-resistant boot seals around Ericson Perma-Tite plug to provide weather-resistant protection
- Spring-loaded flip-lid covers receptacle when not in use includes a cover plate, rubber boot, stainless steel mounting plate/mounting screws
- Impact, chemical & corrosion-resistant construction
- Mounts easily to FS and FD boxes and any flat surface
Electrical/Electrical Plugs and Connectors Template | |
|---|---|
| Maximum Current | 15 A |
| Maximum Voltage | 125 V |
| Straight Blade | Yes |
| NEMA Rated | Yes |
Product General Attributes | |
| Safety Approval | CSA, ETL, UL |
| Product Weight | 0.20 LBS |
| Shipping Weight | 2.00 LBS |
| HTS/Schedule B Number | 8536.10.0040 |
| ECCN Number | 3A992 |
| Country of Origin | Germany |
| UPC | 782862824764 |
You must be logged in to post a review.
Manuals/Guides
BrochuresSpec Sheets
| Weight | 0.2 lbs |
|---|
