Ericson 1610-CW6P – Straight Blade Connector, NEMA 5-15, Perma-Tite Extreme Grade Watertight, 15A/125V
28 people are viewing this product right now
Original price was: $167.25.$150.53Current price is: $150.53.
Shipping calculated at checkout.
Estimated delivery:3 days
CONNECTOR-15AMP-125V STRAIGHT BLADE-Note:Price is for 5 Units
- UL Listed & CSA Certified
- Tongue & groove sealing system provides environmental protection of NEMA Type 4, 4X, 6, 6P & IP67
- Devices resist high-pressure hose down of 1,000psi
- Plug & Connector bodies made with PBT chosen for its high resistance to moisture absorption, high voltage arcing and carbon tracking
- Keyed body and cover for easy alignment/assembly
- Color-coded sealing bushings are provided to fit a variety of cord diameters
- Removable/replaceable self-retained sealing cap provided with connector to keep out contaminants when not in use
- Optional plug cover available for 15Amp straight blade & locking and 20Amp straight blade devices
- Transparent back-plate makes for quick visual wiring checks
- Ericson’s new brilliant Blue and Radiant Yellow High Visibility Dual-Color Safety System symbolizes that legendary Ericson Quality
Guarantee Safe and Secure Payment Checkout
Description
Ericson 1610-CW6P
- UL Listed & CSA Certified
- Devices resist high-pressure hose down of 1,000psi
- Plug & Connector bodies made with PBT
- Keyed body and cover for easy alignment/assembly
Straight Blade Connector, NEMA 5-15, Perma-Tite Extreme Grade Watertight, 15A/125V

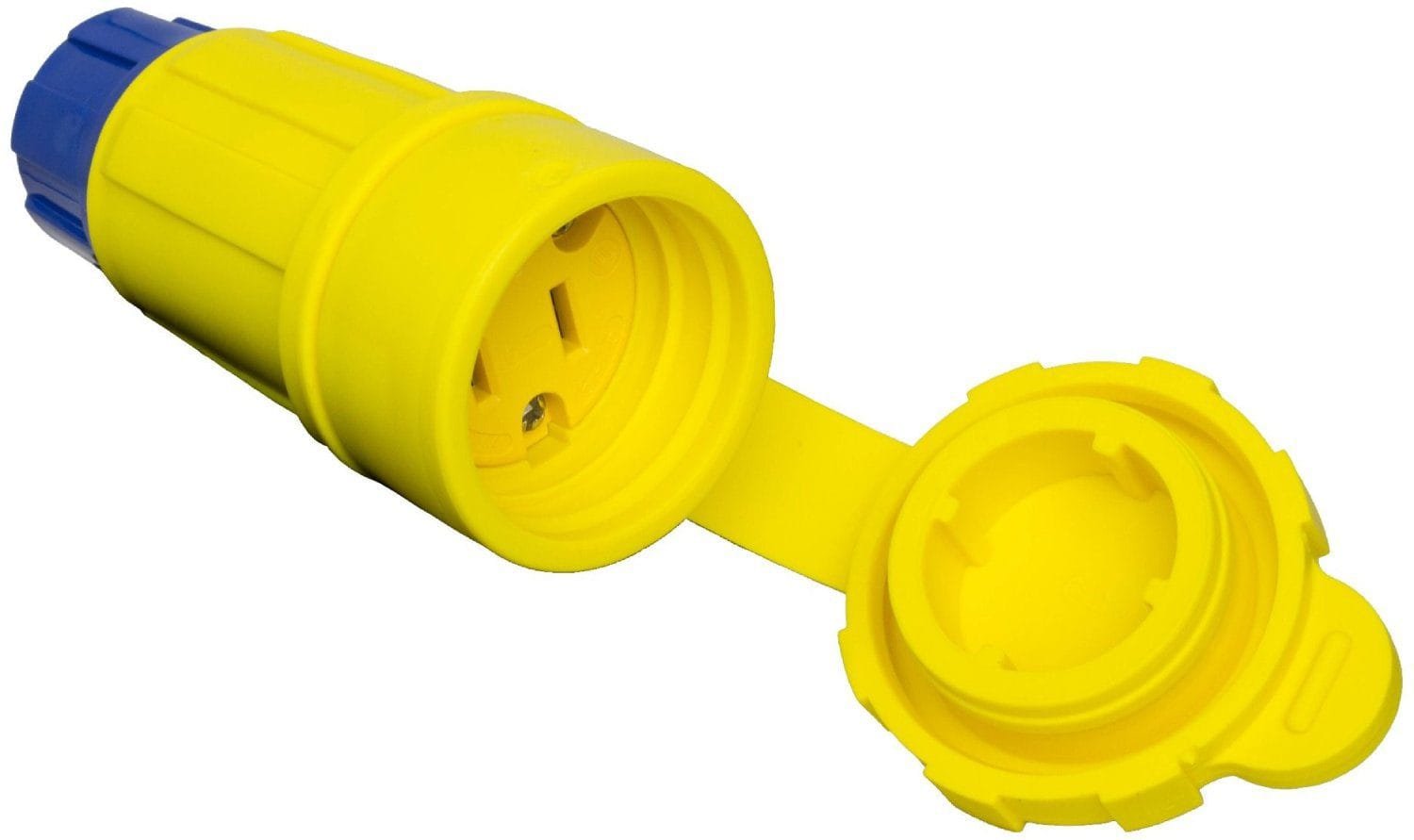

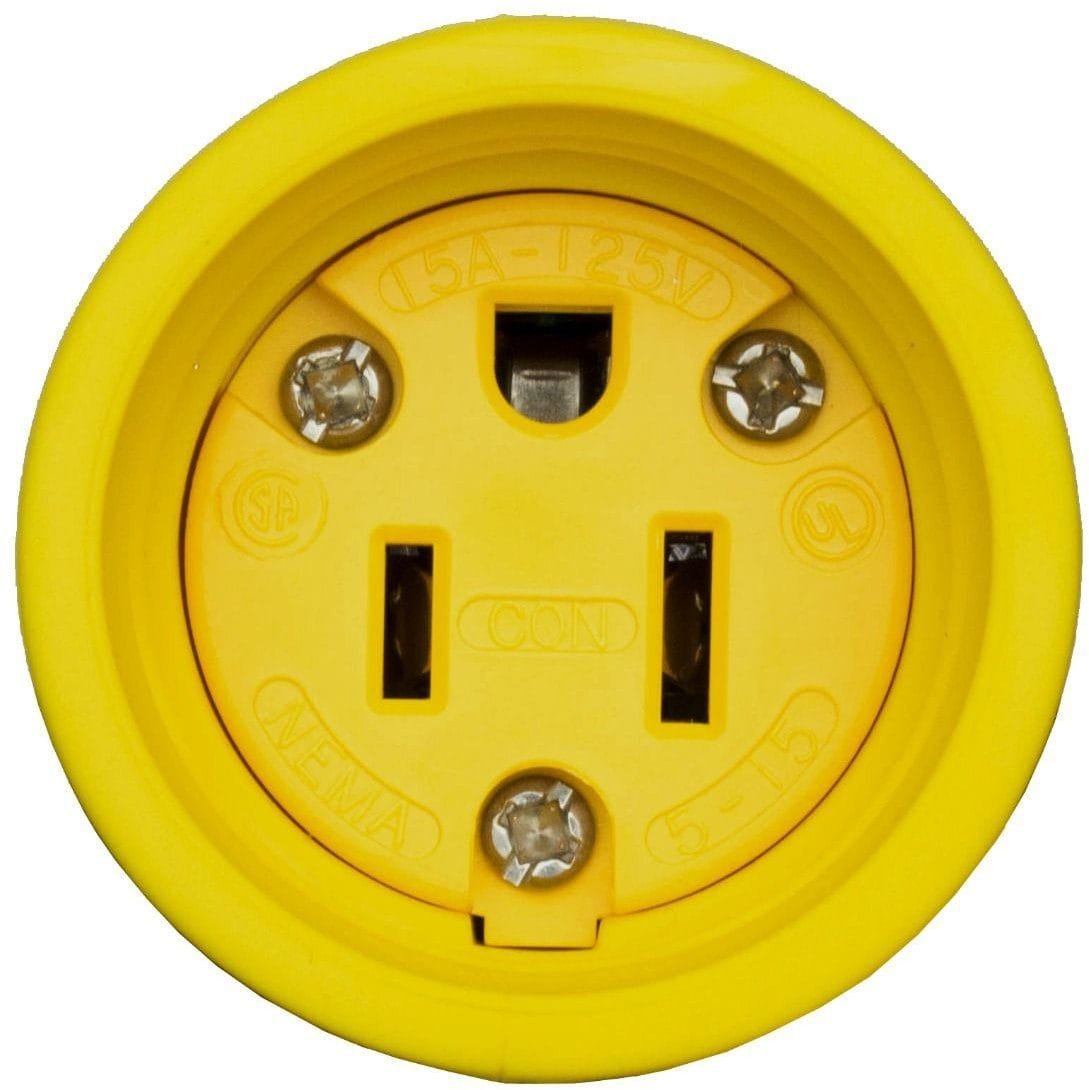

Ericson 1610-CW6P is a connector, NEMA 5-15 configuration, and Perma-Tite Extreme Grade, IP69K Watertight yellow wiring device. It is a straight blade style connector with 15A and 125V.
Perma-Tite 2 plugs and connectors are engineered and manufactured to the highest quality standards to provide the ultimate electrical service and protection. They are designed and proven to do their best under the worst conditions in a broad array of the most severe food processing, industrial, marine, construction, and petro-chemical work environments.
Perma-Tite™ Single Outlet FS Cover Plates – FS Series
- Weather-resistant boot seals around Ericson Perma-Tite™ plug to provide weather-resistant protection
- Spring-loaded flip-lid covers receptacle when not in use includes cover plate, rubber boot, stainless steel mounting plate/mounting screws
- Impact, chemical & corrosion resistant construction
- Mounts easily to FS and FD boxes and any flat surface
Electrical/Electrical Plugs and Connectors Template | |
|---|---|
| Maximum Current | 15 A |
| Maximum Voltage | 125 V |
| Straight Blade | Yes |
| NEMA Rated | Yes |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CSA, ETL, UL |
| Product Weight | 0.32 LBS |
| Shipping Weight | 1.60 LBS |
| HTS/Schedule B Number | 8536694020 |
| ECCN Number | EAR99 |
| Country of Origin | United States |
| Shipping Height | 2.00 IN |
| UPC | 782862824771 |
| Shipping Length | 12.00 IN |
| Shipping Width | 9.00 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresSpec Sheets
| Weight | 0.32 lbs |
|---|
