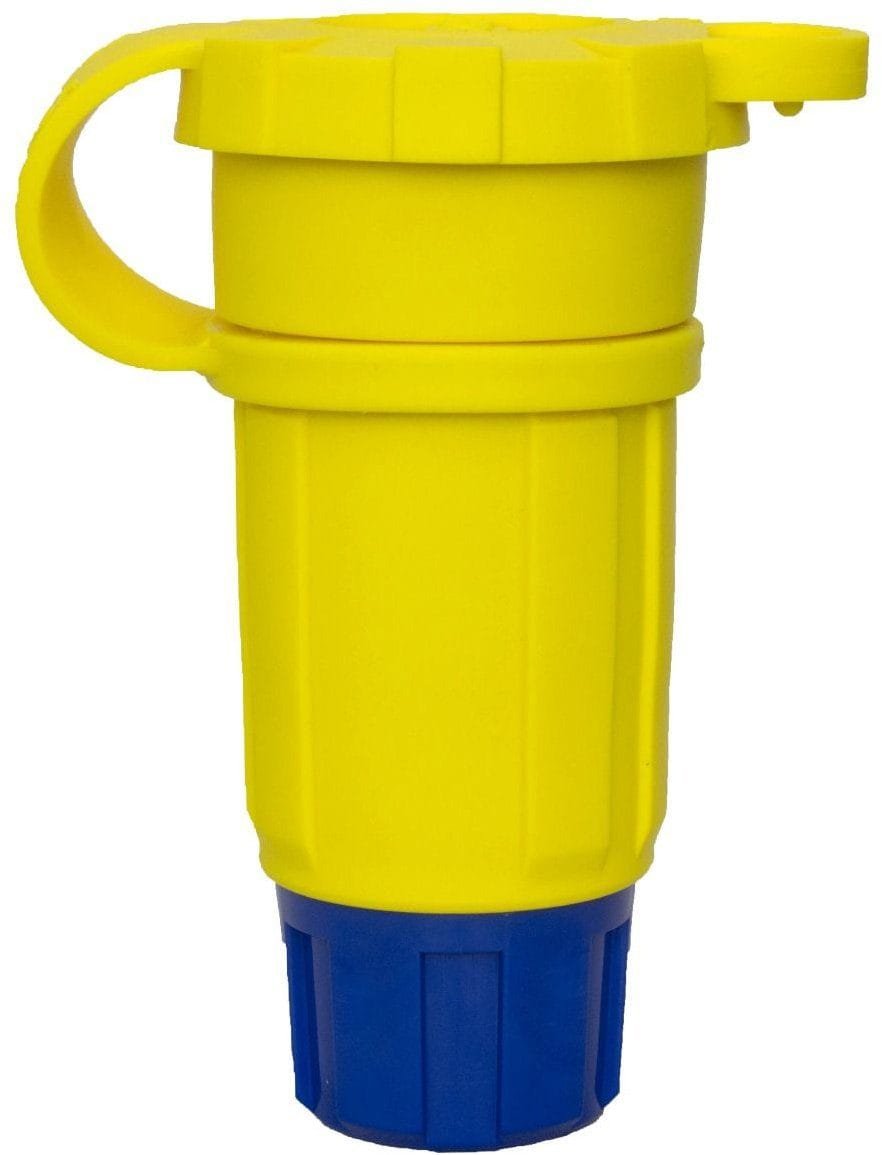

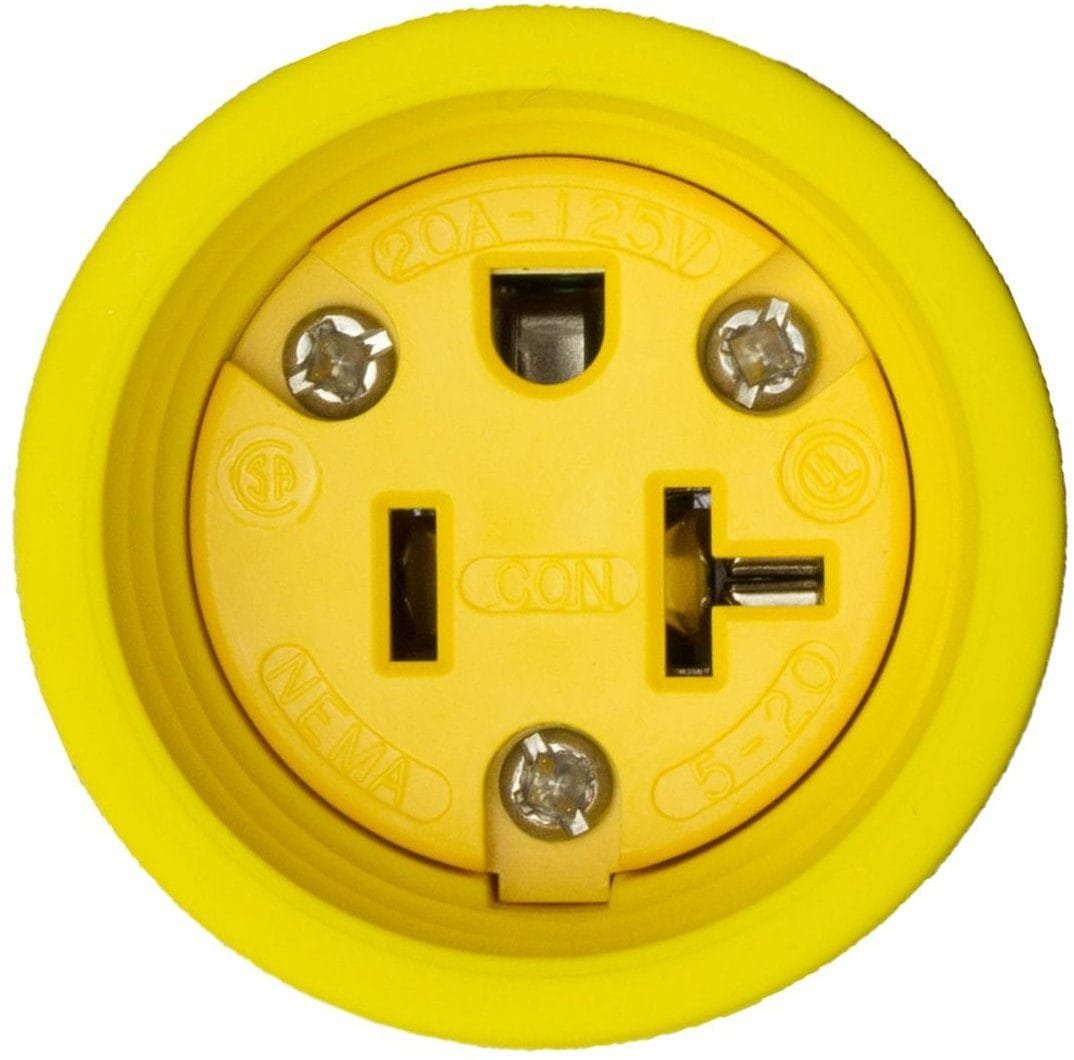

Ericson 1612-CW6P – Straight Blade Connector, NEMA 5-20, Perma-Tite Extreme Grade Watertight, 20A/125V

• UL, ETL, and cETL Listed & CSA Certified
• Devices resist high-pressure hose down of 1,000psi
• Plug & Connector bodies made with PBT
• Keyed body and cover for easy alignment/assembly

Ericson 1612-CW6P is a connector, NEMA 5-20 configuration, and Perma-Tite Extreme Grade, IP69K Watertight yellow wiring device. It is a straight blade style connector with 20A and 125V.

Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop-down connector in a food processing plant during a Washdown procedure.

Perma-Tite 2 plugs and connectors are engineered and manufactured to the highest quality standards to provide the ultimate in electrical service and protection. They are designed and proven to do their best under the worst conditions in a broad array of the most severe food processing, industrial, marine, construction, and petro-chemical work environments.

Applications:

• Food processing
• Pulp and paper mills
• Refineries and Petro Chem Facilities
• Shipyards
• Utilities
• Marine

• Weather-resistant boot seals around Ericson Perma-Tite™ plug to provide weather-resistant protection

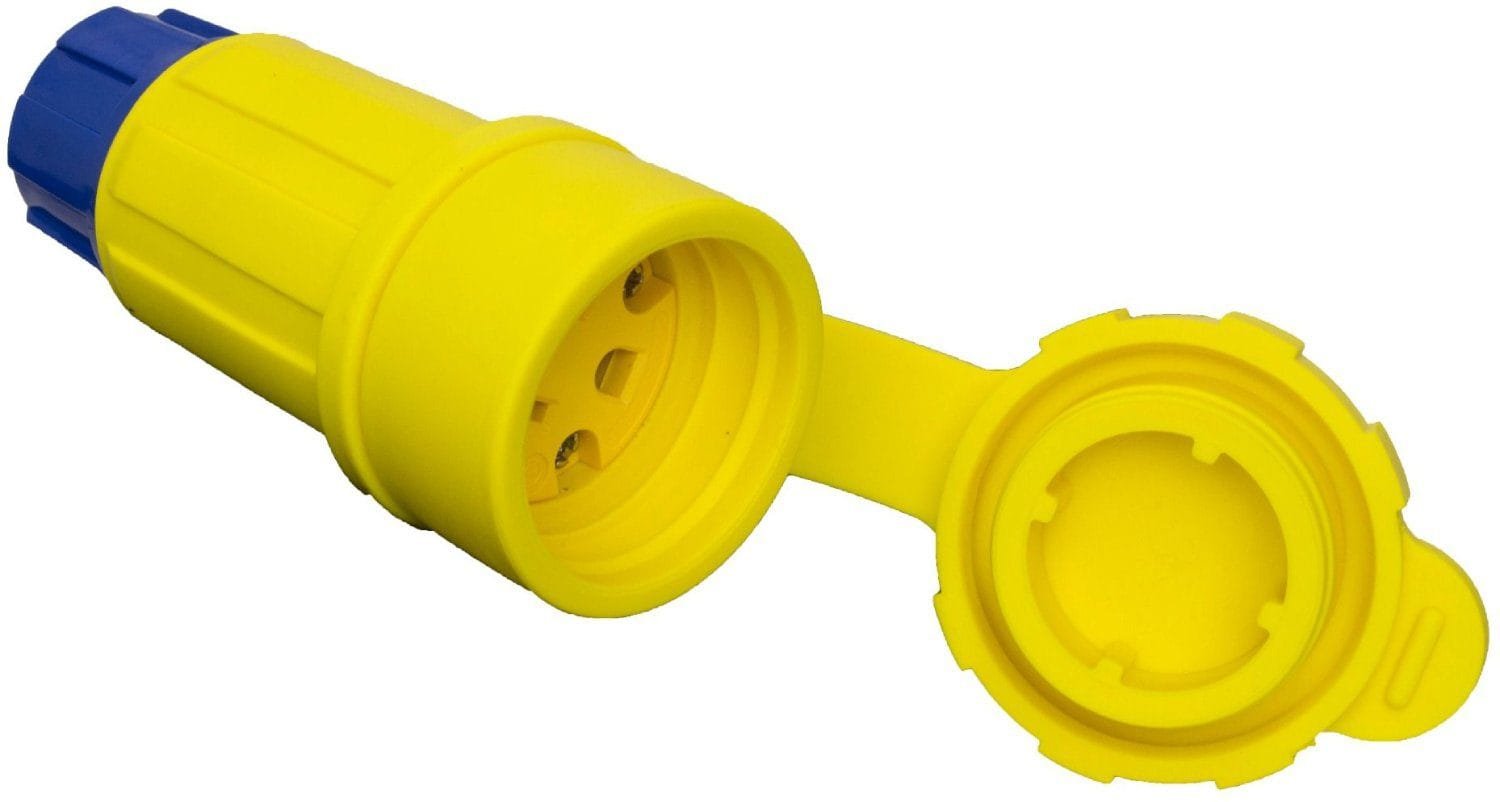

• Spring-loaded flip-lid covers receptacle when not in use includes cover plate, rubber boot, stainless steel mounting plate/mounting screws
• Impact, chemical & corrosion resistant construction
• Mounts easily to FS and FD boxes and any flat surface
