Ericson 6123-100-1612CG Electrical Cord Reel
42 people are viewing this product right now
Original price was: $4,717.97.$4,246.17Current price is: $4,246.17.
Shipping calculated at checkout.
Estimated delivery:5 days
CBL REEL, 100” #12/3 SOW w/1612-CG
- Our 6000 Series reels are your top-quality, low-cost alternative to other spring reels of this capacity
- These reels offer heavy-duty performance at some of the most attractive prices in the market
- Excellent performance in industrial indoor and outdoor applications (wet or dry)
- Built to NEMA 4 Standards/CSA certified
- Heavy all-steel construction
- Safety-yellow powder-coated finish
- Standard two-piece roller-guide design for maintainability, with a 345° mounting range
- Safety-sealed, lifetime lubricated spring motor cannister
- Generously sized slip ring housing with fully articulating brushes for flawless contact in adverse conditions
- Variety of ring amp ratings from 35-150 A
- Reels are sized to handle Type SOW, Type W or Type G cable
- Add an extra 7 feet of cable for hookup/safety wrap, as well as an extra 10% of total travel length for stretch applications
- Primary not supplied with reels

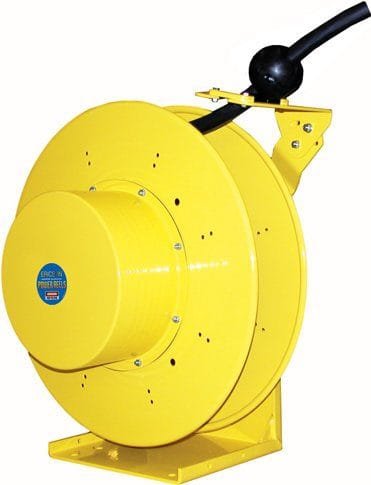

- Reel Shown with optional pivot base
- Available with up to 150’ of #12/3 600 volt cable
- UL, cUL listed models with up to 70’ of cable
- CSA certified models with up to 150’ of cable
- 35 A, 600 Volt slip ring
- Typical Applications:
- General Industrial – Dry environments where subject to frequent use to supply light or power to portable or moving equipment
- Heavy Industrial – Dry or wet areas where rain, spray or other moisture is present. Reel used to supply light or power to portable or moving equipment
Guarantee Safe and Secure Payment Checkout
Description
Reels are your top-quality, low-cost alternative to other spring reels of this capacity. These reels offer heavy-duty performance at some of the most attractive prices in the market. Excellent performance in industrial indoor and outdoor applications (wet or dry).
Electrical/Cable Reels Template | |
|---|---|
| Wire/Cable Length | 100 Ft |
| Maximum Current | 20 A |
Product General Attributes | |
| Unique Features | Excellent performance in industrial indoor and outdoor applications (wet or dry). Built to NEMA 4 Standards/CSA certified. Heavy all-steel construction |
| Safety Approval | CSA |
| Country of Origin | United States |
