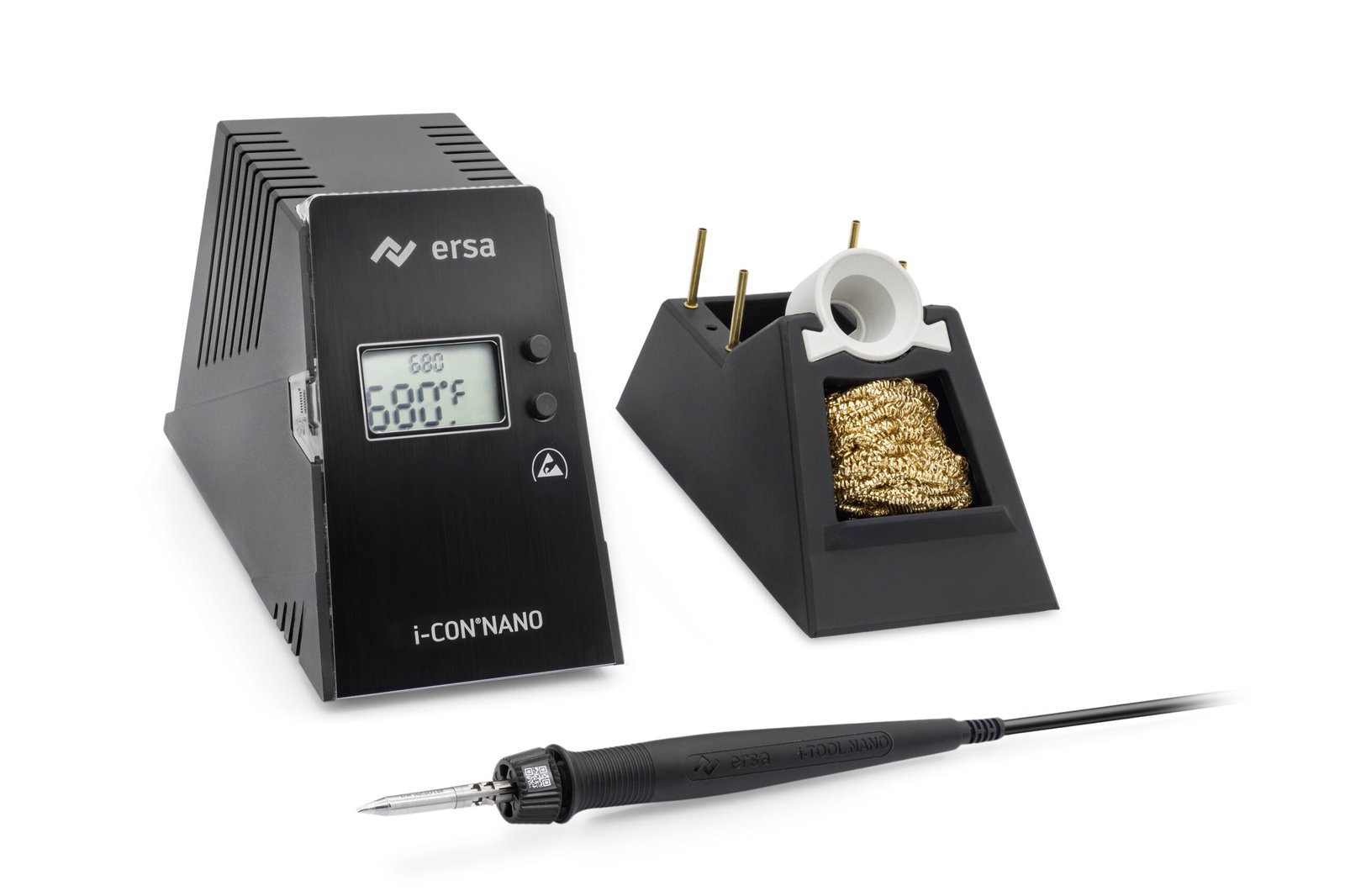

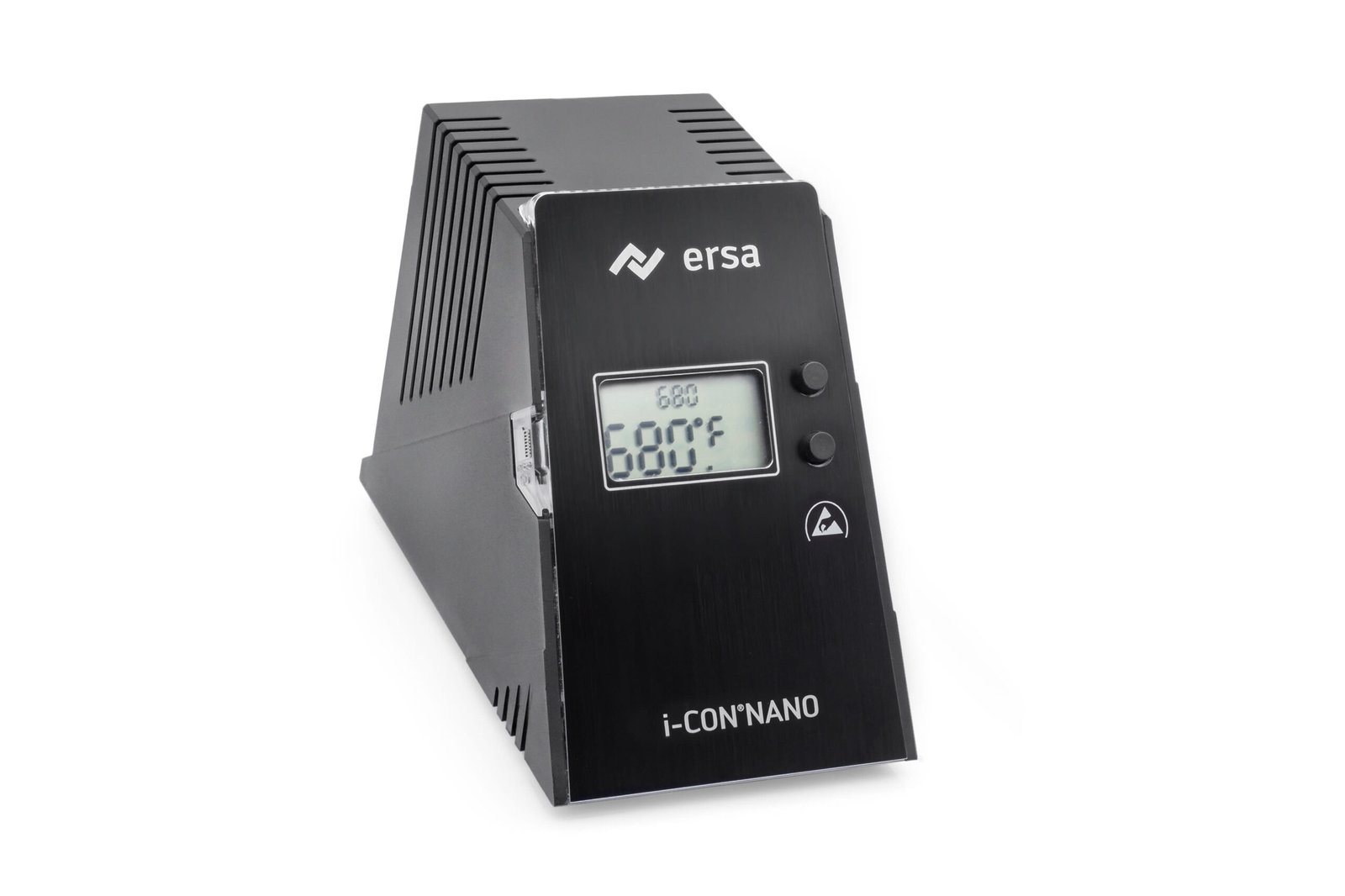

Ersa i-CON NANO MK2 – Compact Soldering Station with Iron, Tip, Holder, and Sponge (115 V)

• Uses 142 series soldering tips
• Includes soldering station i-CON NANO MK2 (1IC1235A00A67), i-TOOL NANO MK2 soldering iron (0125CDK) with tip (0142CDLF16), holder (0A59)
• Very small footprint (145 x 80 mm) – saves valuable desk space
• Three fixed temperatures or adjustable temperature setting from 150 to 450 °C
• Settable energy levels

The i-CON NANO MK2 realizes ESD safety including potential equalization up to the soldering tip and is the ideal entry-level model for the professional sector and the industry. It is fast and efficient, and it provides good value for money.

An interesting feature for this product class is the configuration of the station via PC software and microSD card. In addition to the continuously variable temperature control, this allows three fixed temperatures and three energy levels to be programmed individually, so that it is possible to switch quickly between the parameters depending on the soldering job. The standby function protects the soldering tip and significantly increases its service life. The soldering station can also be locked for other users via the microSD card. Operation is effected via the two buttons next to the easy-to-read LC display.

Weighing only 30 g, the i-TOOL NANO MK2 soldering iron is extremely ergonomic, making it a pleasure to work with. Heat-up from room temperature to operating temperature only takes 9 seconds. The integrated temperature sensor reacts immediately and accurately, ensuring a constant temperature for safe soldering, even with sensitive components.

With the 142 series, a comprehensive range of cost-effective soldering tips is available for a wide variety of applications.

Compatible with 142 series tips

See handpiece and tool compatibility guide here

See Ersa tip guide here

The i-CON NANO suits all SMT und PTH soldering applications in production, repair and R&D. With the i-TOOL NANO soldering iron the tip series 142 can be used.
