Extech 380560 – High Resolution Precision Milliohm Meter (110VAC)
12 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Milliohm Meter 110 VAC
- 7 ranges for wide low resistance measurements
- High resolution to 0.01mOhm
- 1999 count display with 0.8″ digits
- 4-wire test cable with Kelvin clip connectors
- Automatic zero
- Built-in comparator for Hi/Lo/Go resistance testing or selection
- Limited Two Years Warranty
Guarantee Safe and Secure Payment Checkout
Description
Extech 380560
- Resistance testing or selection
- High resolution to 0.01m
- Built-in comparator for Hi/Lo/Go
- 1999 count display with 0.8″ digits
- 5V test voltage

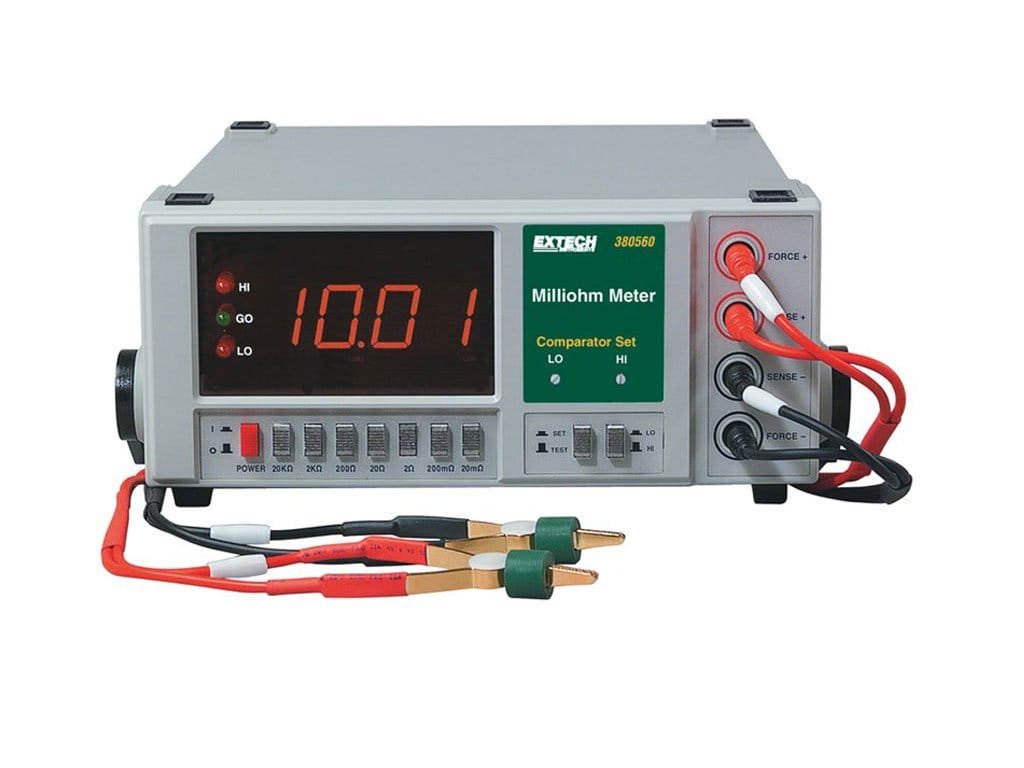

High Resolution Precision Milliohm Meter (110VAC)
Benchtop meter provides resolution down to 0.01mΩ
The 380560 benchtop meter provides resolution down to 0.01mΩ using 4-wire Kelvin clip test leads. Featuring 7 ranges for wide low resistance measurements, 1999 count display with 0.8″ digits, automatic zero function. Built-in comparator for Hi/Lo/Go resistance testing or selection.
Micro / Milli / Meg Ohmmeters/Milli-Ohmmeter Template | |
|---|---|
| Style (Milli-Ohmmeter) | Bench |
| Line Power or Battery power | Line Power |
| Minimum Resistance | 0.01 m Ohms (0.00001 Ohms) Minimum Resistance 20mΩ 0.01mΩ 1A |
| Maximum Resistance | 20 K Ohms (20000 Ohms) Maximum Resistance 20mΩ 0.01mΩ 1A |
| Max Resolution (Ohms) | 0.01 m Ohms (0.00001 Ohms) |
| Variable Test Current | Yes Variable Test Current 20mΩ 0.01mΩ 1A |
| Maximum Current | 1 A |
| Minimum Current | 10 uA |
| Selectable Ranges | Yes Selectable Ranges Seven selectable ranges |
| Alarm | No |
| Comparator Function | Yes Comparator Function Built-in HI/LO/GO testing with audible beeper |
| Digits Display | 6 |
| Kelvin Four-Terminal Measurement | Yes Kelvin Four-Terminal Measurement 4-Terminal Kelvin |
Product General Attributes | |
| Unique Features | 7 ranges for wide 20.00mO to 20.00kO low resistance measurements High resolution to 0.01mO 1999 count display with large 0.8″ digits 4-wire test cable with Kelvin clip connectors Automatic zero Built-in comparator for Hi/Lo/Go resistance testing or selection Complete with 4-wire cables with Kelvin clip connectors and power cord |
| Warranty | 2 YEARS |
| Warranty Details | Limited Two Years Warranty |
| Safety Approval | CE |
| Product Weight | 4.85 LBS Product Weight 2.2kg |
| Product Height | 3.5 IN |
| Product Length | 11 IN Product Length 280 x 210 x 90mm |
| Product Width | 8.3 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.33.3400 |
| ECCN Number | EAR99 |
| Calibration Included | Calibration Included Call customer service for details on services available. |
| Power Supply Voltage | 120V 50/60 Hz Power Supply Voltage 110VAC, 60Hz |
| Country of Origin | Taiwan |
| Shipping Height | 6.20 IN |
| Shipping Length | 14.50 IN |
| Shipping Width | 11.20 IN |
