Description

Extech EX430A
- Averaging/True RMS: True RMS
- Basic Accuracy (VDC): ±0.3%
- AC Voltage: 0.1mV to 600V
- DC Voltage: 0.1mV to 600V
- AC Current: 0.1μA to 10A
- DC Current: 0.1μA to 10A
- Resistance: 0.1Ω to 40MΩ
- Capacitance: 0.01nF to 100μF
- Frequency: 0.001Hz to 10MHz
- Temperature (Type K): -4 to 1382°F (-20 to 750°C)
- Duty Cycle: 0.1% to 99.9%
- Diode Test/Continuity: Yes

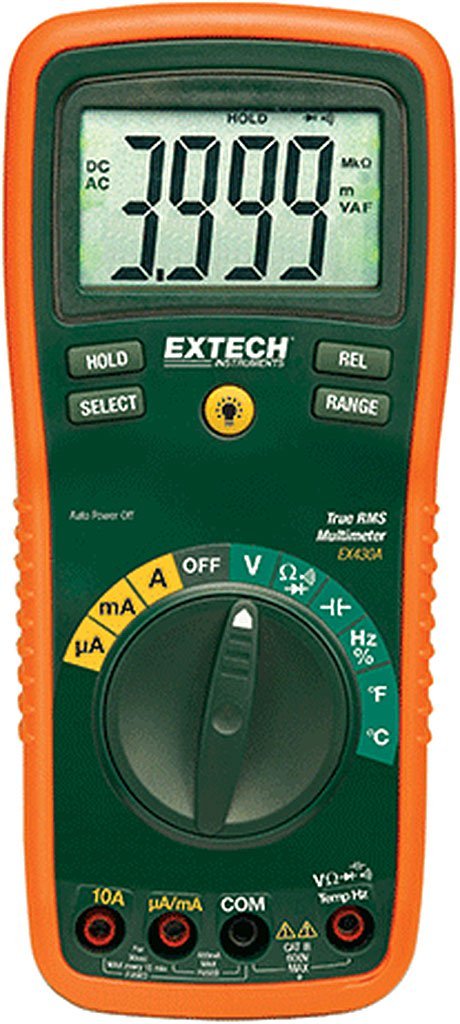

11 Function True RMS Professional Multimeter
True RMS, autoranging DMM with large digit LCD display and temperature function
The Extech EX430A True RMS Autoranging Multimeter (with K Type, Capacitance, Frequency, and Duty Cycle) is a professional grade True RMS multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600V, AC and DC current to 10A, resistance to 40MOhm, continuity and diode test. Also includes a Type K thermometer function for contact or air temperature measurements from -4 to 1832°F (-20 to 750°C). Advanced functions include Capacitance, Frequency and Duty Cycle. The meter comes complete with test leads, Type K temperature probe, 9V battery, protective holster, adjustable tilt stand and Velcro hanging strap.
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 600 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.1 uA (0.00010 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.1 uA (0.00010 mA) |
| Basic Accuracy V DC | ±0.3% |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Duty Cycle % | 0.1% to 99.9% |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE |
| Product Weight | 0.75 LBS |
| Product Height | 2 IN |
| Product Length | 7.4 IN |
| Product Width | 3.2 IN |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
