Extech IR270 – IR Thermometer with Color Alert

• Take non-contact temperature measurements from -4 to 1202°F (-20 to 650°C)
• Max resolution of 0.1°F/°C and basic accuracy of ±(1% of reading + 2°F/1°C)
• 12:1 distance to spot (target) ratio
• Built-in laser pointer identifies target area with on/off button
• Adjustable emissivity (0.10 to 1.00) increases measurement accuracy

Fast response with high accuracy, the Extech IR270 is ideal for quick checks of multiple spots in a process or for catching spikes in temperature. Easy programmable High/Low Alarm with tri-color display and audible alarm measures non-contact temperature up to 1202°F (650°C).

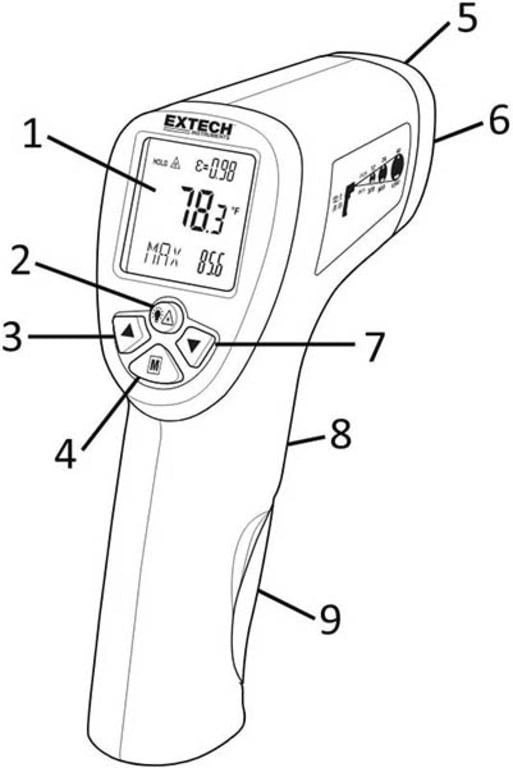

1. Backlit multifunction LCD

2. Laser/Backlight/Log button

3. Up arrow button

4. Secondary display mode button

5. Laser pointer lens

6. IR thermometer lens

7. Down arrow button

8. Trigger (pull and hold to scan surfaces)

9. Battery compartment (9V)

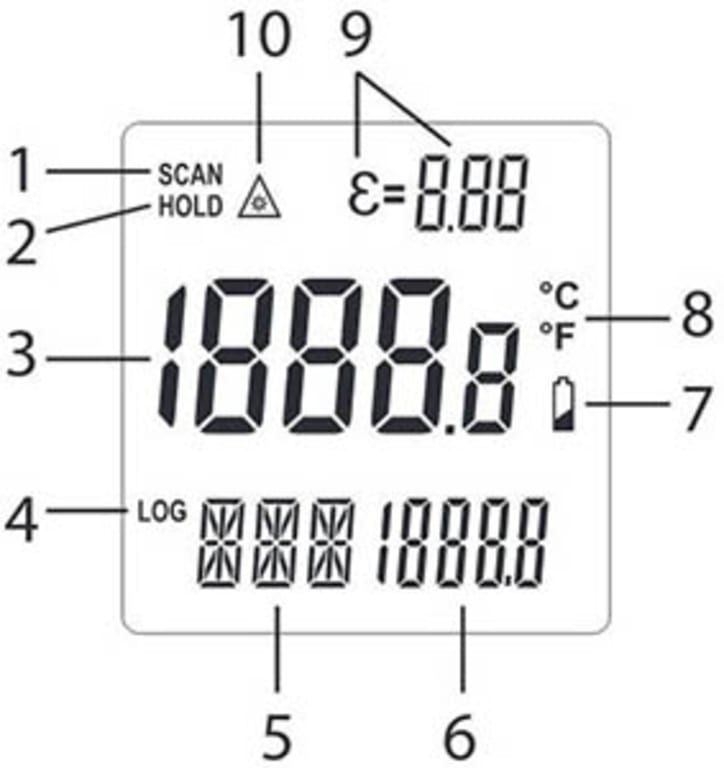

1. Measurement Scan mode. The icon flashes while the trigger is pulled. The displayed reading represents the temperature of the scanned surface

2. Data hold mode. Reading is held after trigger is released

3. Primary display. Surface temperature reading

4. Datalogger mode

5. Secondary display mode icons (EMS, MAX, MIN, DIF, AVG, HAL, LAL)

6. Secondary Display value

7. Battery status icon. Flashes when battery voltage is critically low.

8. Temperature units (selectable)

9. Emissivity. Selectable from 0.10~1.00

10. Laser pointer icon. Appears when laser is enabled
