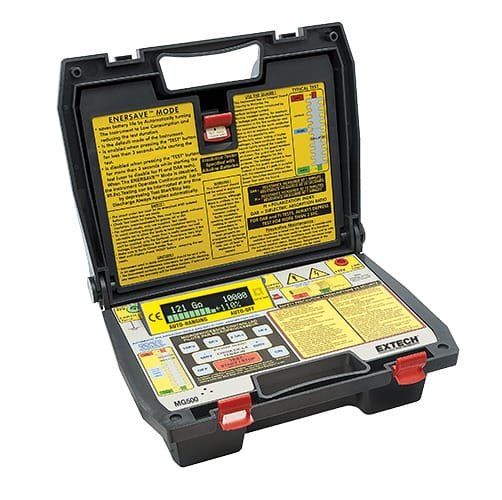

Extech MG500 – Digital High Voltage Insulation Tester
19 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
Digital High Voltage Insulation Tester
- High test voltages up to 10kV with Insulation Resistance to 500GOhm
- Polarization Index (PI) measurement
- Dielectric Absorption Ratio (DAR) measurement
- EnerSave™ limits test duration to 10 seconds to save energy
Guarantee Safe and Secure Payment Checkout
Description
Extech MG500
- Insulation Resistance: 800kΩ to 500GΩ ( Autoranging )
- Resolution: 1kΩ
- Basic Accuracy: ±5%
- Test Voltages: 500VDC to 10kVDC (adjustable in 500V steps)
- Preset Buttons: 1kV, 2.5kV, 5kV, 10kV
Digital High Voltage Insulation Tester
Tests voltage up to 10kV and measures Insulation Resistance to 500GOhm
The MG500 is a digital high voltage insulation tester that tests voltage up to 10kV and measures insulation resistance to 500GOhm. The MG500 has a CAT III 300 Volt safety rating. This product is complete with a year warranty, built-in heavy-duty carrying case with cover, test leads, alligator clips, and 8 x C batteries.
Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template | |
|---|---|
| IR Test Voltage | 10,000 V |
| Maximum Insulation Resistance | 500 G Ohms |
| Automated Test Results | Dielectric Absorption Ratio, Step Voltage |
| Type | Battery |
| Minimum Insulation Resistance | 800 K Ohms (0.0008 G Ohms) |
| Power Supply | Battery |
| CAT Rating | III |
| CAT Voltage | 300 V |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Product Weight | 7.9 LBS |
| Product Height | 6.3 IN |
| Product Length | 13 IN |
| Product Width | 10.2 IN |
| Calibration Included | Factory Calibration |
| Battery Type | C Battery Type 8 x C |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
| Weight | 7.9 lbs |
|---|---|
| Dimensions | 13 × 10.2 × 6.3 in |
