Extech PQ3450 – 3-Phase Power Analyzer/Datalogger
18 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
3-Phase Power Analyzer/Datalogger
- Large dot-matrix sun-readable numerical backlit LCD with easy-to-use onscreen menu
- Full system analysis with up to 35 parameters: V (phase-to-phase) V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), Phase angle
- Optional 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)
- Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
- Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
- Wide sampling rate range (2 seconds to 2 hours)
- Built-in Clock and Calendar
Guarantee Safe and Secure Payment Checkout
Description
Extech PQ3450
- AC Voltage (True rms): 600.0V
- AC Current: 3000A
- Power Factor: 0.00 to 1.00
- Frequency Range: 45Hz to 65Hz
- Phase: -180° to +180.0°
- Datalogging: 30,000 readings (2GB SD memory Card)
3-Phase Power Analyzer/Datalogger
Datalogging Power Analyzer (up to 30,000 sets of measurements)

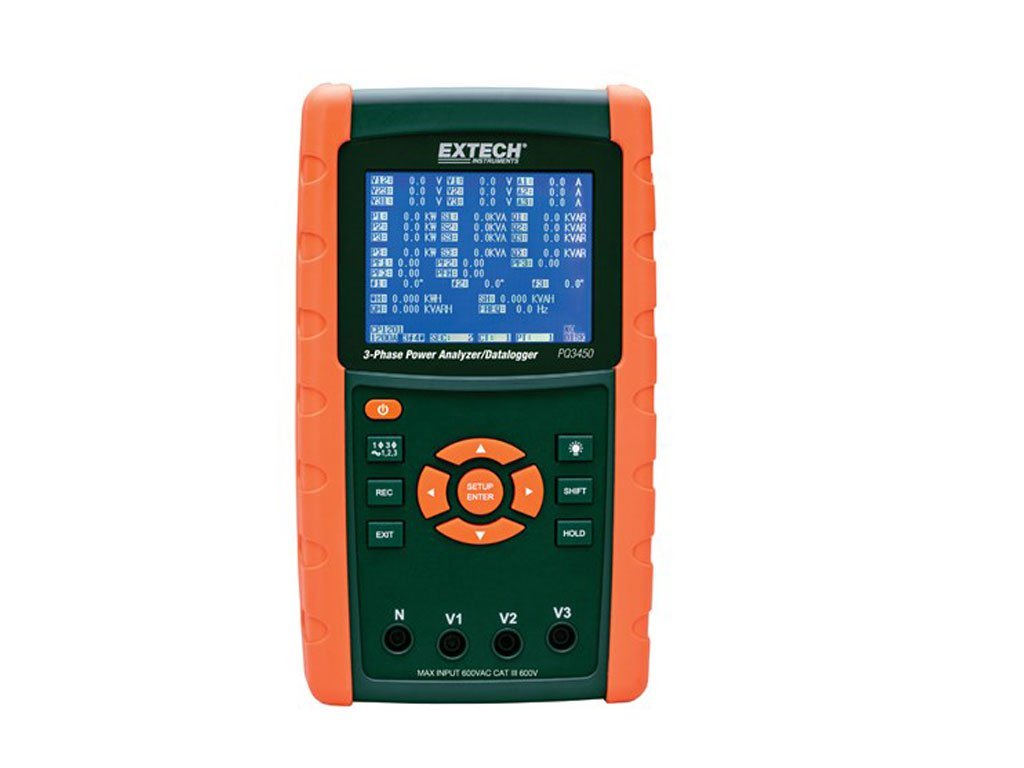

The PQ3450 is a 3-phase power analyzer/data logger capable of logging up to 30,000 sets of measurements in Excel format on a removable SD memory card. The product is easy-to-hold with a rugged over-molded housing and features a built-in clock and calendar, 35 parameters and a CAT III 600V safety rating.
Power Measurement/Power Quality Analyzer Template | |
|---|---|
| Type (Power Quality) | 3 Phase |
| CAT Rating | III |
| CAT Voltage Rating (V) | 600V |
Product General Attributes | |
| Warranty | 2 YEARS |
| Warranty Details | Limited Two Years Warranty |
| Safety Approval | CE, UL |
| Storage | SD Card |
| Product Weight | 2.2 LBS |
| Product Height | 2.52 IN |
| Product Length | 8.86 IN |
| Product Width | 4.92 IN |
| HTS/Schedule B Number | 9030.39.0100 |
| ECCN Number | 3A992 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 12.50 IN |
| Shipping Length | 21.00 IN |
| Shipping Width | 16.25 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 8.86 × 4.92 × 2.52 in |
