FLIR DM284 Thermal Imaging TRMS Multimeter with TAZ74 18″ Flexible Current Probe
20 people are viewing this product right now
Original price was: $1,022.97.$833.22Current price is: $833.22.
Shipping calculated at checkout.
Estimated delivery:5 days

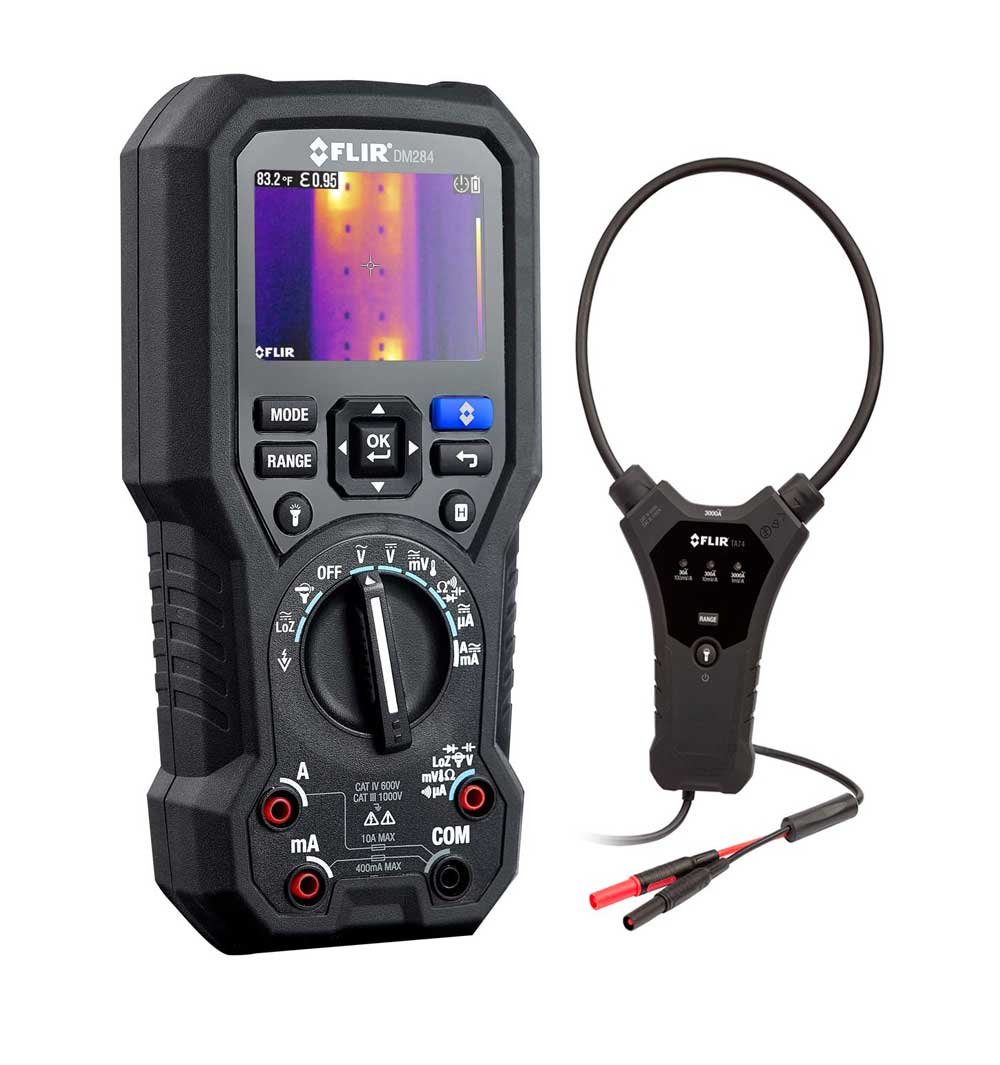

FLIR DM284 Thermal Imaging TRMS Multimeter with TAZ74 18″ Flexible Current Probe
- Includes TA74 3000A Universal Flex Current Probe Accessory, 18 in
- 18-function DMM including VFD mode, True RMS, LoZ, and NCV
- Thermocouple input
- 160×120-resolution FLIR thermal imager
- ≤ 150 mK Sensitivity
- Temperature Range: 14°F to 302°F (-10°C to 150°C)
- FOV: 46° x 35°
- Fixed Focus
- 1000V AC/DC
Guarantee Safe and Secure Payment Checkout
Description
FLIR DM284 Imaging Multimeter with IGM
- Image Resolution: 19,200 Pixels (160 X 120)
- Temperature Range: 14°F to 302°F (-10°C to 150°C)
- FOV: 46° x 35°
- Measure up to 1000V AC/DC
- Type K Thermocouple input (-40°F to 752°F)
- 10 Year Warranty
Quickly locate, record and resolve electrical issues with one simple to use tool. The FLIR DM284 is the latest in electrical testing technology. Harnessing the power of thermal imaging, it allows users to quickly scan a general area for hot spots. After finding expected problem areas, they can simply use the DM284’s 18 function TRUE-RMS digital multimeter.
Your all-in-one tool
The FLIR DM284 Imaging Multimeter with IGM Technology has been developed by FLIR to allow users to more quickly and more accurately detect electrical problems. With its built-in 160X120 thermal sensor and IGM technology, the DM284 is able to point to the exact location of electrical problems through hotspots during the troubleshooting process. Instead of connecting to each individual component, users can easily use the thermal imager to scan all components and observe where the problem lies. Saving a substantial amount of time and resources. After finding the location of the issue with the thermal imager, use the DM284’s Multimeter functions to confirm your findings and obtain exact measurements.
IGM (Infrared Guided Measurement)
- Find problem areas before you measure
- All-in-one tool. No need to carry multiple expensive pieces of equipment
- Scan for hazards while avoiding direct contact
Resolve Challenging Electrical and Temperature Related Issues
- Fully functional DMM with 18 different functions
- Thermocouple compatible
- View electrical and temperature information at the same time.
Designed for Functionality in the Field
- Includes integrated work lights, laser pointer and more. Allowing you to use the DM284 in areas with restricted access or low light.
- Intuitive menu design and user interface for simple operation
- Iron, Rainbow or Greyscale Thermal Color Schemes
- Rugged Housing Tested by FLIR
FLIR TA74 Universal Flex Current Probe
- Compatible with most DMMs and clamp meters, regardless of brand
- Bright, dual LED worklights provide built-in illumination for dark cabinets
- Rugged design drop-tested to 3 meters, portable and lightweight
- AC voltage output for wide compatibility
- Adds 3000A AC current measurements to existing meters
The FLIR Universal Flex Current Probe accessories are designed to add capabilities, simplify challenges, and get the best readings with your existing meter. Made with a narrow flexible coil clamp and locking mechanism, the TA72 and TA74 let you easily take measurements in tight or awkward spots – a difficult task with a traditional hard jaw clamp meter. The connection is a standard banana plug and the output is a voltage signal, so it’s compatible with most DMMs and clamp meters, regardless of brand.*
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Current AC | 3000 A Maximum Current AC Using the included Flex Clamp |
| Minimum Current AC | 400 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 400 mA |
| Backlight | Yes |
| Manual/Autoranging | Auto-ranging |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 1,000 V |
| Low-Pass Filter | Yes |
Thermal Imagers/Building and Industrial Thermal Imagers Template | |
| Detector Size | 160 x 120 Sensor |
| Thermal Sensitivity | 150 mK (NETD) |
| Temperature Range Max | 302 F |
| Temperature Range Min | 14 F |
| Image Frequency | 9 Hz |
| Field of View | 46×35 Degrees |
| Screen Size | 2.8 IN |
| IR/Overlay Fusion Image | No |
| Video Output | No |
| Focus | Fixed |
| Laser Spot | Yes |
| Picture in Picture | No |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | No |
| Accuracy | 3°C or 3.5% |
| Battery operating time Continuous | 3 HR Battery operating time Continuous 3 hrs Alkaline, 12 hrs optional rechargeable battery (TA04 |
| Camera Light | Yes |
| IR Digital Zoom | No |
| Voice Annotation | No |
Product General Attributes | |
| Unique Features | Powerful 160×120 thermal imaging sensor Adjustable emmissivity for more accurate temperature readings Includes bright worklights and laser pointer Multiple color palettes Premium test leads included Built-in non-contact voltage detection |
| Warranty | 10 YEARS |
| IP Rating | IP54 |
| Shipping Weight | 1 LBS |
| HTS/Schedule B Number | 9030.31.0000 |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
