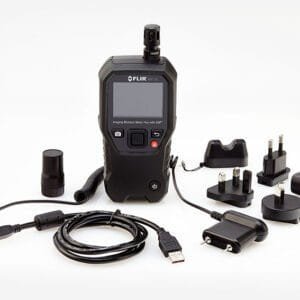

FLIR MR176 Thermo-hygrometer Moisture Meter with IGM, 9Hz
11 people are viewing this product right now
$1,109.00
Shipping calculated at checkout.
Estimated delivery:3 days
FLIR Imaging Moisture Meter Plus Thermo-Hygrometer with IGM, 9Hz
- MR176 Thermo-Hygrometer Moisture Meter with IGM
Visually identify hidden moisture with IGM.
Easily investigate moisture issues and troubleshoot quickly
- An 80 x 60, 4800-pixel Lepton ® thermal imager powers IGM technology, visually indicating potential moisture areas via the color display
- Customize thermal images: select which measurements are integrated (moisture, temperature, relative humidity, dew point, vapor pressure, mixing ratio), and choose from one of four color palettes (Iron, Rainbow, Ice, Greyscale); a lock-image setting prevents extreme hot and cold temperatures from interfering with images while scanning for issues
- Equipped with a laser and cross hair to easily reference the exact location of the potential moisture issue seen in the thermal image
Get precise readings.
Confidently take measurements and analyze readings
- Field-replaceable temperature/relative humidity sensor can simply be removed from meter and exchanged when needed, so you can continue to work and reduce downtime
- Progressive Environmental Stability Indicator removes response time error when you move through a site to different measurement locations, informing you when the relative humidity readings have reached a steady state
- Integrated pinless moisture measurements for fast detection, and external pin probe included with expandable probe options
Convenient and easy to operate.
Get more work done in less time
- Rugged, portable design with intuitive menu system
- Document readings and images to share via included USB cable
- Free FLIR Tools PC software quickly generates reports
Guarantee Safe and Secure Payment Checkout
Description
FLIR MR176 Thermo-hygrometer Moisture Meter with IGM, 9Hz
- MR176 Thermo-Hygrometer Moisture Meter with IGM
Convenient and easy to operate.
Get more work done in less time
- Rugged, portable design with intuitive menu system
- Document readings and images to share via included USB cable
- Free FLIR Tools PC software quickly generates reports
The FLIR MR176 Imaging Moisture Meter Plus with IGM is an all-in-one tool equipped with a built-in thermal camera that can show you exactly where to measure moisture. Featuring Infrared Guided Measurement (IGM) technology, the MR176 helps you quickly scan and target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. Coupled with a field-replaceable temperature and relative humidity sensor, and automatically calculated environmental readings, the MR176 delivers added convenience and ease of use, producing the right measurements — faster.
IGM technology guides you where to measure
Verify moisture with Pinless measurements
Confidently take measurements and analyze readings
Integrated pinless moisture measurements for fast detection
Get more work done in less time
Document readings and images to share via included USB cable
Easily investigate moisture issues and troubleshoot quickly
Equipped with a laser and cross hair to easily reference the exact location of the potential moisture issue seen in the thermal image
Thermal Imagers/Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 80 x 60 Sensor |
| Thermal Sensitivity | 150 mK (NETD) |
| Image Frequency | 9 Hz |
| Field of View | 50×37.5 Degrees |
| Screen Size | 2.3 IN |
| IR/Overlay Fusion Image | No |
| Video Output | No |
| Focus | Fixed |
| Laser Spot | Yes |
| Picture in Picture | No |
| Video Recording | No |
| Touch Screen Display | No |
| Minimum Focus Distance | 10 CM (0.1 M) |
| Accuracy | 1.5 – 2.5% Depending on measurement type |
| Battery operating time Continuous | 18 HR |
| Camera Light | No |
| IR Digital Zoom | No |
| Voice Annotation | No |
General Attributes | |
| Warranty | 2 YEARS |
| Product Weight | 11.4 OUNCES (0.712 LBS) |
| Warranty Details | 2 Years Product, and 10 Years Thermal Imaging Detector when registered within 60 days |
| Product Height | 5.00 IN |
| Product Length | 13.00 IN |
| Product Width | 5.50 IN |
| Country of Origin | China |
Environmental Testers / Physical Property/Moisture Meters Template | |
| Measurement Methods (Moisture Meter) | Pin, Pinless |
| Materials Tested | Brick, Cardboard (Building Material), Concrete, Plaster, Sheet Rock, Wall Board, Wood |
| Measure Temperature | Yes |
| Measure Humidity | Yes |
| Dew Point | Yes |
| Data Hold | Yes |
| Self Calibration | No |
| Min/Max Memory | Yes |
Product General Attributes | |
| Unique Features | FLIR Exclusive Infrared Guided Measurement (IGM™) technology. FLIR is the first in the world to let you see where the moisture problem is before you measure. Pocket-sized |
| Safety Approval | CE, UL |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| Data Logging | Yes |
| HTS/Schedule B Number | 9025805000 |
| ECCN Number | 6A993 |
| Calibration Included | None |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
You must be logged in to post a review.
Manuals/Guides
| Weight | 11.4 lbs |
|---|---|
| Dimensions | 13 × 5.5 × 5 in |
