FLIR Si124-LD – Industrial Acoustic Imaging Camera for Compressed Air Leak Detection

FLIR Si124-LD – Industrial Acoustic Imaging Camera for Compressed Air Leak Detection

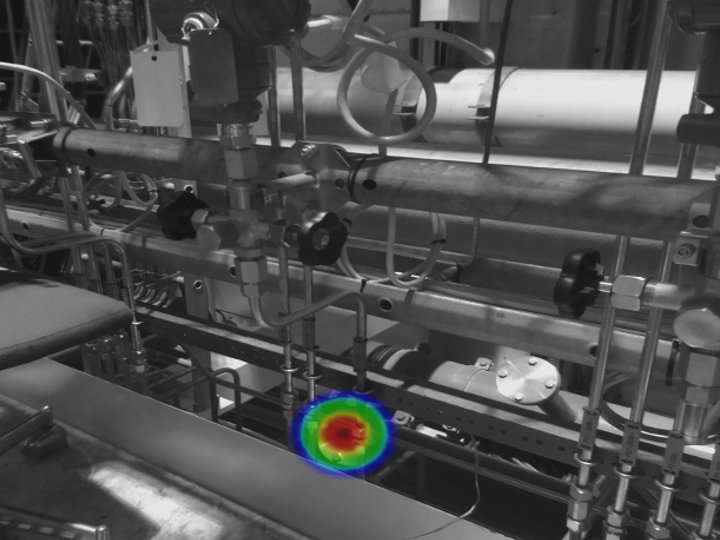

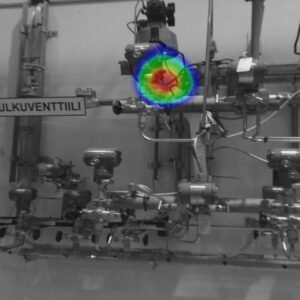

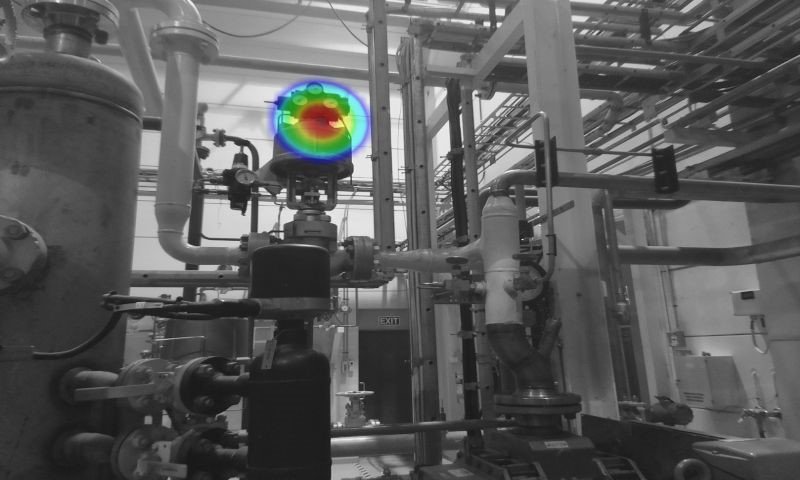

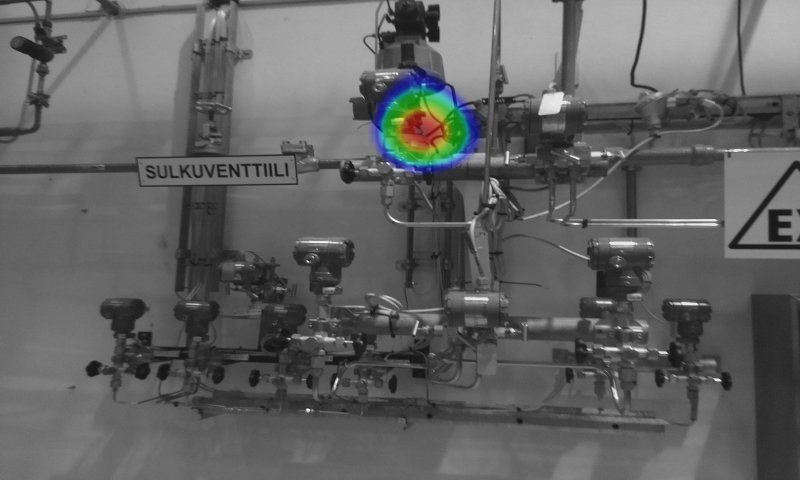

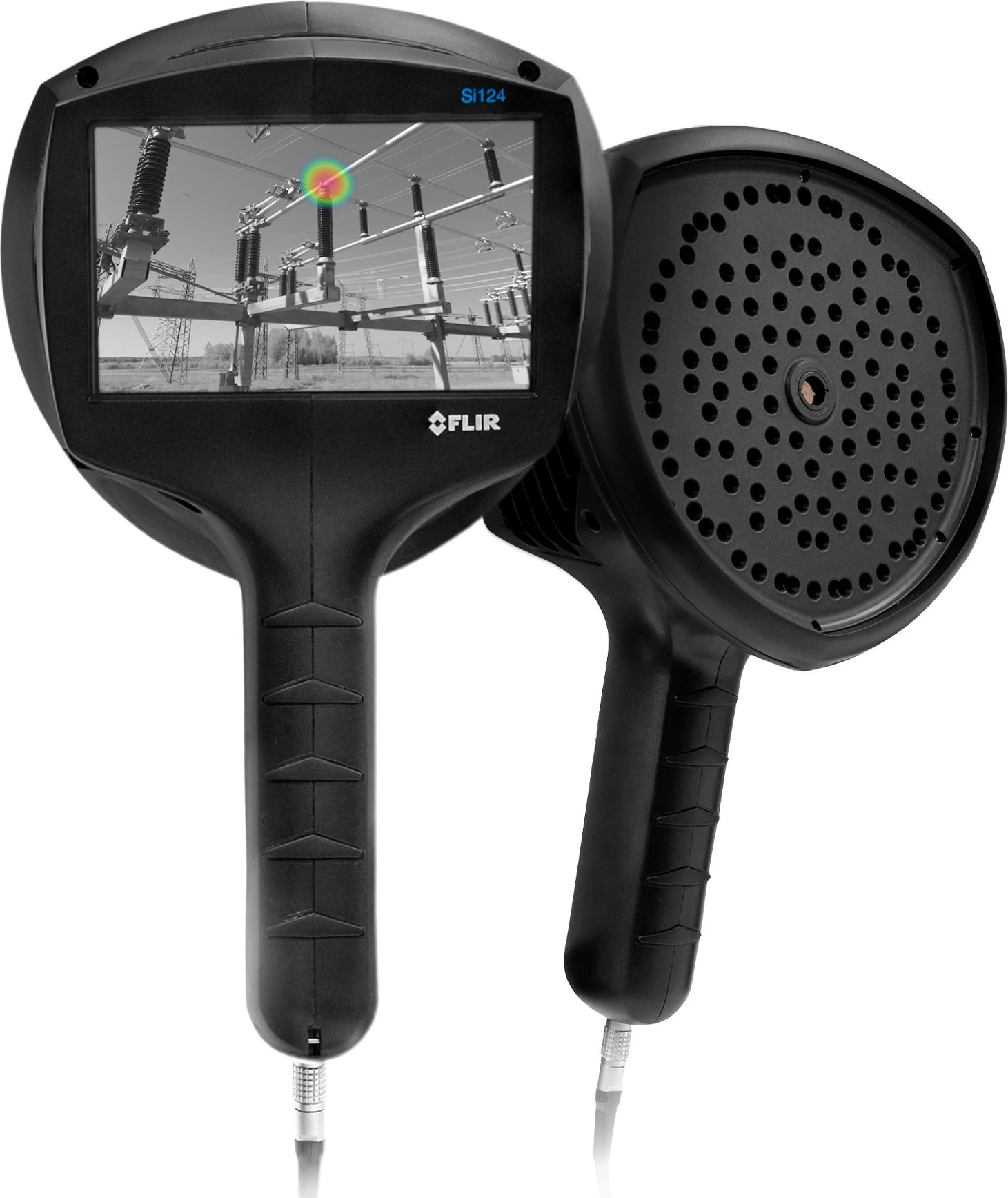

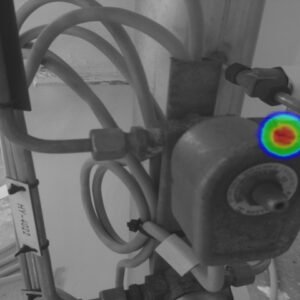

The FLIR Si124-LD is an easy-to-use, stand-alone system for locating pressurized leaks in compressed air systems. This lightweight, one-handed solution is designed to help maintenance, manufacturing, and engineering professionals identify air leaks up to 10 times faster than with traditional methods. Built with 124 microphones, the Si124-LD produces a precise acoustic image that visually displays ultrasonic information, even in loud, industrial environments. The acoustic image is overlaid in real time on a digital camera picture, allowing the user to accurately pinpoint the source of the sound. Equipped with the FLIR Acoustic Camera Viewer cloud service, this smart tool automatically saves images to the cloud after they’re captured. Users can then access stored files and separate sound sources for deeper analysis and classification of problems. Through a regular maintenance routine, the FLIR Si124-LD can help facilities save money on utility bills and delay the expense of installing new compressors.

Compressed air leaks

FIND LEAKS FASTER

Detect compressed air leaks up to 10 times faster with sound imaging vs. traditional methods

• Quickly locate leaks and automatically upload, analyze, and classify problems to improve the reliability in production lines
• Locate leaks precisely, even in loud industrial environments, thanks to high-resolution acoustic images and 124 built-in microphones
• Instantly view the leak rate onscreen in real time (l/min or CFM)

REDUCE COSTS, SAVE MONEY

Minimize excess costs that result from compressed-air leaks

• Delay the expense of installing new or additional compressors by maintaining existing ones
• Ensure proper air pressure to pneumatic equipment to save on energy costs
• Quantify leak size to understand how much energy was lost and the amount of money saved by discovering the problem
• Optimize staff time, as minimal training is required to use Si124

INSPECT EASILY

Classify problem severity instantly with this convenient, smart tool

• Validate problems in real time
• Upload, store, and backup data; create reports; and conduct deep analysis using FLIR Acoustic Camera Viewer cloud analytics
• Operate the lightweight camera with one hand, and easily review images on-screen even in bright, outdoor conditions

Several versions available

The FLIR Si124 is available in three versions with different levels of functionality. Current models are as follows:

• Si124 – Partial discharge and compressed air leakage detection
• Si124-LD – Compressed air leakage detection only
• Si124-PD – Partial discharge only
