Fluke 17XX-CLAMP-ADPT-1V – BNC Current Adapter for 17XX Series, 1V
48 people are viewing this product right now
Original price was: $181.48.$154.37Current price is: $154.37.
Shipping calculated at checkout.
Estimated delivery:5 days
17XX BNC Adapter for Clamps 1V
- BNC current adapter allows connection of AC or DC current clamps to 17XX models
- For use for current clamps with output maximum value of 1V AC/DC
- Allows connection to a wider range of current clamps (including measurement of DC current for 177X models)
- Provides the ability to use specialty current clamps
- CAT IV, 600V and CATIII 1,000V rating according to IEC61010-2-30
Guarantee Safe and Secure Payment Checkout
Description
Fluke 17XX-CLAMP-ADPT-1V
- BNC current adapter allows connection of AC or DC current clamps to 17XX models
- For use for current clamps with output maximum value of 1V AC/DC
- Allows connection to a wider range of current clamps (including measurement of DC current for 177X models)
- Provides the ability to use specialty current clamps
- CAT IV, 600V and CATIII 1,000V rating according to IEC61010-2-30
BNC Current Adapter for 17XX Series, 1V

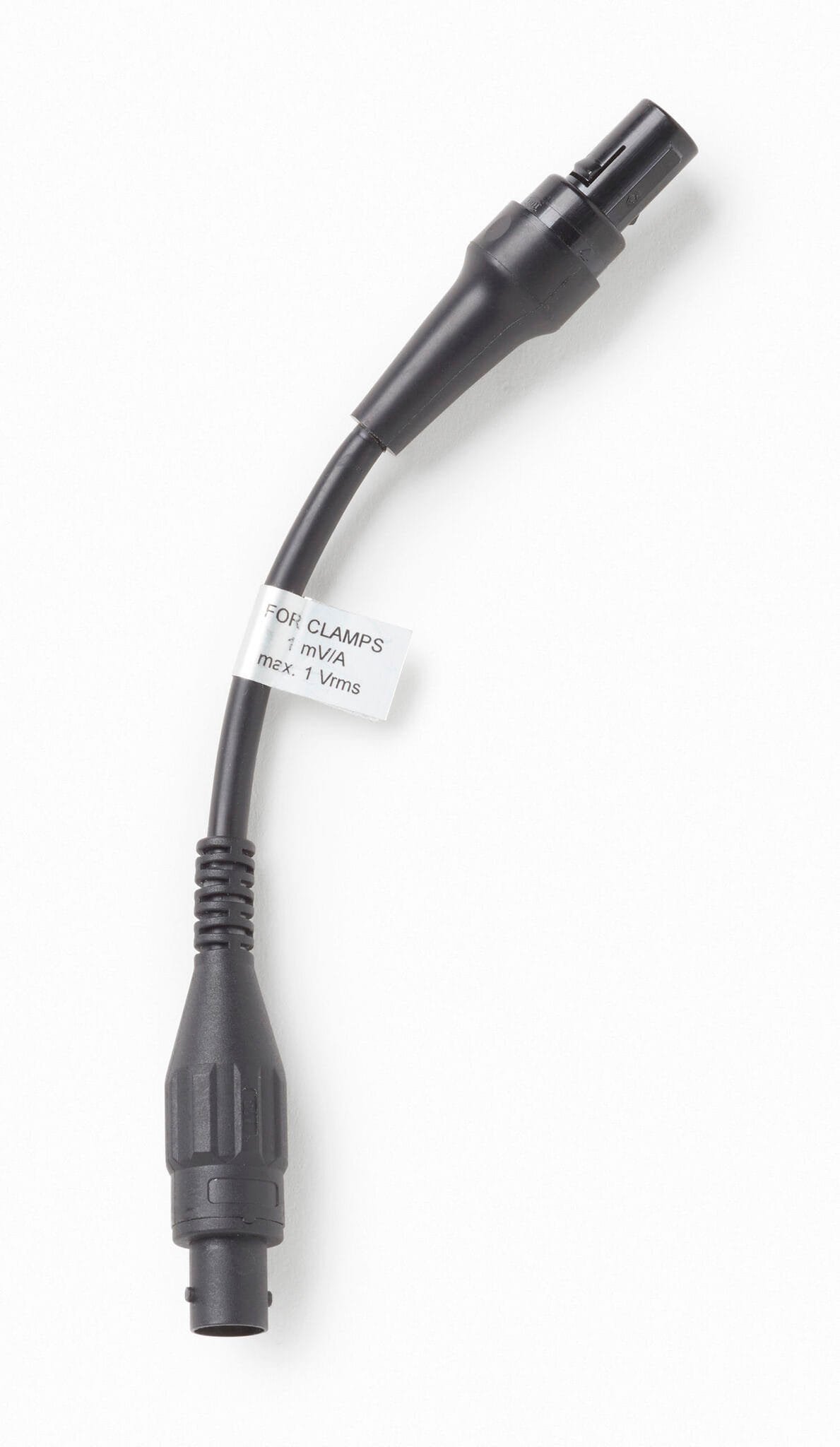

The Fluke 17XX-CLAMP-ADPT-1V is a BNC adapter designed to allow the connection of current clamps to Fluke’s 17XX series products. The adapter consists of a cable with the plug that fits the 17XX product and a female BNC connecter which allows connection to other current clamps with mV/A outputs. The 17XX-CLAMP-ADPT-1V is for use for current clamps with an output maximum value of 1V AC/DC. For current clamps with an output greater than 1V, please see part number 17XX-CLAMP-ADPT-2V8, which has an output maximum of 2.8V.
Please see the following table for details of the supported clamps including ratio settings and the recommended adapter.
| Clamp | Sensitivity | Range | Adapter | Scale Factor | Range |
| i1000s AC | 100 mV/A 10 mV/A 1 mV/A | 0.1A to 10A 0.1A to 100A 1A to 1000A | 1V | 0.01:1 0.1:1 1:1 | Auto |
| i3000s AC | 10 mV/A 1 mV/A 0.1 mV/A | 1A to 30A 1A to 300A 1A to 3000A | 1V | 0.1:1 1:1 10:1 | Auto |
| i310s AC/DC* | 10 mV/A 1 mV/A | 30A300A | 1V | 0.1:1 1:1 | Auto |
| i400s AC | 10 mV/A 1 mV/A | 0.5A to 40A 5A to 400A | 1V | 0.1:1 1:1 | Auto |
| 80i-110s AC/DC* | 100 mV/A 10 mV/A | 0.1A to 10A 0.1A to 100A | 1V | 0.01:1 0.1:1 | Auto |
| 80i-2010s AC/DC* | 1 mV/A | 2000A | 2.8V | 1:1 | Low |
| i200s AC | 10 mV/A | Up to 200A+10% | 2.8V | 0.1:1 | Low |
| i30s AC/DC* | 100 mV/A | Up to 28A+10% DC | 2.8V | 0.01:1 | Low |
| i5s AC | 400 mV/A | 5A | 2.8V | 0.0025:1 | Low |
*DC is only supported by the 177X PQ Analyzers
Product General Attributes | |
|---|---|
| Shipping Weight | 0.17 LBS |
| Shipping Height | 1.4 IN |
| Shipping Length | 7.44 IN |
| Shipping Width | 4.6 IN |
You must be logged in to post a review.
| Weight | 0.17 lbs |
|---|
