Fluke 5606-50-G Full Immersion PRT Probe, Golden Pins

200 C to 160 C Full Immersion PRT Probe, Golden Pins

The Fluke Calibration 5606-50-G -200 °C to 160 °C Full Immersion PRT Probe, Golden Pins is designed to perform in extreme environments where both the transition junction and the lead wires are required to withstand temperatures covering the entire operating range of the probe. (Immersion in this case simply means exposure to temperatures other than ambient and does not necessarily refer to the medium to which the PRT and its components are subjected.)

Applications where full immersion of probe, transition junction, and lead wire is required can include calibration or validation of sensors used in laboratory or bio freezers, walk-in refrigerators, autoclaves, ovens, stability test chambers, furnaces or incubators. Other applications might include IQ/OQ/PQ qualification procedures, temperature mapping, or data logging in temperature controlled spaces or environmental chambers.

The Fluke Hart 5606-50-G is just two inches (50 mm) in length with a sheath diameter of 1/8 inch (3.1 mm). Since it can be fully immersed over its entire temperature range, you don’t have to worry about calculating minimum immersion depth immerse the entire probe, transition junction, and lead wires, in either non-corrosive liquids or dry mediums ranging from -200 to 160 °C.

The 100 Ω precision sensing element (alpha = 0.00385) is specially constructed to prevent the ingress of moisture while achieving calibration accuracies as good as +/-0.05 °C. You get both accuracy and flexibility built into a small, durable package.

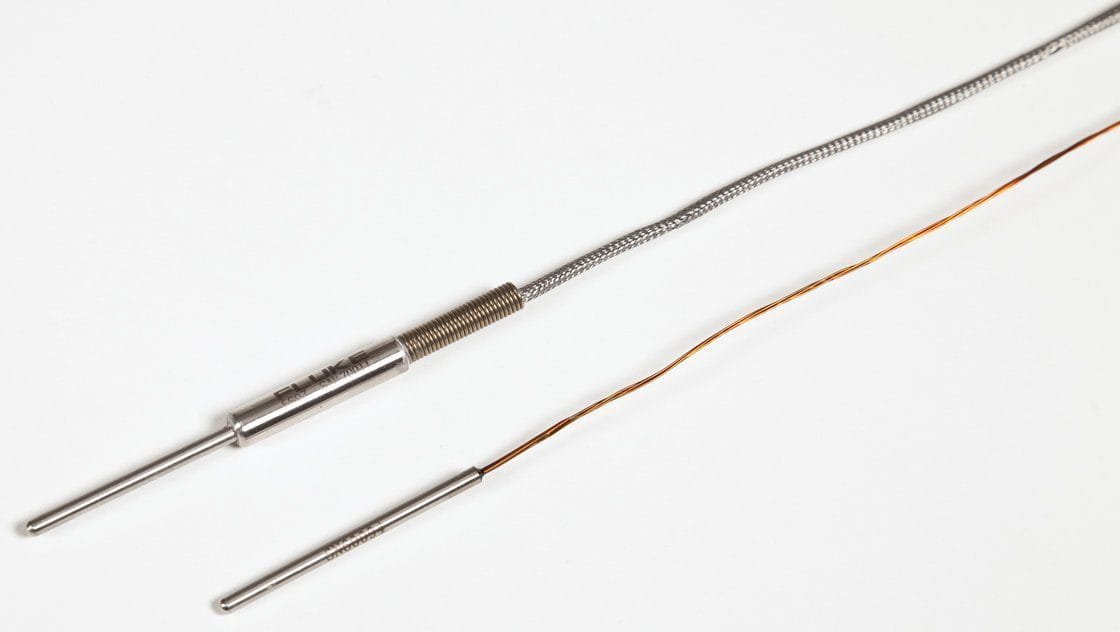

The lead wires of the Fluke Calibration 5606-50-G are made of single-conductor enameled copper wire which prevents moisture from wicking to the sensing element as it would if a more common, stranded lead wire were used. The diameter of the lead wire is no greater than 0.2 mm, making it easy to run lead wires through a freezer door to your readout or transmitter with effectively zero energy loss. The Hart 5606-50-G has been proven in common heat transfer fluids such as silicone oil, mineral oil, ethanol, and even liquid nitrogen with no degradation of the transition junction seal or lead wire insulation.
