Fluke 9102S-156 HDRC Handheld Dry-Well
32 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Mid-Range Portable Field Dry Well Calibrator, –10 to 122 deg C (14 to 252 deg F)
- Smallest dry-wells in the world
- Ranges from –10 to 122 deg C (14 to 252 deg F)
- Accuracy to ±0.25°C, stability of ±0.05°C at 0°C
- RS-232 interface with 9930 Interface-it v3.81 software
Guarantee Safe and Secure Payment Checkout
Description

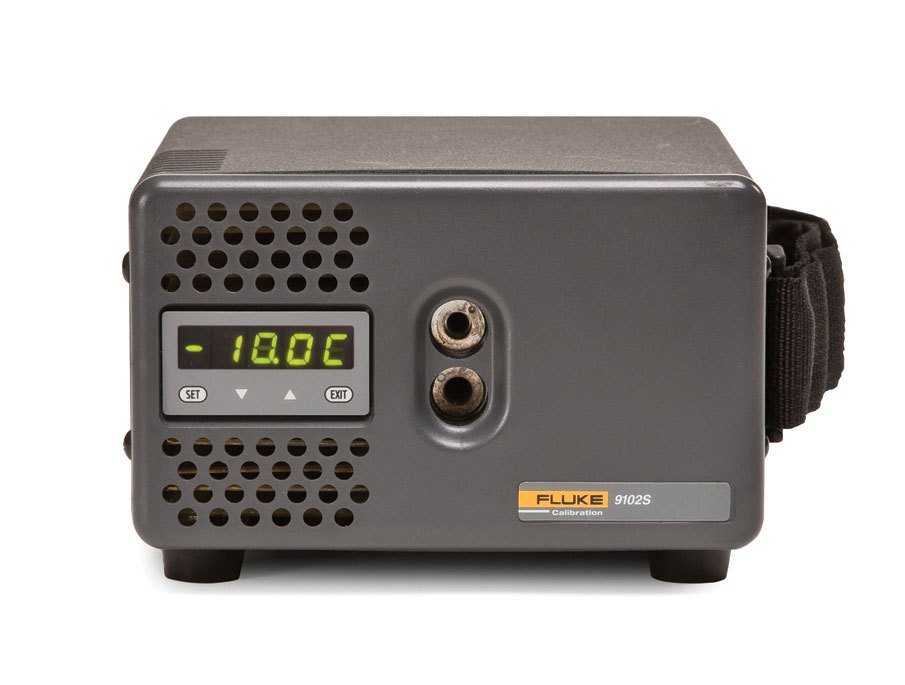

Fluke 9102S-156 HDRC Handheld Dry-Well
- Mid-Range Portable Field Dry Well Calibrator
- -10 to 122 deg C (14 to 252 deg F)
- Smallest dry-wells in the world
- Ranges from -10 to 122 deg C (14 to 252 deg F)
- Accuracy to ±0.25°C, stability of ±0.05°C at 0°C
- RS-232 interface with 9930 Interface-it v3.81 software
This dry-well is only four inches high and six inches wide, achieves temperatures as low as -10°C, includes a NIST-traceable calibration, and is stable to ±0.05°C. The Model 9102S is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.
The 9102S has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size. The 9102S also has a battery pack option that gives you approximately four hours of field use when AC power is unavailable.
Calibration Baths | |
|---|---|
| Type | Dry |
| Min Temp (Calibration Baths) | -10 C |
| Max Temp (Calibration Baths) | 122 C |
| Accuracy (Calibration Baths) | 0.25 C |
| Voltage (Calibration Baths) | 115 / 220 VAC, 115 VAC, 220 VAC |
| Special Features (Calibration Baths) | Inserts Available (Dry Baths), PC Software |
Product General Attributes | |

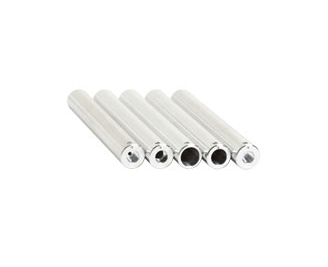

| Unique Features | Dual Well Design. The block is designed to accept temperature sensors up to 1/2” (12.7 mm) in diameter. The wells can be made to accept probes of smaller than 1/2” (12.7 mm) diameter by using inserts. Two inserts included: 3102-3 Insert, 2 x 3/16” 3102-4 Insert, 2 x 1/4” |
| Product Height | 6.50 IN |
| Product Length | 15.25 IN |
| Product Width | 11.50 IN |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Country of Origin | United States |
| Shipping Height | 6.50 IN |
| Shipping Length | 15.25 IN |
| Shipping Width | 11.50 IN |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 15.25 × 11.5 × 6.5 in |
|---|
