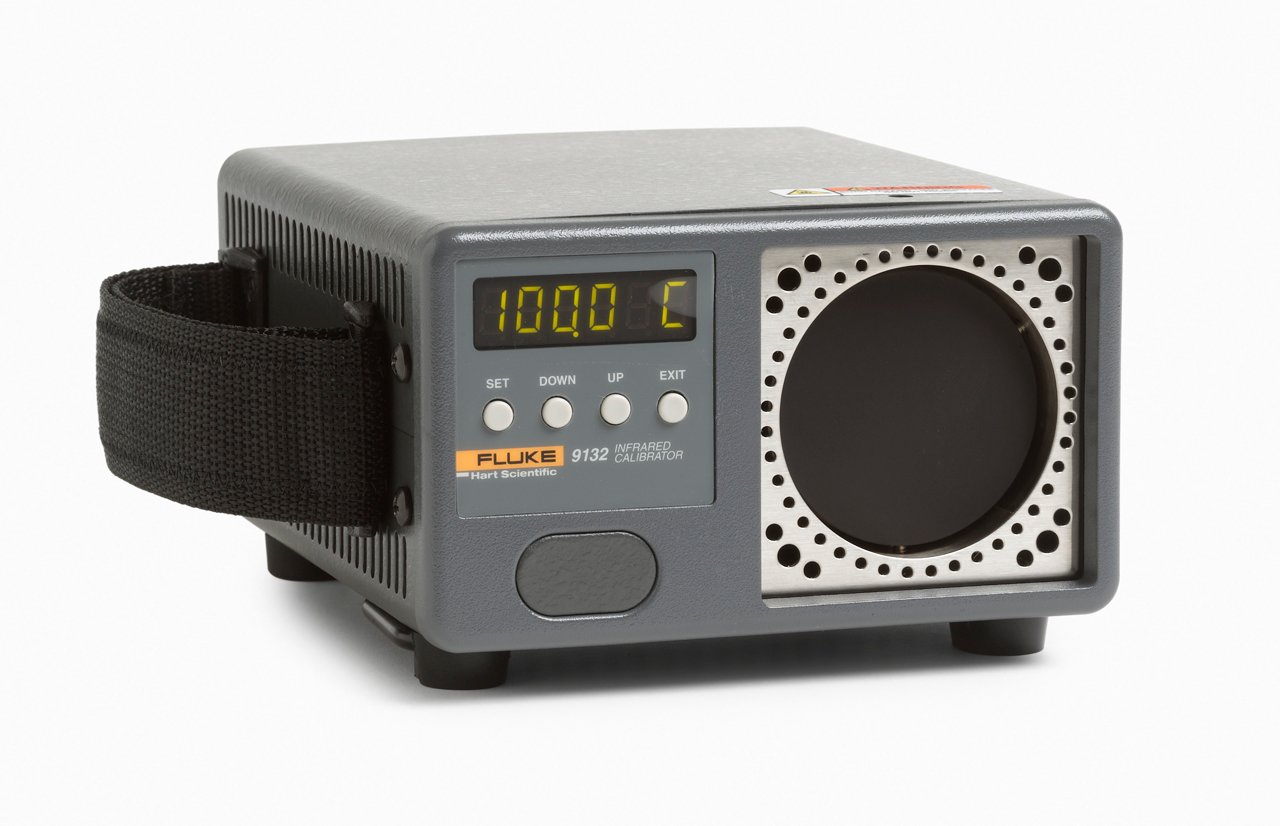

Fluke 9132-156 Portable IR Calibrator, 50 to 500 °C

Fluke 9132-156 Portable IR Calibrator, 50 to 500 °C

Precision when you need it for infrared temperature calibration

Whether you’re using in-line or handheld infrared pyrometers, you need good calibration standards to verify their accuracy. Our portable IR calibrators provide stable blackbody targets for calibrating noncontact IR thermometers from –30 °C to 500 °C.

These blackbody calibrator units feature a temperature controlled measurement surface with a diameter of 2.25 in (57 mm). The target temperature can be controlled in set-point increments of 0.1° from –30 °C to 500 °C and a well is located directly behind the blackbody surface for contact calibration.

9132: blackbody calibration up to 500 °C

For IR calibrations above normal ambient, the 9132 blackbody calibration source provides a stable measurement surface up to 500 °C (932 °F). Short heating and cooling times mean you won’t have to wait long to get your work done.
