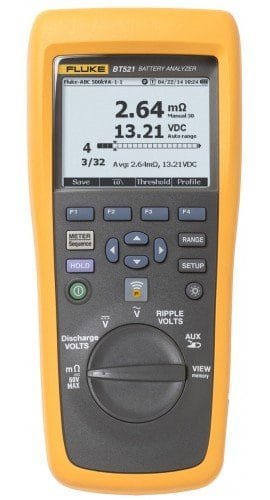

Fluke BT521ANG-LTE – Advanced Battery Analyzer, with Angled Test Probes
45 people are viewing this product right now
$6,712.99
Shipping calculated at checkout.
Estimated delivery:5 days
W/ONLY ANGLE PROBES, NO TEMPERATURE
- Advanced Battery Analyzer with Angled Test Probes sets (no temperature sensor)
- Optimized user interface: Quick, guided setup ensures you’re capturing the right data every time, and the combined visual and audio feedback cues reduce the risk of measurement confusion.
- Threshold comparison: Configure multiple reference values and thresholds for resistance and voltage. Comparison result feedback after each measurement via visual and verbal cues.
- Ergonomic test leads: Rugged coaxial two pole kelvin test pins with remote SAVE button reduce test time and increase efficiency.
- Intercell strap resistance test and data management: Measures the resistance of theintercell connection between batteries in a string.
- Test probe extenders: Long reach, straight and angled probes for double stacked cells.
- Intelligent test probe set (BT520 and BT521): Integrated LCD display, infrared temperature measurement (BT521 only with BTL21 test probe), verbal audio feedback and captures voltage readings and temperature logging automatically or via integrated save button.
- Enhanced data analysis: Quickly compare trends, analyze results and create reports with included battery management software.
- Easy reporting: Generate PDF report on the PC software with analysis graphics: and data table or quick email format report with csv file on the mobile app.
- Wireless communication: For data download and remote display while measuring. Browse and email measurement data via iOS app.
- Battery life: 7.4 V 3000 mAh lithium-ion battery for more than eight hours continuous operation.
- USB port: For fast data download to supplied data analysis and report management application software.
- Highest safety rating in the industry: CAT III 600 V, 1000 V dc max. rated for safe measurements all around the battery power supply equipment.
Guarantee Safe and Secure Payment Checkout
Description
Fluke BT521ANG-LTE – Advanced Battery Analyzer, with Angled Test Probes
- Optimized user interface
- Threshold comparison
- Intercell strap resistance test and data management:
- Test probe extenders
- Intelligent test probe set (BT520 and BT521)

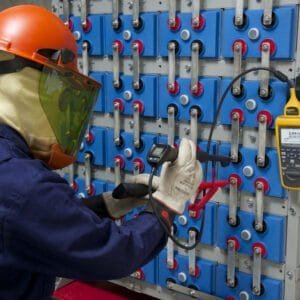

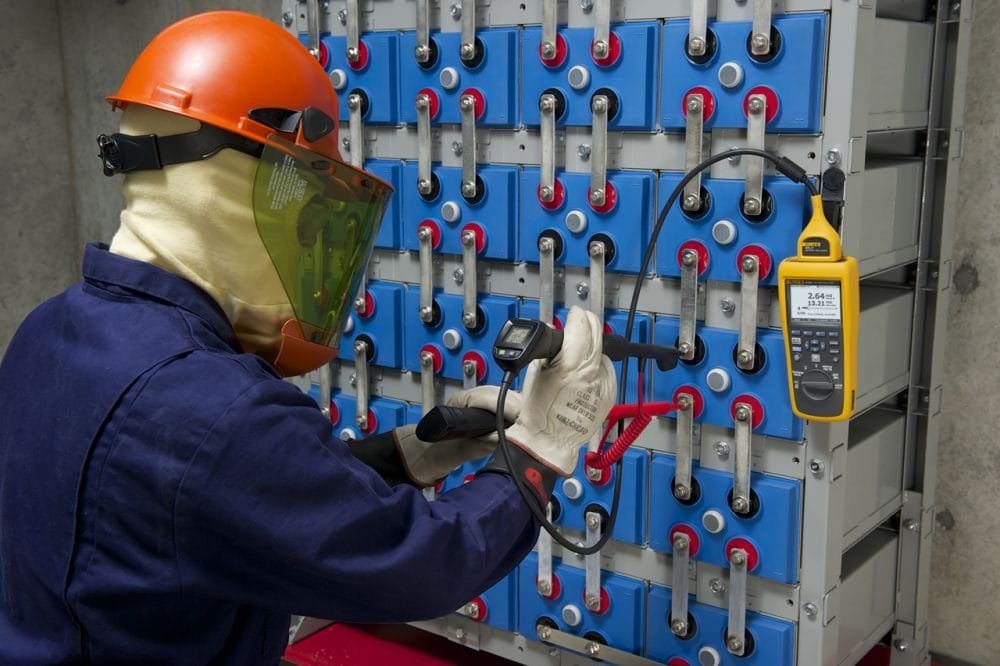

The Fluke 500 Series Battery Analyzer is ideal test tool for maintenance, troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery backup applications. The intuitive user interface, compact design and rugged construction ensure optimum performance, test results and reliability. Fluke 500 Series Battery Analyzers cover a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using an automated string function testing and the test probe integrated infra-red temperature measurement system. 500 Series Battery Analyzers are designed for measurements on stationary batteries of all types.

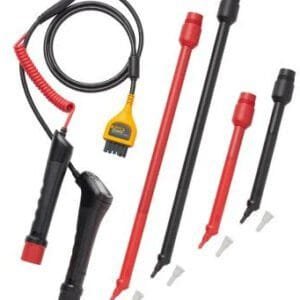

Fluke Angled Probe for the BT500 Series Battery Analyzer
Complete your battery maintenance routine with new angled probes and extenders to get a reliable connection every time with minimal effort, saving you time.
Based on user feedback the Fluke BT500 series battery analyzer probes have been significantly improved. We’ve moved some of the probe connections to a better location*, so you can make measurements without getting tangled. Plus, the angled the tips so you can get into the narrow cabinet spaces.
The angled probe continues the Fluke tradition of keeping you safe on the job at a CAT II 1000V and CAT III 600V rating while simultaneously being rugged.
The BT520ANG and BT521ANG has everything the original BT520 and BT521 including the straight and angled probes.
Fluke Battery Management software
Fluke Battery Management Software allows you to quickly and easily import data from the battery analyzer to a PC. The measurement data and battery profile information is stored and archived with the Management Software and can be used compare results, switch results between conductance and resistance (requires Software Management software version 1.0.69 or later) readings and perform trend analysis. All measurement data, battery profile and analysis information can be used to easily generate reports.
Historical trend data of batteries.
Histogram of a battery string with user defined threshold.
- Quick view saved readings
- Profile management
- Histogram of a battery string with end user defined threshold
- Historical trend data of batteries
- Multiple rounds of discharge voltage
- Quick Report Generation
- Upgrade Fluke Battery Analyzer firmware
- Switch measurement results between conductance and resistance readings
Fluke Battery Analyze mobile app
The BT521 offers wireless communication for data download and remote display while measuring via the dedicated Fluke Battery Analyzer mobile app. Using the Fluke Battery Analyze mobile app you can:
- Browse profile
- Review sequence testing data
- E-mail sequence testing data
View measurement profile.
View and email measurement data.
Product General Attributes | |
|---|---|
| Safety Approval | RoHS |
| Interfaces I/O | USB |
| IP Rating | IP40 |
