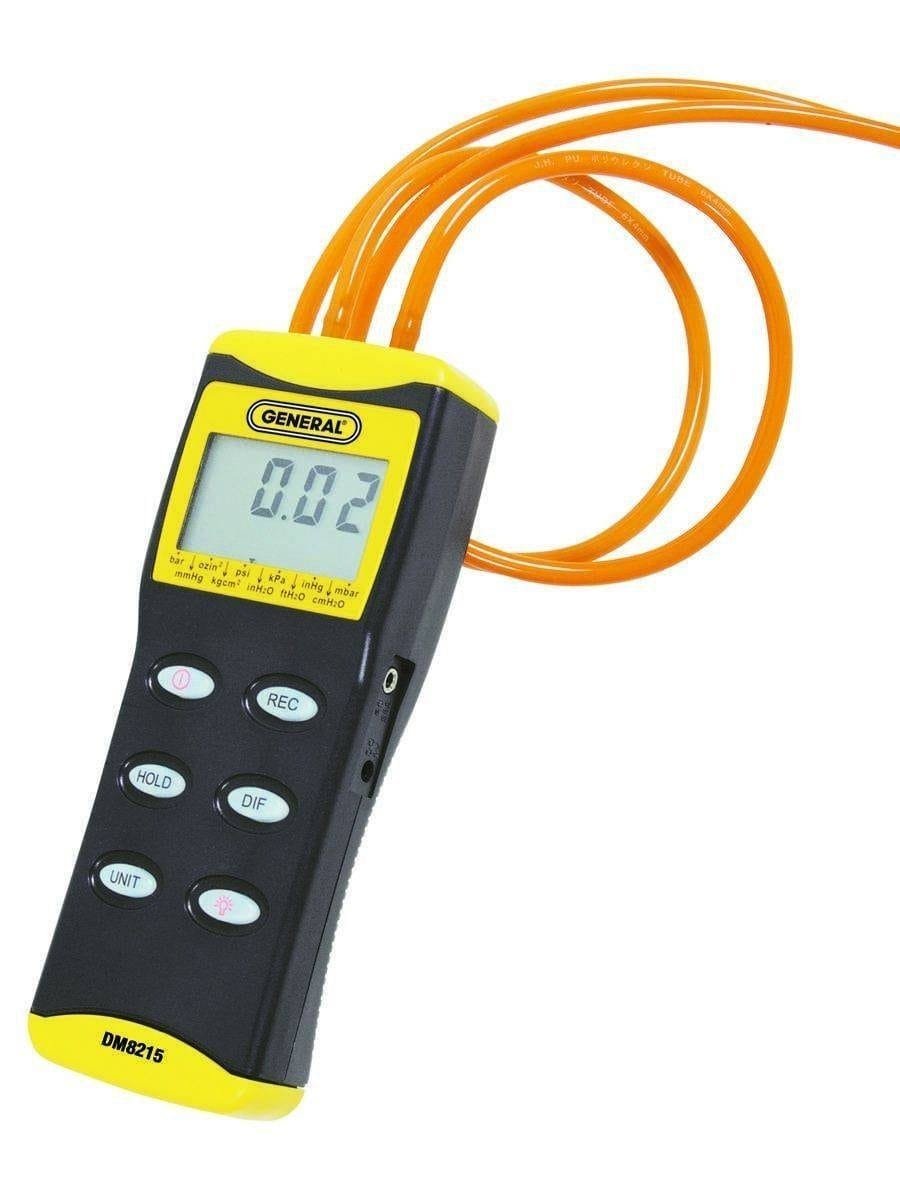

General Tools DM8215 – Precision Digital Manometer, 36″ Tubing, 0 to 15 PSI
11 people are viewing this product right now
Original price was: $203.19.$163.86Current price is: $163.86.
Shipping calculated at checkout.
Estimated delivery:3 days
General DM8215 DIGITAL MANOMETER WITH 36″ TUBING; 0 TO 15 PSI
- Measurement range/resolution: 0 to 15 psi/0.01 psi
- Measurement accuracy: ±0.3% of full-scale value
- Response time: 0.5 seconds
- Dimensions of connection hoses: 39 in. (1m) long, with 0.16 in. (4mm) I.D. and 0.24 in. (6mm) O.D.
- Auto power off: After 20 minutes of inactivity
- Operating temperature: 32° to 122°F (0° to 50°C) @ <80% RH
- Weight: 7.6 oz. (215g)
- Power source: “9V” battery (included) or optional #Z110VADPT 9V AC adaptor
- Combined Accuracy: ±1% of full scale
Guarantee Safe and Secure Payment Checkout
Description
General Tools DM8215
- Measurement range/resolution: 0 to 15 psi/0.01 psi
- Measurement accuracy: ±0.3% of full-scale value
- Response time: 0.5 seconds
- Dimensions of connection hoses: 39 in. (1m) long, with 0.16 in. (4mm) I.D. and 0.24 in. (6mm) O.D.
- Auto power off: After 20 minutes of inactivity
Precision Digital Manometer, 36″ Tubing, 0 to 15 PSI
General Tools DM8215 is optimized for applications in which gauge or differential pressure ranges from 0 to 15 psi. Its resolution of 0.01 psi is sufficient for measuring gas pressure in HVAC/R systems with ±0.3% accuracy.
HVAC Equipment and Instruments/Manometer Template | |
|---|---|
| Type (Manometer) | Digital |
| Max Pressure | 15 psi (415.20 IN of H2O) |
| Type of Input | Single |
| Engineering Units (HVAC) | inch H2O, inch Hg, kPa, mmHg, psi Engineering Units (HVAC) bar, ozin2, kPa, ftH2O, inHg, cmH2O & mbar |
| Measurement | Differential, Gauge |
| Min/Max/Hold | Yes |
| Pressure and Leak Test Option | Yes |
| Anemometer Capability | No |
| Altitude Capability | No |
Product General Attributes | |
| Unique Features | Digital display of gauge or differential pressure Bright backlight Data hold & record features, Select from one of 11 pressure units of measure:psi,inH2O,bar, mmHg,ozin2,kgcm2,kPa, ftH2O,inHg,cmH2O,mbar. Min/max button Simple fittings for hose connection Ideal for medical equipment, computer peripherals, pneumatic controls, HVAC and more Auto power off & low battery indicator. |
| Warranty | 1 YEARS |
| Safety Approval | CE, RoHS |
| Interfaces I/O | RS-232 |
| Product Weight | 7.8 OUNCES (0.488 LBS) Product Weight 220gr |
| Product Height | 1.2 IN |
| Product Length | 7.2 IN Product Length 182 x 72 x 30mm |
| Product Width | 2.8 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9026.20.8000 |
| ECCN Number | 3A992 |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
