Global Specialties DL-020 – Sequential Logic Trainer

• 62-page lab manual with 12 hands-on labs
• Experiments using standard TTL logic

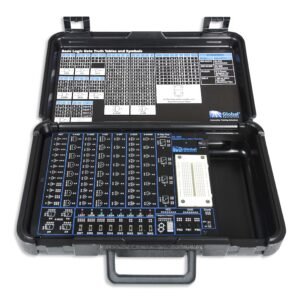

• Rugged, lightweight, blow-molded carrying case

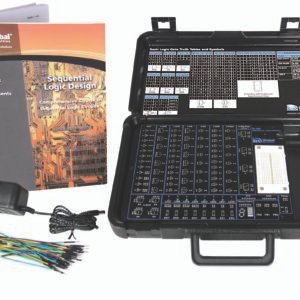

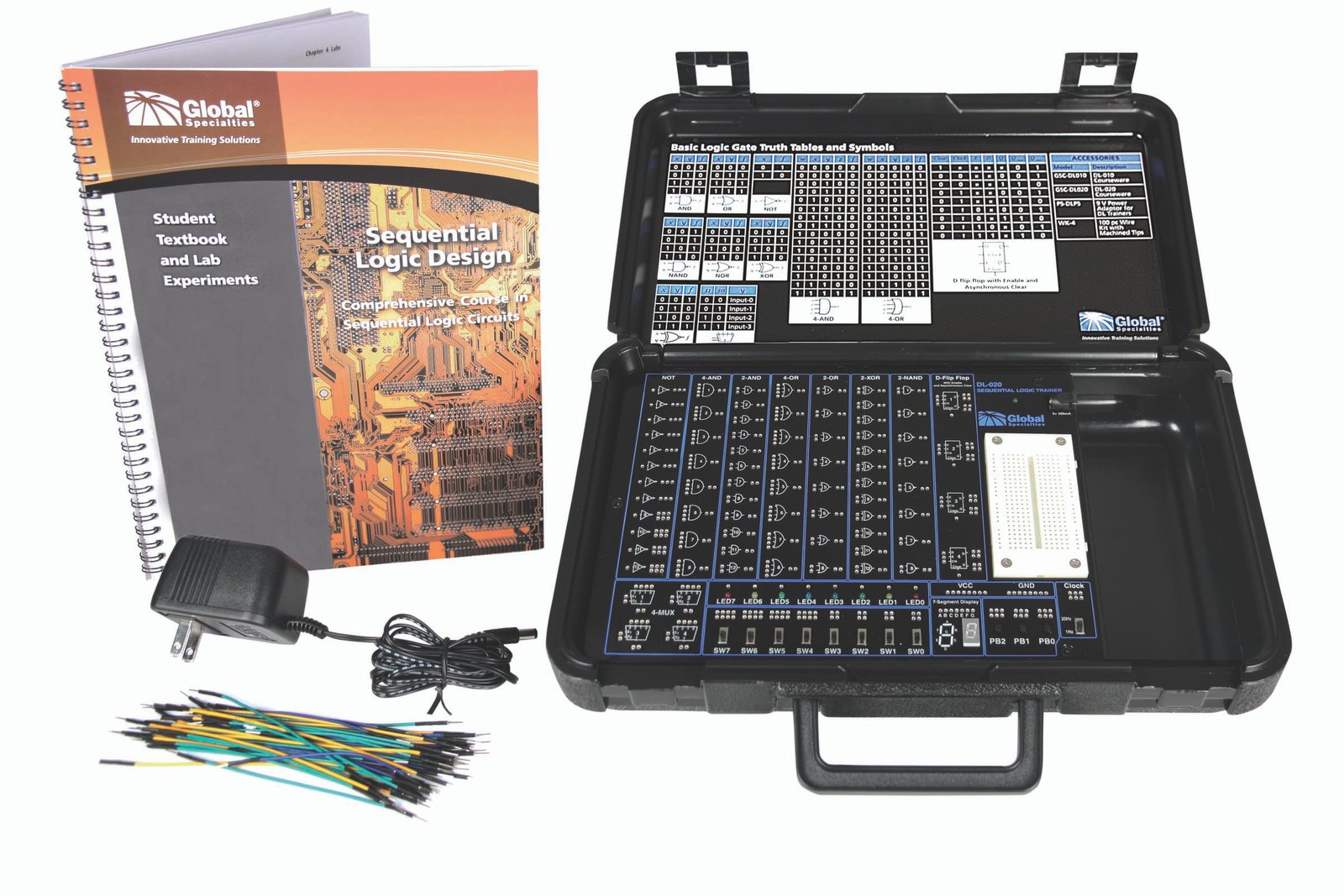

• Complete kit with 9 V wall adapter and 100 machined-pin hookup wires
• 3 Years Warranty

Global Specialties’ DL-020 is the second model in its series of embedded systems design trainers. The DL-020 teaches students the advanced concepts of sequential digital logic design, which is an essential step toward understanding microprocessor and microcontroller Logic.

With the DL-020, all necessary logic components are included and pre-mounted for fast, easy implementation of sequential circuits that are used as the building blocks of microprocessors. These sequential circuits include the SR latch, D latch, register, memory, finite state machine (FSM), and several real-life controller examples.

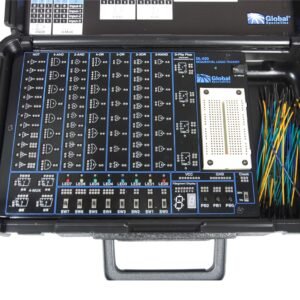

Global Specialties’ logic trainer simplifies the teaching process by eliminating the need to discretely wire IC’s as all gate elements are pre-mounted, de-coupled, and de-bounced, ready for immediate classroom use. Students can spend their time directly on logic training.

Most importantly, the trainer includes a 62- page professionally written training manual featuring an overview of sequential digital logic and 12 corresponding hands-on labs enhancing any textbook currently in use.

The DL-020 is a complete and ruggedly packed trainer that will provide a solid learning platform to individuals and classroom students.
