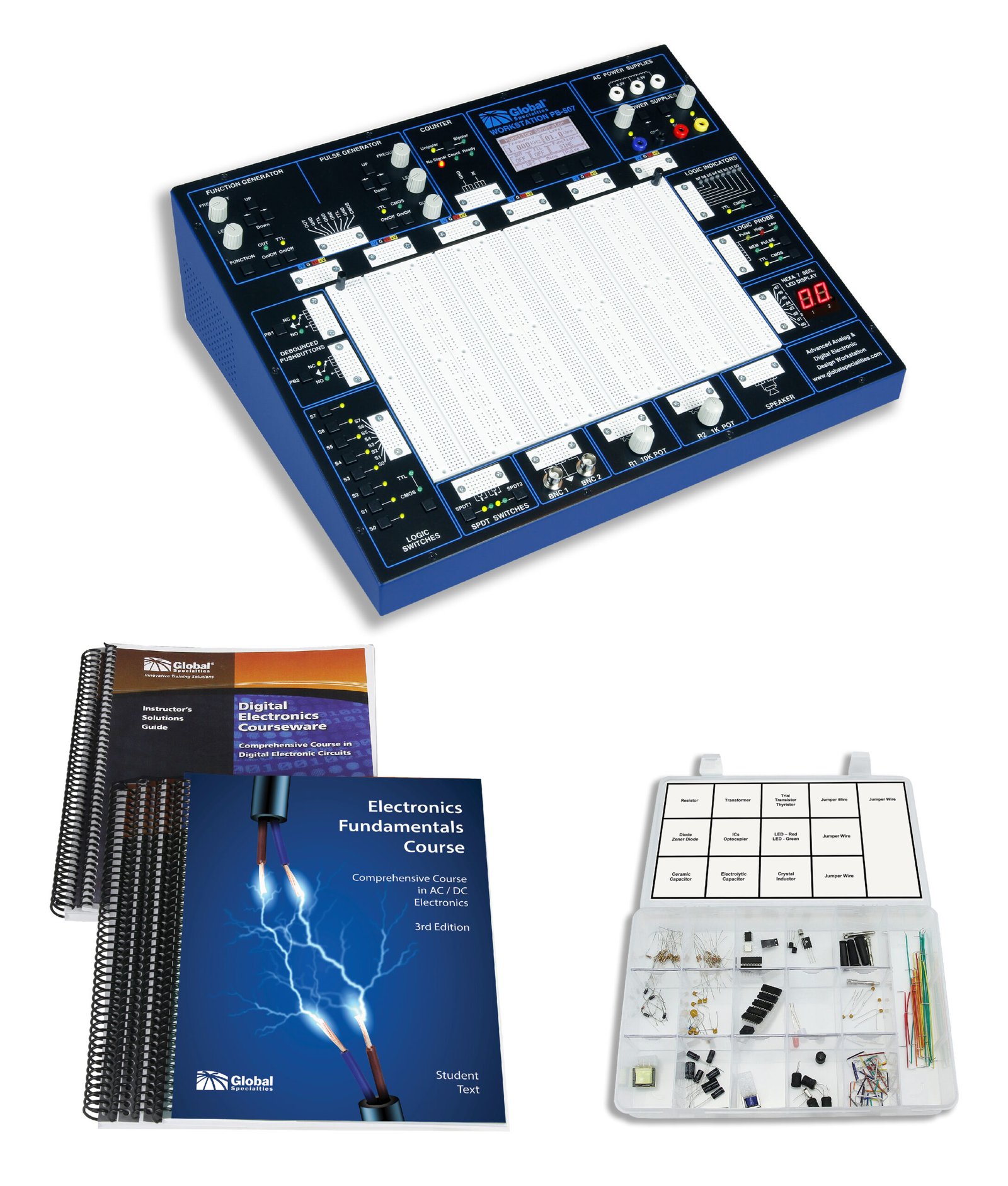

Global Specialties PB-507ALAB – Plus Courseware and Kit

• LCD displays the settings from each active module
• Flush-mounted, removable circuit breadboard with over 4,100 contact points
• Frequency Counter module reports on the output of your own specially designed circuits
• Draw power from banana plug connections or the tie-point power supplies above each breadboard bus strip
• USB connection enables viewing and controlling from a PC

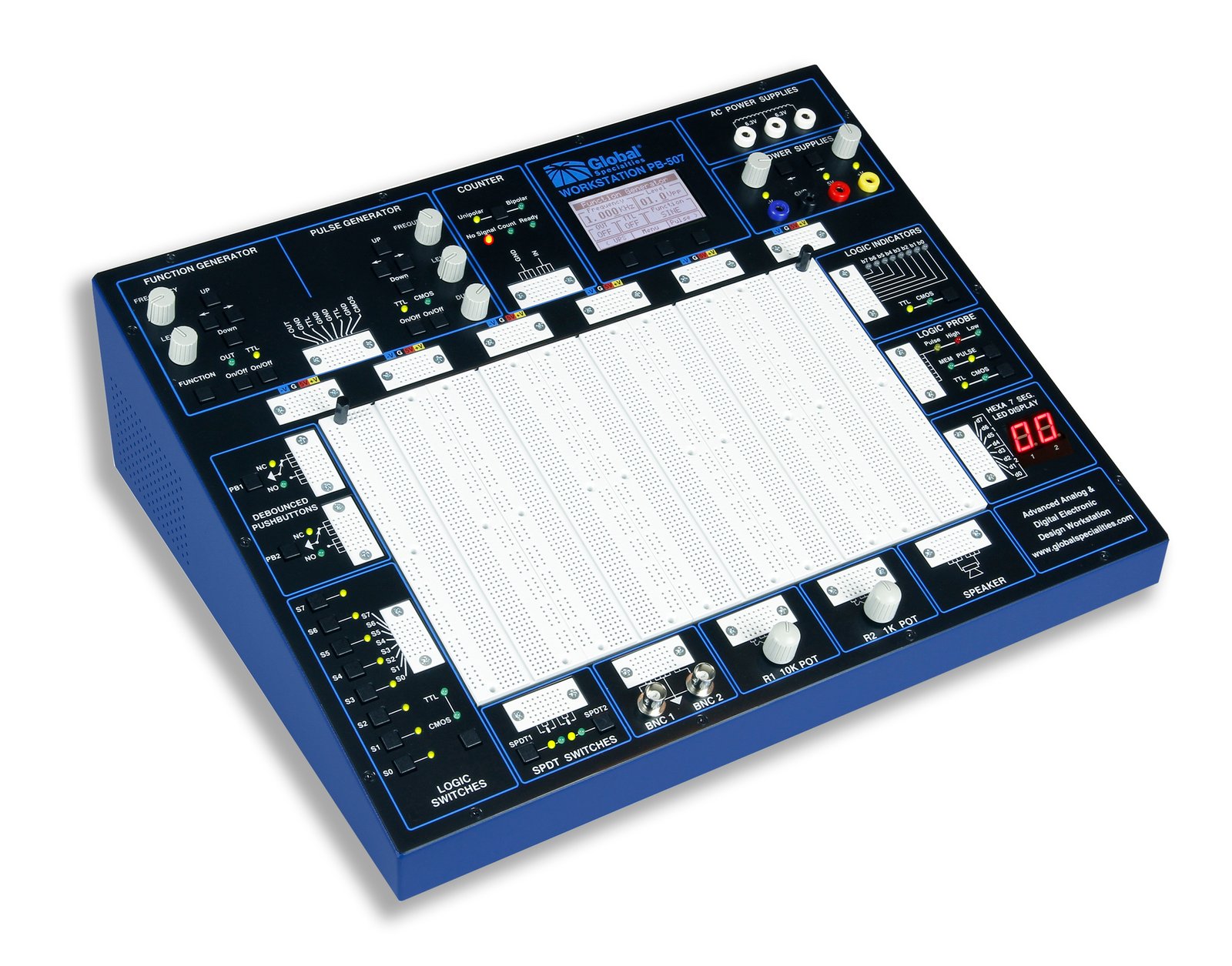

The PB-507 Advanced Analog & Digital Electronic Design Workstation is a powerful, versatile tool for circuit designers, engineers, technicians, students, and hobbyists. All digital controls, USB ports, and a wide choice of built-in circuit accessories allow rapid and accurate construction of virtually any type of analog or digital circuit.

New on the PB-507 is an LCD that displays the settings for the active module selected. Simply touch a control element and the LCD switches to that module and displays its settings. Use the USB connection on the PB-507 to control or view the module’s values from a PC. Using this feature you can project the controls to a large viewing screen for a classroom to observe and follow.

The breadboard area is the largest in our trainer family and is removable for easy replacement.

The PB-507 is designed to withstand the toughest treatment. It is constructed with the highest quality components for many years of reliable service. The all-digital circuitry allows for easy function verification and calibration.
