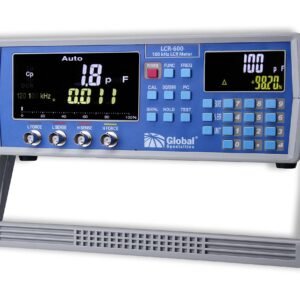

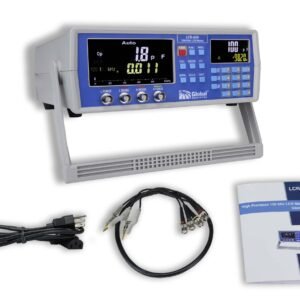

Global Specialties LCR-600 – 100 kHz High Precision LCR Meter
13 people are viewing this product right now
Original price was: $1,276.00.$1,084.60Current price is: $1,084.60.
Shipping calculated at checkout.
Estimated delivery:5 days
100 kHz High Precision LCR Meter
- Frequency range: 100 Hz to 100 kHz
- Measures: Ls, Lp, Cs, Cp, Rs, Rp, D, Q,
- Auto range
- Sorting function
- Open circuit compensation
- Short circuit compensation
- Basic accuracy of 0.3%
- Two displays
- Display hold
- Two-year Warranty
Guarantee Safe and Secure Payment Checkout
Description

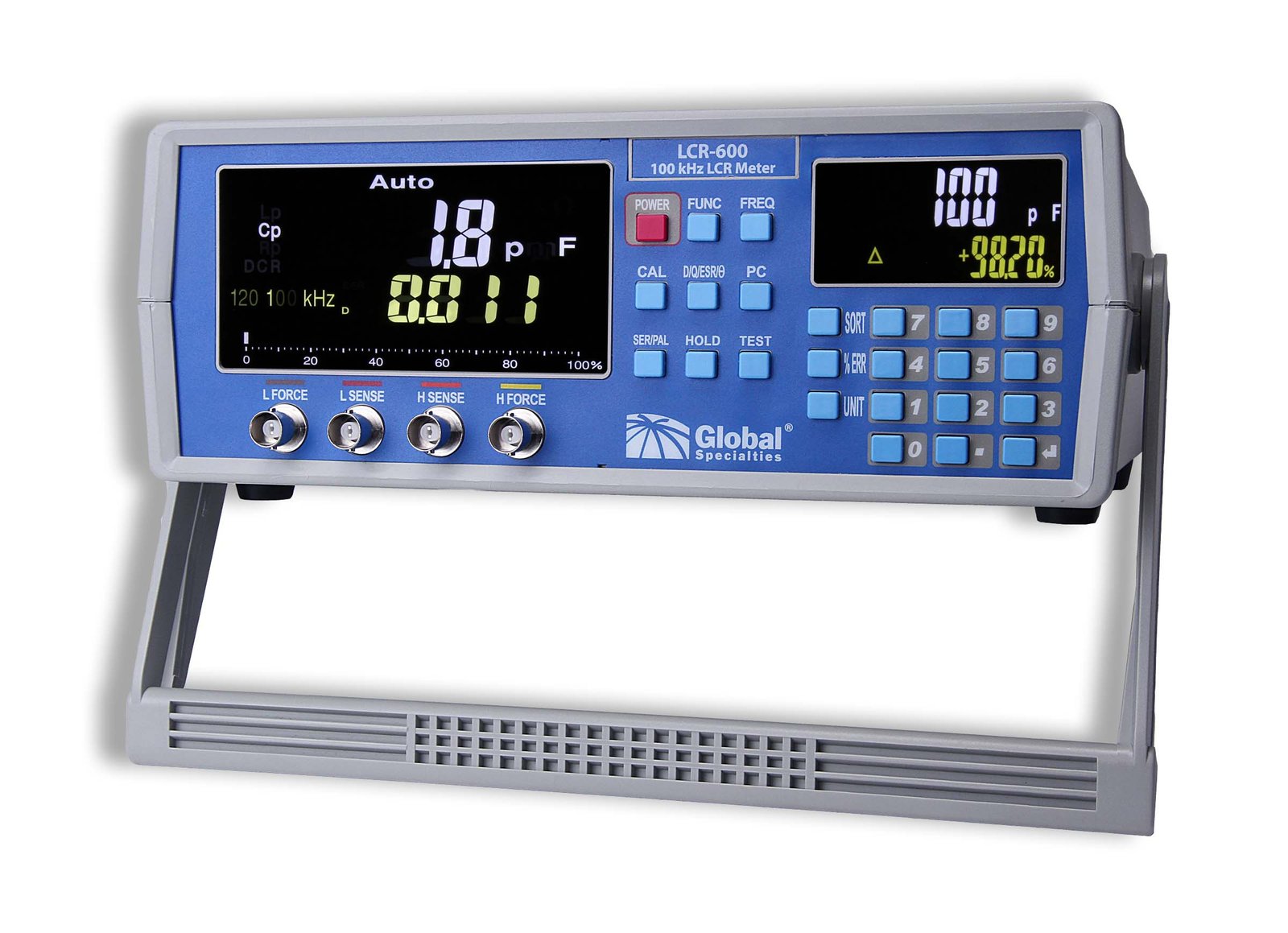

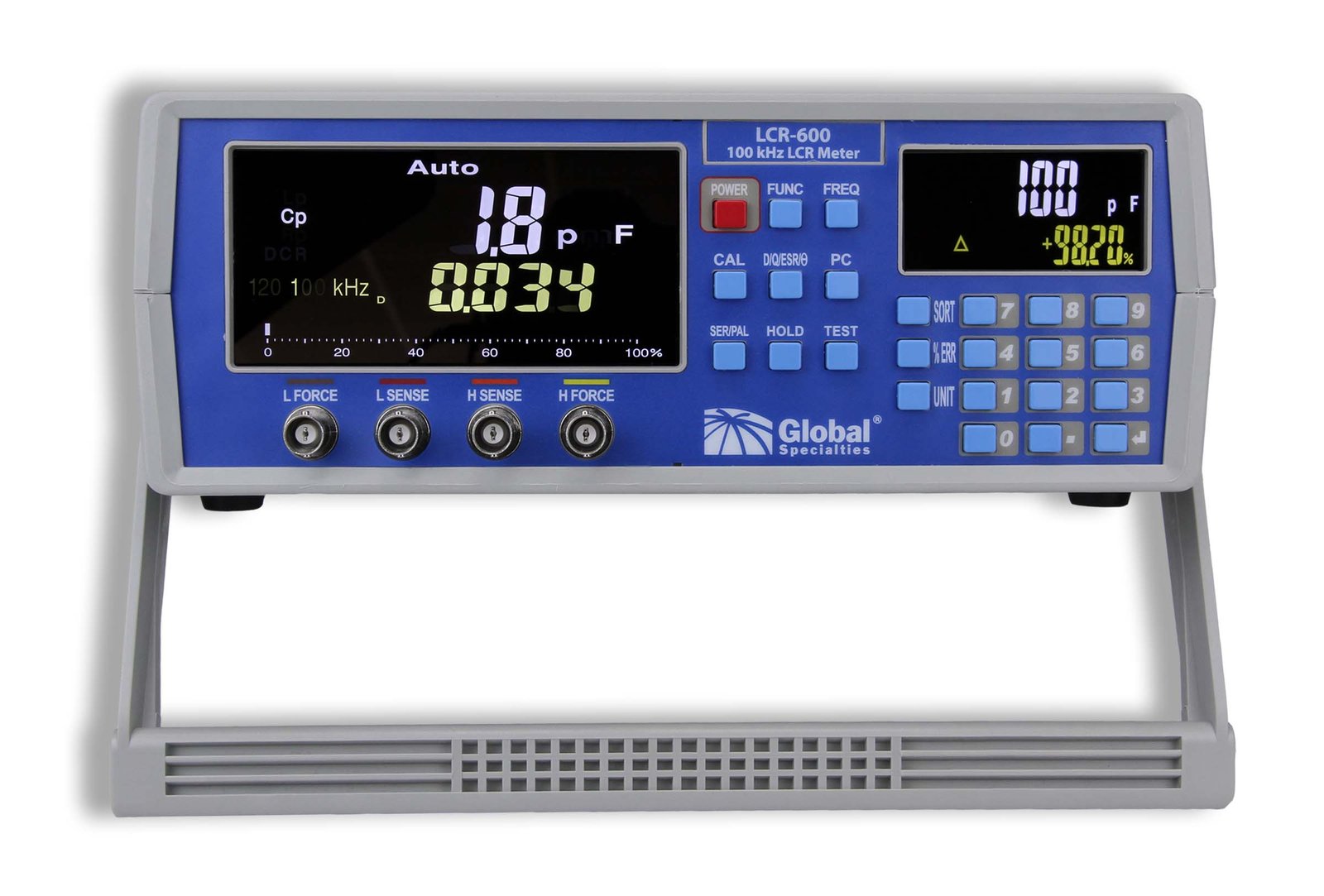

Global Specialties LCR-600
- Frequency range: 100 Hz to 100 kHz
- Auto Range
- Auto-Detect
- Sorting Function
- Open circuit compensation
100 kHz High Precision LCR Meter
The LCR-600 is a high-precision test instrument used for measuring the inductance (L), capacitance (C), and resistance (R) of an electrical component.
Use the LCR-600 to:
- Check ESR values of capacitors and inductors
- Sort and/or select components
- Measures unmarked and unknown components
- Measure capacitance, inductance, or resistance of cables, switches, circuit board foils, etc.
LCR Meters / Impedance Measurement Products /LCR Meters Template | |
|---|---|
| Type | Benchtop |
| Max Test Frequency | 100 kHz |
| Measurements Parameters | Dissipation Factor (D), Impedance (Z), Quality Factor (Q) |
Product General Attributes | |
| Warranty | 2 YEARS |
| Product Weight | 5.10 LBS |
| Product Height | 4 IN |
| Product Length | 12 IN |
| Product Width | 10 IN |
| Shipping Weight | 7 LBS |
| HTS/Schedule B Number | 9030.89.0100 |
| ECCN Number | EAR99 |
| Power Supply Voltage | 115V |
| Country of Origin | Taiwan |
| Shipping Height | 6 IN |
| UPC | 849947000519 |
| Shipping Length | 15 IN |
| Shipping Width | 12 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 5.1 lbs |
|---|---|
| Dimensions | 12 × 10 × 4 in |
